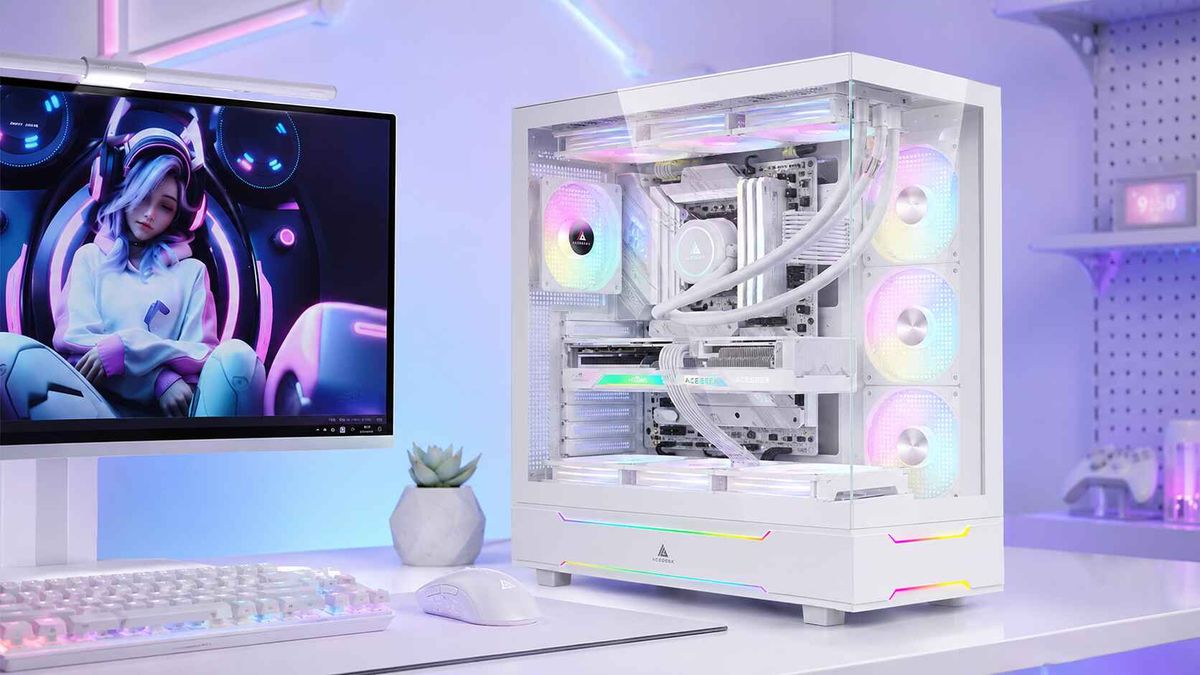

White PC Case Build Guide: Matching Parts and Cleaning Tips

A white PC case exposes mismatched plastics, cream-colored cables, blue-white LEDs, dusty filters, fingerprints, cable gaps, and every component selected because it looked “close enough” on a product page rather than because it worked as part of a complete visual and thermal system.

So why do so many white PC builds still begin with the graphics card?

The case should come first. It establishes the dominant shade, available space, cooling layout, cable-routing options, and amount of hardware visible through the side panel. Everything else should be selected around that reference point.

That is the hard truth: an all-white gaming PC is not created by buying the maximum number of white parts. It is created by controlling contrast.

A White PC Build Is a System, Not a Shopping Theme

“White” is not one standardized color.

Powder-coated steel may appear neutral white. Injection-molded ABS can look warmer. An anodized aluminum panel may appear slightly gray. White braided cables can lean cream-colored, while RGB fans set to maximum white often produce a visible blue or purple cast.

The difference becomes more obvious under daylight, warm room lighting, or a tempered-glass panel.

This is partly why white components can cost more. ACEGEEK’s analysis of the industry’s so-called

 explains how coating coverage, contamination control, smaller production volumes, quality inspection, and inventory risk can raise manufacturing costs.

But paying more does not guarantee a better match.

I would rather use a controlled two-tone scheme—white chassis, white cooling hardware, black motherboard and GPU details—than force together five visibly different whites. Intentional contrast looks designed. Accidental contrast looks unfinished.

Use the PC case as the dominant reference because it occupies the largest visible area. Then choose one of three strategies:

The second option is usually the smartest. Black connector housings, motherboard sockets, fan cables, screws, and PCB sections are difficult to eliminate completely. Treating them as deliberate contrast prevents a pointless search for impossible color uniformity.

Choose the White PC Case Before Matching the Parts

The best white PC case for gaming is not automatically the whitest case in the catalog.

Start with physical compatibility. Check motherboard format, graphics-card length, graphics-card thickness, CPU cooler height, radiator position, fan support, PSU length, storage mounts, front I/O, and cable space behind the motherboard tray.

 to compare ATX, M-ATX, ITX, E-ATX, 240 mm AIO, and 360 mm AIO options before choosing by appearance alone.

 supports M-ATX and ITX motherboards, graphics cards up to 400 mm, CPU coolers up to 165 mm, and top-mounted 360 mm or 280 mm liquid cooling. Its back-connect layout also helps remove motherboard power and I/O cables from the main viewing chamber.

 takes a larger approach. It supports E-ATX, ATX, M-ATX, and ITX motherboards, a 410 mm graphics card, a 165 mm CPU cooler, a top-mounted 360 mm radiator, and up to three 120 mm bottom fans.

Those are not decorative specifications. They decide whether your white PC build remains clean after the hardware is installed.

ComponentWhat to MatchWhat to MeasureMy Hard RulePC caseFinish, panel color, interior coatingMotherboard, GPU, cooler and radiator supportChoose the case firstMotherboardPCB, heatsinks, rear I/O coverForm factor, socket, RAM type, headersSilver and black details are acceptableGraphics cardShroud, backplate, fan colorLength, thickness, connector clearanceLeave 20–30 mm beyond published fit where possibleCPU coolerPump cover, radiator, tubes, fan framesSocket, radiator thickness, RAM and VRM clearanceDo not buy by radiator length aloneRAMHeat spreader and RGB diffuserHeight and cooler overlapMatch the cooler before matching the paintFansFrame, blades, cable and LED toneSize, PWM headers, airflow directionUse one fan family where possiblePSU cablesSleeve shade and connector colorConnector type and bend spaceNever mix unapproved modular PSU cablesLightingWhite balance and diffuser qualityController, ARGB header and software supportUse one controller ecosystemCleaning accessFilters, panels and fan bracketsRemoval direction and desk clearanceBuild for the next cleaning session

Before checkout, run the full list through the manual process in ACEGEEK’s

. Automated compatibility tools catch obvious socket and form-factor errors, but they may not catch radiator overlap, cable pressure, bottom-fan interference, or a side panel pressing against a GPU power lead.

A component can technically fit and still make the system difficult to assemble, cool, clean, or upgrade.

How to Match White PC Components Without Building a Patchwork Machine

Match Materials Before Tiny Color Differences

A white aluminum panel and a white plastic fan frame will never reflect light identically. That is normal.

The more useful comparison is surface character:

Repeated textures make small color variations less noticeable. A matte white case, matte fan frames, and matte cable combs can look consistent even when their exact shades differ.

Mixing a glossy cream GPU, cold-white steel case, translucent blue-white fans, and silver RAM creates more visual conflict.

Do Not Let the White Motherboard Control the Entire Budget

A white or silver motherboard can complete the look, but it should still have the correct socket, chipset, BIOS support, VRM design, memory compatibility, storage layout, fan headers, USB headers, and rear I/O.

Buying the wrong motherboard because its heatsinks are white is backward.

I start with platform requirements. Then I compare finishes. A stable black motherboard with silver heatsinks is a better choice than a weak white board that limits the CPU, storage, or cooling system.

Treat the Graphics Card as a Visual Anchor

The graphics card is usually the largest visible component after the case. Its shroud and backplate therefore matter more than the color of an SSD hidden behind the motherboard tray.

Modern high-end hardware produces serious heat. Intel lists the Core i9-14900K at 125 W Processor Base Power and 253 W Maximum Turbo Power on its

. NVIDIA launched the GeForce RTX 5090 with 32 GB of GDDR7 memory and a starting price of $1,999 on its

Hardware at that level should not be squeezed into a restricted glass box merely because the box photographs well.

“White RGB” is one of the least consistent colors in PC hardware.

Different LED packages and diffusers can turn the same RGB value into blue-white, purple-white, green-white, or warm white. Mixing three fan brands, a separate AIO pump, RGB RAM, and an independent case strip often produces five different whites.

Use one fan family wherever possible. Connect the fans, pump lighting, and strips to a common controller or synchronized motherboard software. Then reduce brightness.

Maximum brightness usually makes LED color mismatch more obvious and creates harsh reflections on white panels. A lower intensity gives the build more depth and makes slightly different diffusers easier to tolerate.

White PC Cable Management: Hide the Black You Cannot Avoid

Cable management is not just about airflow. In a white PC case, it controls the visual hierarchy.

The exposed 24-pin motherboard cable, GPU power cable, front-panel leads, fan wires, and AIO tubes can either frame the hardware or break the entire design.

White extension cables can improve the visible side, but they add connectors and bulk. Use extensions only where they can be hidden cleanly.

And never assume modular PSU cables are interchangeable. The component-side connector may look identical while the PSU-side pinout differs by manufacturer, platform, or model. Use cables supplied or explicitly approved for the exact power supply.

Back-connect cases can reduce visible wiring further by moving motherboard power, USB, fan, and front-panel connectors behind the tray. But the motherboard and case must support the same rear-connector ecosystem. “Back-connect compatible” is a physical standard question, not a styling phrase.

Airflow Comes Before the All-White Photograph

A clean-looking PC still has to move heat.

A 2015 Lawrence Berkeley National Laboratory study found that gaming computers represented about 2.5% of the global installed PC base at the time but accounted for roughly 20% of PC energy use, with a typical gaming computer estimated at approximately 1,400 kWh per year. Those numbers are historical rather than a measurement of every 2026 system, but the

 makes one point that remains valid: high-performance systems concentrate power and heat.

Color does nothing to change that physics.

 to evaluate intake restriction, fan placement, cable paths, filters, and GPU access to cool air.

For a conventional tower, a sensible starting layout is:

A panoramic white PC case may use side and bottom intake instead of front intake. That can work well, but the GPU must still receive fresh air and the top exhaust must remove heat rather than recirculate it through the visible chamber.

More fans are not automatically better. Eight poorly controlled fans behind restricted panels can be louder and less effective than five properly placed PWM fans.

How to Clean a White PC Case Without Ruining the Finish

White PC cases do not necessarily collect more dirt than black cases. They reveal it sooner.

That can be useful. Visible dust encourages maintenance before filters and heatsinks become heavily blocked.

Intel recommends opening the case and carefully removing dust every few months in its

. The correct schedule still depends on the room, floor type, pets, smoking, construction dust, fan pressure, filter design, and whether the computer sits on the floor.

A clean room may require less work. A carpeted room with two pets may require far more.

Use a dry or very lightly dampened microfiber cloth for painted exterior panels. Apply liquid to the cloth, not directly to the case.

Do not assume that 70% isopropyl alcohol—chemical formula

—is safe for every powder-coated, printed, acrylic, rubberized, or adhesive-backed surface. It can be useful on compatible bare glass or metal, but manufacturer instructions should override generic cleaning advice.

Avoid abrasive pads, melamine foam, acetone, ammonia-heavy cleaners, bleach, and aggressive household degreasers. These can dull the finish, damage printing, soften plastics, or leave a visibly different patch on white paint.

Use Compressed Air Without Abusing the Hardware

Move the computer to a ventilated area. Power it down, switch off the PSU, unplug the power cable, and hold fan blades in place while cleaning so they do not free-spin at excessive speed.

Use short, controlled bursts. Keep canned air upright to reduce the chance of propellant discharge.

A workshop compressor is not a harmless upgrade. The U.S. Occupational Safety and Health Administration states that compressed air used for workplace cleaning must generally be reduced to less than 30 psi—about 204 kPa—and used with appropriate guarding and personal protection under

That rule is written for occupational safety rather than specifically for home PC cleaning, but it exposes the bad assumption behind blasting electronics with an unrestricted industrial air gun. High pressure can launch debris, damage delicate parts, overspin fans, and drive contamination deeper into connectors.

Make Maintenance Access Part of the Original Build

A white PC remains clean only when cleaning is easy enough to perform.

Removable filters, hinged glass, captive hardware, detachable fan brackets, and accessible cable panels reduce the temptation to postpone maintenance. ACEGEEK’s guide to

quick-release PC case panels for building and cleaning

 explains why access matters throughout the system’s life, not only during the first assembly.

A case that takes 20 minutes to open will not be cleaned as often as one that takes two minutes.

A Practical White Gaming PC Build Formula

Plan a clean white PC case build with compatible parts, balanced colors, smart cable routing, strong airflow, and safe cleaning methods that protect the finish.
