How to Choose a PC Case for Your GPU's Power and Cooling Needs

A graphics card can fit perfectly inside a PC case and still struggle to stay cool.

The problem is not always the GPU cooler itself. Sometimes, the case cannot deliver enough fresh air to the graphics card or remove the heat it produces efficiently.

This becomes especially important with high-performance graphics cards that consume several hundred watts during demanding workloads.

For example, NVIDIA lists the GeForce RTX 5090 at 575W Total Graphics Power (TGP), while AMD specifies 355W typical board power for the Radeon RX 7900 XTX.

Both can generate substantial heat, but that does not mean they require identical case designs.

Choosing a PC case based on GPU power draw means matching the chassis airflow, ventilation, and internal space to the graphics card's actual cooling requirements.

A well-ventilated mid-tower may handle a powerful GPU effectively, while a larger case with restrictive intake openings could deliver disappointing results.

This guide explains how GPU power consumption affects case selection, which airflow features matter most, and how to evaluate a PC case before purchasing.

Why Does GPU Power Draw Matter When Choosing a PC Case?

GPU power consumption provides a useful indication of how much heat the graphics card may produce.

Nearly all electrical energy consumed by a graphics card eventually becomes heat that must leave the system.

For example, a GPU consuming approximately 350W during a sustained workload introduces a substantial thermal load into its cooling environment.

A 500W-class graphics card can produce even more heat.

However, the case does not need to remove this heat through one specific fan or ventilation opening.

The objective is to provide the graphics card with sufficiently cool intake air while allowing heated air to escape efficiently.

Understanding TGP, TBP, and Actual GPU Power

Graphics card manufacturers use different terms to describe power consumption.

 is commonly used by NVIDIA to describe a graphics card power specification.

 or typical board power is commonly used in AMD specifications.

These values help estimate the cooling demands of a graphics card, but they do not necessarily represent constant power consumption during every workload.

A GPU rated at 450W may consume significantly less during certain games.

The same card may operate closer to its power limit during sustained rendering or other demanding workloads.

For case selection, consider both the manufacturer's rated power and the workloads you actually expect to run.

A graphics card's rated power should not be confused with the recommended power supply capacity.

For example, NVIDIA lists the RTX 5090 with a 575W TGP and a 1000W recommended system power specification for its stated reference configuration.

The 1000W figure relates to the power supply requirements of the complete PC, not the GPU's continuous heat output.

The CPU, motherboard, storage, cooling hardware, and other components also consume electricity.

Use the GPU's power specification to help plan graphics-card cooling, while selecting the PSU according to the complete system's electrical requirements.

How Much GPU Power Can Different PC Cases Handle?

There is no universal GPU wattage limit for Mini-Tower, Mid-Tower, or Full-Tower PC cases.

Two cases with similar dimensions can have very different cooling performance because of their ventilation design, fan placement, and internal component clearance.

Nevertheless, GPU power consumption can help identify which case features deserve attention.

GPU Power Draw and PC Case Selection Guide

GPU Power ClassCase Features to PrioritizeCooling ConsiderationsUp to approximately 200WEffective basic intake and exhaustCompact cases may be suitable with adequate ventilationAround 200–300WOpen front or side intake, clear GPU airflow pathA conventional airflow-focused mid-tower is a useful starting pointAround 300–400WLow-restriction intake and effective exhaustPay closer attention to GPU intake conditions and sustained temperaturesAround 400–500WStrong ventilation, generous GPU clearance, flexible fan placementBottom or side intake may provide additional cooling optionsAbove 500WMultiple effective airflow paths and verified high-load performancePrioritize independent thermal testing, clear intake and exhaust, and full installation compatibility

These ranges are illustrative planning categories, not manufacturer-approved case ratings or universal cooling thresholds.

A well-designed compact case may handle a GPU from a higher power category.

Likewise, a poorly ventilated large tower may struggle with a graphics card from a lower category.

The useful question is not simply how many watts a case can support.

It is whether the chassis can maintain a suitable thermal environment for the exact graphics card under the intended workload.

Four PC Case Features That Matter Most for GPU Cooling

GPU power draw is only the starting point.

Once you understand the approximate heat output of your graphics card, evaluate how the case supplies air, accommodates the GPU, and removes heat.

Every case fan operates against some degree of airflow resistance.

Mesh panels, dust filters, decorative covers, and internal structures can influence how much air enters the chassis.

A fan's advertised maximum airflow does not guarantee that it will move the same amount of air after installation.

For example, three intake fans behind a highly restrictive front panel may deliver less useful airflow than fewer fans behind a more open ventilation design.

For graphics cards with substantial power consumption, the quality of the intake path becomes particularly important.

A mesh-front case can provide a straightforward intake path, but glass-front designs can also work when they include effective side or bottom ventilation.

The presence of glass is not enough to determine cooling performance.

how front panel design affects PC case cooling

 explains how ventilation restrictions influence airflow.

Many modern gaming graphics cards use open-air coolers.

Their fans draw air through the heatsink, and a substantial portion of the resulting heat enters the case interior.

If the same warm air repeatedly circulates back toward the graphics card, its cooling system becomes less effective.

This is why the location of intake fans matters.

A conventional mesh-front case can deliver room air toward both the CPU and GPU.

Lower front fans may help supply the graphics card directly.

Bottom fans can provide a relatively short airflow path toward the underside of a horizontally mounted GPU.

Their effectiveness depends on case-foot clearance, dust filters, and the GPU's position.

Side-mounted fans are particularly common in panoramic and dual-chamber cases.

They can supply outside air to the GPU and motherboard area even when the front panel is made of glass.

None of these configurations is universally superior.

The goal is to provide a clear path between an external intake opening and the graphics card cooler.

For a deeper explanation, read our guide to

A graphics card requires more than sufficient length to fit inside the case.

This becomes especially important for large graphics cards with multiple cooling fans.

For example, NVIDIA lists the RTX 5090 Founders Edition at 304mm long and 137mm wide.

However, the company's installation guidance also specifies additional clearance around the card and approximately 36mm of space for power cables.

Those measurements apply to the Founders Edition installation guidance. Board-partner models can have significantly different dimensions.

A case with sufficient GPU length may still be incompatible if the power connector presses against the side panel.

Similarly, a thick GPU positioned close to a solid panel may experience restricted intake airflow.

Verify all dimensions of the exact graphics card model.

Supplying fresh air is only half of the cooling process.

The heat generated by the GPU must eventually leave the chassis.

Rear and top exhaust openings can help remove warm air from the main component chamber.

However, additional exhaust fans do not automatically improve temperatures.

For example, a top-front exhaust fan positioned close to a front intake may remove incoming cool air before it reaches the CPU cooler or graphics card.

The result depends on internal case geometry and fan speed.

For many conventional towers, rear exhaust is a useful starting point, with additional top ventilation evaluated according to the cooling requirements.

A practical airflow configuration should create a coherent intake-to-exhaust path instead of relying on the maximum possible number of fans.

Does a Higher-Power GPU Need More Case Fans?

A more powerful GPU can increase the cooling demands placed on the chassis, but it does not establish an exact required fan count.

For example, a well-ventilated case with three effective intake fans and one rear exhaust fan may provide suitable cooling for a demanding graphics card.

Learn how GPU power draw affects PC case cooling. Compare airflow layouts, GPU clearance, intake fans, and case options for high-power graphics cards.

التقييمات

تعرّف على كيفية تأثير استهلاك الطاقة لوحدة معالجة الرسومات على تبريد صندوق الكمبيوتر. قارن بين تصميمات تدفق الهواء، ومسافة وحدة معالجة الرسومات، ومراوح السحب، وخيارات الصناديق المناسبة لبطاقات الرسومات عالية الطاقة.

كيفية اختيار صندوق الكمبيوتر المناسب لاحتياجات الطاقة والتبريد لوحدة معالجة الرسومات (GPU)

Future Trends

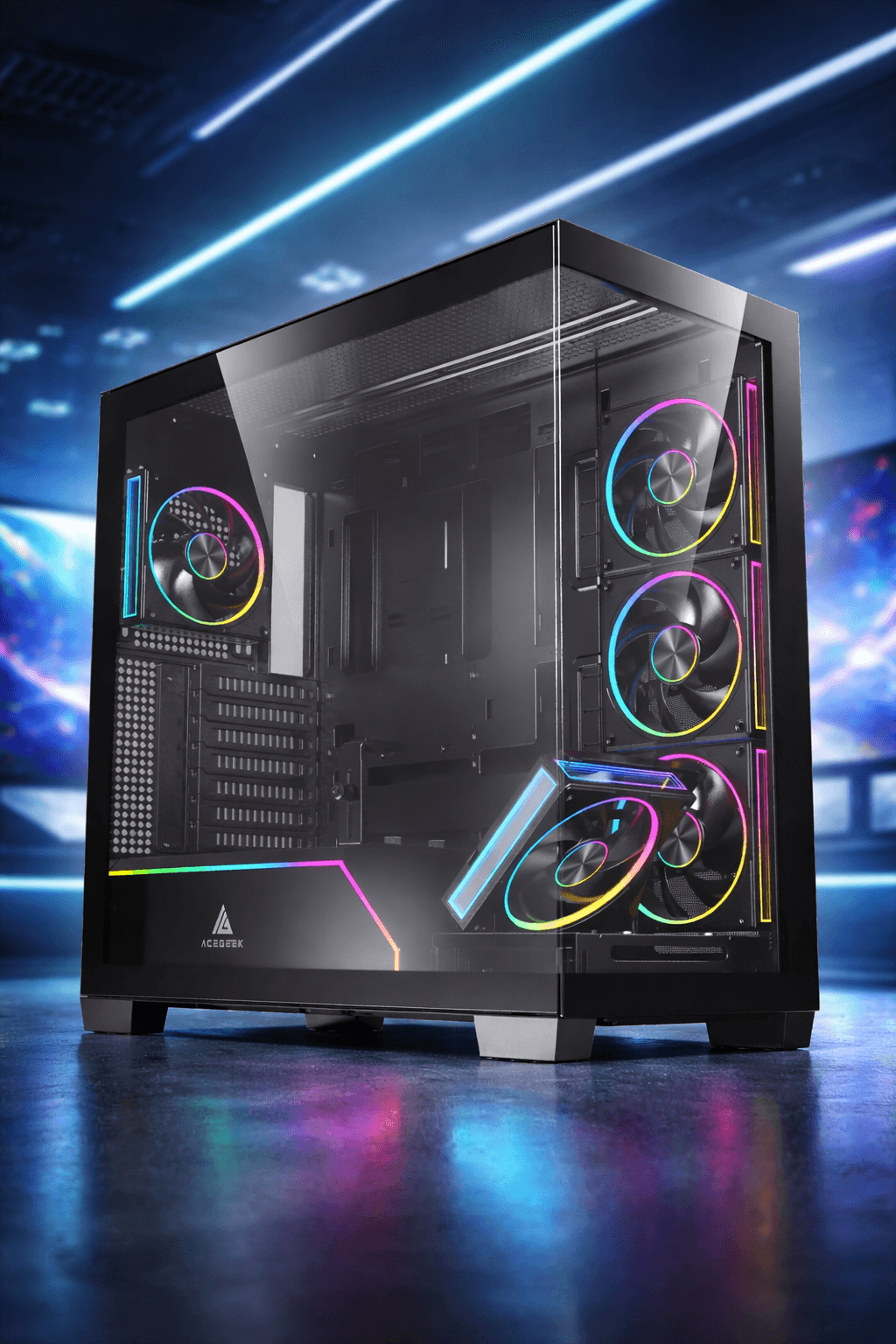

Why PC Case Design Is Becoming More Thermal-Driven Than Ever
