Tower Cooler Clearance Guide: RAM Height, Side Panels, and Case Width

I have watched too many builders buy a giant dual-tower air cooler, glance at the case page, see “165mm CPU cooler clearance,” and act like the job is done, even though the real fight starts when tall DDR5 heatspreaders, fan clips, side-panel glass, and board-top heatsinks all begin stealing the same few millimeters. Want the hard truth?

Most “compatibility” mistakes are not performance mistakes. They are geometry mistakes.

And I’m not talking about theory. Noctua says the NH-D15 and NH-D15 G2 ship with

 in default form, and it explicitly warns that moving the front fan up for taller RAM also increases cooler height; G.SKILL lists

. That is the whole story in one ugly sentence: the cooler, the RAM, and the case spec are all arguing with each other before you even touch a screwdriver.

The measurement everyone checks first is not enough

But if you only compare “cooler height” to “max CPU cooler clearance,” you are doing half a job, because tower cooler clearance is not just the heatsink body; it is the heatsink, the fan position, the RAM profile under the fan, the motherboard’s top-edge bulk, and the little bit of breathing room you need so the side panel is not pressing against metal or glass. Why pretend otherwise?

I do not trust any fitment plan that starts and ends with a single number. That is why I’d tell readers to first study

How to Choose the Right PC Case for Your Build

PC Case Airflow Design Rules for OEM and SI Thermal Planning

, and only then match heat load to cooler class with

Understanding TDP: The Key to PC Stability

. Those three pages cover the chassis size, thermal path, and heat budget that usually get skipped by people who are in a hurry.

RAM height is where tower cooler clearance stops being abstract

That is why builders obsess over it, and for once I think the obsession is justified, because a tall RGB kit is often the first part that forces a front fan upward, which then turns a “fits on paper” cooler into a “the side panel will not close” cooler in real life. Why do people keep learning this the expensive way?

Case study 1: NH-D15 plus 44mm RGB memory in a 165mm class case

Noctua’s own guidance is brutally clear:

 is the default safe zone for the NH-D15 line at

, and every extra millimeter of RAM height pushes the fan upward by the same amount; Noctua even gives the 35mm example and shows that the cooler becomes

 tall. Now combine that with G.SKILL’s

 if you keep the front fan. Put that into a

 case and you are not “tight.” You are cooked. The official numbers make the verdict obvious. Read the

 if you want the raw math, not forum folklore.

Case study 2: NH-D15 plus low-profile DDR5 in a roomier chassis

Corsair’s standard DDR5 VENGEANCE modules are

 tall, which is still above Noctua’s default

; Noctua’s own example shows that a 3mm lift brings the cooler to

. That is exactly why roomy cases matter. In a chassis with

 cooler headroom, that setup is sane. In a 165mm box, it is wishful thinking dressed up as optimism. Corsair’s

 and Noctua’s fitment note tell you everything you need to know, and they tell it better than most influencer build guides do.

Case study 3: buy a cooler that was designed for tall RAM

DeepCool’s official ASSASSIN IV page says it offers

 on modern Intel mainstream sockets and AMD AM4/AM5, while listing total height at

. That is the kind of spec I respect because it solves the actual buyer problem: you want tall DDR5, you want a serious air cooler, and you do not want to play fan-offset roulette at midnight. I do not think every builder needs that cooler, but I do think more builders should read the

 before they buy another giant dual-tower model that overhangs the DIMM slots and demands compromise.

A lot of people think case width automatically predicts CPU cooler clearance, but that shortcut falls apart fast because the published outer width includes steel, cable-routing space, motherboard tray geometry, glass thickness, panel mounts, and sometimes design features that eat into usable headroom. So what does that mean in practice?

It means a case can look wide enough and still be mean on the inside. ACEGEEK’s own specs make that point better than a lecture would.

CaseCase WidthMax CPU Cooler ClearanceMy read

195mm165mmCompact shell, and ACEGEEK openly says top 240mm AIO support depends on

210mm165mmWider than Stratus, same tower-cooler ceiling; width alone buys less than people thinkVision M352200mm155mmThis is where big dual-towers start becoming a bad personality trait

245mm185mmReal air-cooler breathing room, including margin for taller memory or fan lift

Source: official ACEGEEK product specs for Stratus Glass, Surge-M, Vision M352, and Photon.

That table is the part too many buyers skip.

. That is why I keep telling people not to shop by width alone. Case width is a clue. CPU cooler clearance is the verdict. And side-panel shape is the judge.

The real formula I use before I buy anything

Here is my ugly, boring, reliable method: start with the case’s official max CPU cooler clearance, subtract any margin you want for comfort, check the cooler’s real installed height, then verify whether RAM height forces the front fan upward, then ask whether the side panel is flat or sculpted, tempered glass or steel, forgiving or hostile. Why do builders act like this is overkill when it saves a full rebuild?

My rule is simple. If the clearance margin is under

, I treat it as a warning. If the RAM is taller than the cooler’s default spec, I assume I will need more height unless the manufacturer explicitly says otherwise. And if the case page publishes only the headline number with none of the fine print, I assume the fine print exists and I just have not found it yet. That mindset is less exciting than RGB, but it keeps the panel closed and the fan blades off your DIMMs.

CPU cooler clearance is the real, usable distance between the CPU socket area and the fully closed side panel, after you account for the cooler’s fan position, RAM height, motherboard heatsinks, and any case-specific rails or glass geometry that shrink the nice-looking number on the spec sheet. I define it that way because the published case number is only useful if the cooler keeps its stock height and nothing underneath forces the fan upward. When either condition fails, the real clearance number changes.

How do I check tower cooler RAM clearance?

Tower cooler RAM clearance is the amount of space an air cooler leaves above the motherboard’s DIMM slots before the fan or lower fin stack touches the memory modules, and it must be checked against the exact RAM height, not the brand name or a vague “low-profile” label. I compare the cooler maker’s stated RAM allowance against the memory maker’s published module height, then I add the difference to the cooler height if the front fan has to move. It is plain arithmetic, but it saves money.

Does case width guarantee side-panel clearance for a tower cooler?

Case width is only an indirect clue because external chassis width includes panel material, cable-management depth, motherboard tray spacing, and structural features that do not all turn into CPU cooler headroom, which is why two cases with similar widths can publish very different cooler-clearance limits. I look at max CPU cooler clearance first, case width second, and side-panel style third. That order matters. It keeps you from buying a wide case that is still cramped where it counts.

What is the best CPU cooler for tall RAM?

The best CPU cooler for tall RAM is usually the model that either avoids the DIMM slots entirely or explicitly promises unobstructed or high-clearance RAM support without needing a fan-offset workaround that increases total height and creates a new case-fit problem. I lean toward coolers that state their RAM behavior in writing, not coolers that force you to decode forum guesses. When the RAM is 44mm to 56mm tall, published compatibility is worth more than branding.

Measure your RAM height, write down your case’s max CPU cooler clearance, and decide whether you are building for looks or for margin. If you want a compact build, read the fine print on

. If you want a safer middle ground, check

. If you want room to stop fighting millimeters, study

. Then match the thermal load, not the marketing, with

. That is the adult way to buy cooling hardware.

Tower Cooler Clearance Guide: RAM Height, Side Panels, and Case Width

I have watched too many builders buy a giant dual-tower air cooler, glance at the case page, see “165mm CPU cooler clearance,” and act like the job is done, even though the real fight starts when tall DDR5 heatspreaders, fan clips, side-panel glass, and board-top heatsinks all begin stealing the same few millimeters. Want the hard truth?

Most “compatibility” mistakes are not performance mistakes. They are geometry mistakes.

And I’m not talking about theory. Noctua says the NH-D15 and NH-D15 G2 ship with 32mm RAM clearance and a 168mm total height in default form, and it explicitly warns that moving the front fan up for taller RAM also increases cooler height; G.SKILL lists Trident Z5 / Trident Z5 RGB at 44mm, while Corsair lists standard VENGEANCE DDR5 at 35mm and VENGEANCE RGB DDR5 at 44mm. That is the whole story in one ugly sentence: the cooler, the RAM, and the case spec are all arguing with each other before you even touch a screwdriver.

The measurement everyone checks first is not enough

Height matters.

But if you only compare “cooler height” to “max CPU cooler clearance,” you are doing half a job, because tower cooler clearance is not just the heatsink body; it is the heatsink, the fan position, the RAM profile under the fan, the motherboard’s top-edge bulk, and the little bit of breathing room you need so the side panel is not pressing against metal or glass. Why pretend otherwise?

I do not trust any fitment plan that starts and ends with a single number. That is why I’d tell readers to first study How to Choose the Right PC Case for Your Build, then cross-check airflow behavior in PC Case Airflow Design Rules for OEM and SI Thermal Planning, and only then match heat load to cooler class with Understanding TDP: The Key to PC Stability. Those three pages cover the chassis size, thermal path, and heat budget that usually get skipped by people who are in a hurry.



RAM height is where tower cooler clearance stops being abstract

RAM is visible.

That is why builders obsess over it, and for once I think the obsession is justified, because a tall RGB kit is often the first part that forces a front fan upward, which then turns a “fits on paper” cooler into a “the side panel will not close” cooler in real life. Why do people keep learning this the expensive way?

Case study 1: NH-D15 plus 44mm RGB memory in a 165mm class case

Noctua’s own guidance is brutally clear: 32mm RAM is the default safe zone for the NH-D15 line at 168mm total cooler height, and every extra millimeter of RAM height pushes the fan upward by the same amount; Noctua even gives the 35mm example and shows that the cooler becomes 171mm tall. Now combine that with G.SKILL’s 44mm Trident Z5 RGB. That is roughly 12mm above the default 32mm window, which implies about 180mm effective height if you keep the front fan. Put that into a 165mm case and you are not “tight.” You are cooked. The official numbers make the verdict obvious. Read the Noctua compatibility FAQ and the G.SKILL DRAM height FAQ if you want the raw math, not forum folklore.

Case study 2: NH-D15 plus low-profile DDR5 in a roomier chassis

This one works.

Corsair’s standard DDR5 VENGEANCE modules are 35mm tall, which is still above Noctua’s default 32mm envelope, but only by 3mm; Noctua’s own example shows that a 3mm lift brings the cooler to 171mm. That is exactly why roomy cases matter. In a chassis with 185mm cooler headroom, that setup is sane. In a 165mm box, it is wishful thinking dressed up as optimism. Corsair’s memory dimensions table and Noctua’s fitment note tell you everything you need to know, and they tell it better than most influencer build guides do.

Case study 3: buy a cooler that was designed for tall RAM

There is another way.

DeepCool’s official ASSASSIN IV page says it offers unobstructed RAM clearance on modern Intel mainstream sockets and AMD AM4/AM5, while listing total height at 164mm. That is the kind of spec I respect because it solves the actual buyer problem: you want tall DDR5, you want a serious air cooler, and you do not want to play fan-offset roulette at midnight. I do not think every builder needs that cooler, but I do think more builders should read the DeepCool ASSASSIN IV specs before they buy another giant dual-tower model that overhangs the DIMM slots and demands compromise.



Side panels punish bad assumptions

Width deceives.

A lot of people think case width automatically predicts CPU cooler clearance, but that shortcut falls apart fast because the published outer width includes steel, cable-routing space, motherboard tray geometry, glass thickness, panel mounts, and sometimes design features that eat into usable headroom. So what does that mean in practice?

It means a case can look wide enough and still be mean on the inside. ACEGEEK’s own specs make that point better than a lecture would.

CaseCase WidthMax CPU Cooler ClearanceMy readStratus Glass195mm165mmCompact shell, and ACEGEEK openly says top 240mm AIO support depends on RAM height staying within 38mmSurge-M210mm165mmWider than Stratus, same tower-cooler ceiling; width alone buys less than people thinkVision M352200mm155mmThis is where big dual-towers start becoming a bad personality traitPhoton245mm185mmReal air-cooler breathing room, including margin for taller memory or fan lift

Source: official ACEGEEK product specs for Stratus Glass, Surge-M, Vision M352, and Photon.

That table is the part too many buyers skip.

A 210mm case and a 195mm case can both cap out at 165mm cooler clearance, while a 245mm chassis jumps to 185mm. That is why I keep telling people not to shop by width alone. Case width is a clue. CPU cooler clearance is the verdict. And side-panel shape is the judge.

The real formula I use before I buy anything

Measure first.

Here is my ugly, boring, reliable method: start with the case’s official max CPU cooler clearance, subtract any margin you want for comfort, check the cooler’s real installed height, then verify whether RAM height forces the front fan upward, then ask whether the side panel is flat or sculpted, tempered glass or steel, forgiving or hostile. Why do builders act like this is overkill when it saves a full rebuild?

My rule is simple. If the clearance margin is under 3mm, I treat it as a warning. If the RAM is taller than the cooler’s default spec, I assume I will need more height unless the manufacturer explicitly says otherwise. And if the case page publishes only the headline number with none of the fine print, I assume the fine print exists and I just have not found it yet. That mindset is less exciting than RGB, but it keeps the panel closed and the fan blades off your DIMMs.

FAQs

What is CPU cooler clearance?

CPU cooler clearance is the real, usable distance between the CPU socket area and the fully closed side panel, after you account for the cooler’s fan position, RAM height, motherboard heatsinks, and any case-specific rails or glass geometry that shrink the nice-looking number on the spec sheet. I define it that way because the published case number is only useful if the cooler keeps its stock height and nothing underneath forces the fan upward. When either condition fails, the real clearance number changes.

How do I check tower cooler RAM clearance?

Tower cooler RAM clearance is the amount of space an air cooler leaves above the motherboard’s DIMM slots before the fan or lower fin stack touches the memory modules, and it must be checked against the exact RAM height, not the brand name or a vague “low-profile” label. I compare the cooler maker’s stated RAM allowance against the memory maker’s published module height, then I add the difference to the cooler height if the front fan has to move. It is plain arithmetic, but it saves money.

Does case width guarantee side-panel clearance for a tower cooler?

Case width is only an indirect clue because external chassis width includes panel material, cable-management depth, motherboard tray spacing, and structural features that do not all turn into CPU cooler headroom, which is why two cases with similar widths can publish very different cooler-clearance limits. I look at max CPU cooler clearance first, case width second, and side-panel style third. That order matters. It keeps you from buying a wide case that is still cramped where it counts.

What is the best CPU cooler for tall RAM?

The best CPU cooler for tall RAM is usually the model that either avoids the DIMM slots entirely or explicitly promises unobstructed or high-clearance RAM support without needing a fan-offset workaround that increases total height and creates a new case-fit problem. I lean toward coolers that state their RAM behavior in writing, not coolers that force you to decode forum guesses. When the RAM is 44mm to 56mm tall, published compatibility is worth more than branding.

Your next move

Stop guessing.

Measure your RAM height, write down your case’s max CPU cooler clearance, and decide whether you are building for looks or for margin. If you want a compact build, read the fine print on Stratus Glass. If you want a safer middle ground, check Surge-M. If you want room to stop fighting millimeters, study Photon. Then match the thermal load, not the marketing, with Understanding TDP: The Key to PC Stability. That is the adult way to buy cooling hardware.

Tower cooler clearance is not a one-number problem. This guide shows how RAM height, side panels, and case width decide whether a big air cooler actually fits before you waste money on a rebuild.

Maintenance & Cleaning

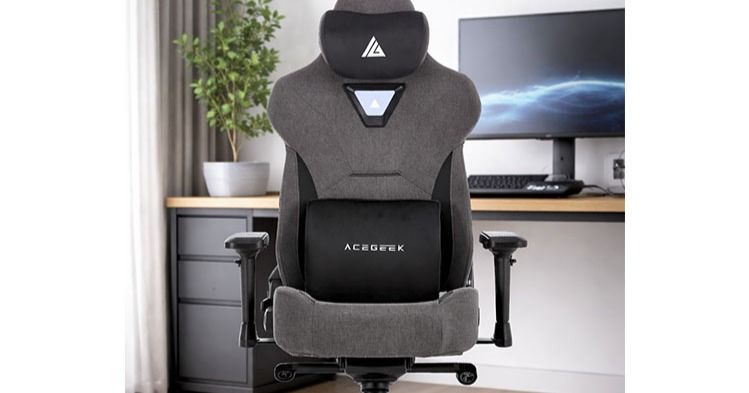

How to Tune Lumbar Support for Better Ergonomic Chair Fit
