Future Trends

If you have ever felt confused by the alphabet soup of USB naming conventions, you are not alone. With the evolution from USB 3.0 to the latest USB 3.2 Gen 2, keeping track of transfer speeds has become a challenge for even seasoned DIY builders.

The most important thing to remember is that the "Generation" (Gen) tells you more about the speed than the version number itself. Here is the breakdown of how the industry has renamed these specifications over time:

, don’t be misled by version names—the most critical factor is checking the actual

What is USB Type-C? (It’s Not a Speed!)

A common misconception is that "Type-C" refers to the speed of the connection. In reality,

, not a transfer protocol. You can have a Type-C port that runs at slow USB 2.0 speeds or blazing-fast USB 3.2 Gen 2 speeds.

Having a high-speed motherboard is only half the battle; you need a front I/O panel that can actually handle the throughput.

 on the front or top panel. This allows gamers and content creators to access transfer speeds of up to

 without having to crawl behind their desks to reach the back of the motherboard. This connection is essential for:

When building your next PC, ensure your case and motherboard are on the same page. By choosing a high-airflow

 equipped with the latest USB 3.2 Gen 2 Type-C support, you ensure that your rig is ready for the next generation of high-speed devices.



(ACEGEEK LunarisFlow ATX PC Case, with USB Type-C)



If you have ever felt confused by the alphabet soup of USB naming conventions, you are not alone. With the evolution from USB 3.0 to the latest USB 3.2 Gen 2, keeping track of transfer speeds has become a challenge for even seasoned DIY builders.



The Naming Confusion: Speed vs. Version

The most important thing to remember is that the "Generation" (Gen) tells you more about the speed than the version number itself. Here is the breakdown of how the industry has renamed these specifications over time:











5Gbps Speed: USB 3.0 is equivalent to USB 3.1 Gen 1 and USB 3.2 Gen 1.



10Gbps Speed: USB 3.1 Gen 2 is equivalent to USB 3.2 Gen 2.

When purchasing a new motherboard or a case, don’t be misled by version names—the most critical factor is checking the actual transfer speed listed in the specs.



What is USB Type-C? (It’s Not a Speed!)

A common misconception is that "Type-C" refers to the speed of the connection. In reality, USB Type-C is merely a connector type, not a transfer protocol. You can have a Type-C port that runs at slow USB 2.0 speeds or blazing-fast USB 3.2 Gen 2 speeds.

Key Advantages of the Type-C Interface:





Reversible Design: Unlike the traditional rectangular USB-A, Type-C is oval-shaped and can be plugged in either way.



High Power Delivery: It supports significantly faster charging and power delivery for mobile devices and laptops.



Space-Saving: Its small footprint allows for sleeker, modern PC cases and thinner portable devices.







Why Your PC Case Choice Matters

Having a high-speed motherboard is only half the battle; you need a front I/O panel that can actually handle the throughput.

Most modern ACEGEEK chassis models feature a dedicated USB 3.2 Gen 2 Type-C port on the front or top panel. This allows gamers and content creators to access transfer speeds of up to 10Gbps without having to crawl behind their desks to reach the back of the motherboard. This connection is essential for:





Fast-loading external SSDs used for game libraries.



High-resolution video editing from external drives.



Stable, high-speed data syncing for modern peripherals.





(ACEGEEK LunarisFlow ATX PC Case, with USB Type-C)



Conclusion: Future-Proof Your Build

When building your next PC, ensure your case and motherboard are on the same page. By choosing a high-airflow ACEGEEK case equipped with the latest USB 3.2 Gen 2 Type-C support, you ensure that your rig is ready for the next generation of high-speed devices.

Stop settling for "turtle-speed" data transfers, master the secrets of USB 3.2 and Type-C to unlock the full performance of your modern PC build.

USB 3.2, Gen 2, and Type-C: Decoding the Speed of Modern Connectivity

Buying Guides

Building your own PC is more than just a tech project; it’s a rite of passage for every true gamer and creator. While the process might seem daunting at first, it is incredibly rewarding to press that power button for the first time and see your creation come to life.

Before you buy a single screw, you must determine your usage needs. Are you building a competitive gaming rig, a professional workstation for content creation, or a silent office machine?

Defining your goal prevents two major beginner mistakes:

Step 2: The Anatomy of a High-Performance PC

To build a functional system, you need these essential building blocks:

The best way to ensure compatibility is to use a planning tool.

Step 4: Essential Tools for a Smooth Install

You don't need a professional workshop, but these three things are non-negotiable:

Your build isn't finished once it's assembled. Dust is a silent performance killer that traps heat. To keep your FPS high, we recommend a

 makes this maintenance as simple as peeling off the filter and wiping it down.

Whether you are looking for a sleek panoramic view or a high-airflow mesh beast, we have the gear to keep your frames high and your temps low.





Building your own PC is more than just a tech project; it’s a rite of passage for every true gamer and creator. While the process might seem daunting at first, it is incredibly rewarding to press that power button for the first time and see your creation come to life.



Step 1: Define Your Mission

Before you buy a single screw, you must determine your usage needs. Are you building a competitive gaming rig, a professional workstation for content creation, or a silent office machine?







Defining your goal prevents two major beginner mistakes:





Buying incompatible components.



Overspending on parts that don't actually improve your specific experience.



Step 2: The Anatomy of a High-Performance PC

To build a functional system, you need these essential building blocks:





CPU (Processor): The brain that executes all instructions.



CPU Cooler: Essential for preventing Thermal Throttling. Modern processors often require an upgrade to an AIO Liquid Cooler to maintain stable boost clocks during heavy loads.



Motherboard: The central nervous system that connects everything.



RAM (Memory): Temporary storage for active data. For maximum performance, always use dual-channel configurations (two sticks instead of one).



Storage (NVMe SSD): Modern games and apps should always be installed on an NVMe SSD to avoid loading stalls and stuttering.



Graphics Card (GPU): The heart of gaming and rendering. To keep your GPU healthy, ensure your PC case has dedicated fans directing air straight to the card.



Power Supply Unit (PSU): Often overlooked, but critical. A high-quality, high-wattage PSU ensures your system gets clean, stable power even during intense scenes.



PC Case: More than just a box, a great case provides the airflow and dust filtration needed to protect your investment.







Step 3: Architecting Your Build

The best way to ensure compatibility is to use a planning tool.





(PCPartPicker)







Use a Compatibility Checker: Websites like PCPartPicker allow you to virtually assemble your components to check for size constraints and power requirements.



Focus on Airflow: When choosing your chassis, look for models with louvered panels or mesh designs to maximize cold air intake.



Choose the Right Fans: Don't just look at RGB. Check the bearing type. For a gaming PC, Hydro (Hydraulic) Bearing fans are the "sweet spot," offering a whisper-quiet experience with a long lifespan.



Step 4: Essential Tools for a Smooth Install

You don't need a professional workshop, but these three things are non-negotiable:











Magnetic Screwdriver: This is your best friend. It prevents tiny screws from falling into the dark crevices of your motherboard or PSU shroud.



Cable Management Supplies: Use zip ties or Velcro straps to keep cables organized. Good cable management isn't just for looks; it improves overall system airflow.



The Component Manuals: Even pros check the manual. It contains vital information on front-panel header locations and RAM slot priority.



Step 5: Maintenance for Longevity

Your build isn't finished once it's assembled. Dust is a silent performance killer that traps heat. To keep your FPS high, we recommend a quick cleaning every 3-6 months. Using a case with easy-to-remove dust filters makes this maintenance as simple as peeling off the filter and wiping it down.









Pro Tip: If you are mounting fans on the top radiator of your case, always opt for Hydro bearings. Unlike cheap sleeve bearings, they aren't affected by gravity and won't fail prematurely when mounted horizontally.



Build Your Future with ACEGEEK

Whether you are looking for a sleek panoramic view or a high-airflow mesh beast, we have the gear to keep your frames high and your temps low.

Stop losing FPS and start building like a pro with the ultimate guide to mastering PC performance and DIY assembly.

Master the Art of PC Building: The Ultimate 2025 DIY Beginner’s Guide

When choosing a CPU cooler—whether air or liquid—performance is just as important as aesthetics. But how do you accurately evaluate a cooler’s capabilities? This is where the term

 comes into play. Understanding TDP helps you select the right cooling solution for your needs, ensuring your system runs at peak efficiency.

, refers to the maximum amount of heat a component (typically a CPU or GPU) generates under a heavy theoretical load. In simpler terms, it is a standardized measure of heat output used to determine the cooling requirements for that specific component.

While TDP is listed for both CPUs and coolers, the meaning differs slightly between the two:

. A higher TDP indicates that the processor generates more heat, which typically correlates with higher processing power and performance.

. A cooler’s TDP rating tells you the maximum heat output it can effectively dissipate.

How to Choose the Right Cooler Based on CPU TDP

When selecting a cooler, it is essential to match the cooler’s TDP rating with the thermal output of your CPU. To ensure stability, it is often recommended to choose a cooler with a TDP rating that

Standard mid-range processors often have a base power around 65W but can reach much higher levels (e.g., 150W+) during turbo or boost frequencies. For these chips, a

 with multiple copper heat pipes is usually sufficient. A cooler rated for 200W TDP provides excellent "headroom," allowing the CPU to maintain higher clock speeds for longer periods.

Flagship processors generate significantly more heat, often exceeding 250W under full load. In these scenarios, air cooling may struggle to keep temperatures within safe limits. An

 is generally the better option here. Liquid coolers with large radiators (such as 360mm models) often feature TDP ratings of 300W or higher, providing the thermal dissipation required for heavy workloads like video rendering or 4K gaming.

TDP is a critical factor because it prevents "thermal throttling"—a safety feature where the CPU slows itself down to prevent damage from overheating. By choosing a cooler that matches or exceeds your CPU's thermal requirements, you ensure:

 No unexpected crashes during heavy tasks.

 Your CPU can stay in its "Turbo" state longer.

 Components last longer when kept at lower operating temperatures.

Whether you are building a budget workstation or a high-performance gaming rig, checking the TDP values of both your CPU and your cooler is essential. Always aim for a cooler that can handle more than your CPU's peak output to ensure a quiet, stable, and high-performing system.





When choosing a CPU cooler—whether air or liquid—performance is just as important as aesthetics. But how do you accurately evaluate a cooler’s capabilities? This is where the term TDP (Thermal Design Power) comes into play. Understanding TDP helps you select the right cooling solution for your needs, ensuring your system runs at peak efficiency.



What is TDP?

TDP, or Thermal Design Power, refers to the maximum amount of heat a component (typically a CPU or GPU) generates under a heavy theoretical load. In simpler terms, it is a standardized measure of heat output used to determine the cooling requirements for that specific component.



While TDP is listed for both CPUs and coolers, the meaning differs slightly between the two:



．On a CPU: TDP represents the heat output. A higher TDP indicates that the processor generates more heat, which typically correlates with higher processing power and performance.

．On a Cooler: TDP indicates cooling capacity. A cooler’s TDP rating tells you the maximum heat output it can effectively dissipate.



In short: A CPU’s TDP indicates how much heat it produces, while a cooler’s TDP rating tells you how much heat it can handle.







How to Choose the Right Cooler Based on CPU TDP

When selecting a cooler, it is essential to match the cooler’s TDP rating with the thermal output of your CPU. To ensure stability, it is often recommended to choose a cooler with a TDP rating that exceeds the CPU's maximum power draw.



For Mid-Range CPUs

Standard mid-range processors often have a base power around 65W but can reach much higher levels (e.g., 150W+) during turbo or boost frequencies. For these chips, a high-quality air cooler with multiple copper heat pipes is usually sufficient. A cooler rated for 200W TDP provides excellent "headroom," allowing the CPU to maintain higher clock speeds for longer periods.



For High-End or Enthusiast CPUs

Flagship processors generate significantly more heat, often exceeding 250W under full load. In these scenarios, air cooling may struggle to keep temperatures within safe limits. An All-in-One (AIO) liquid cooler is generally the better option here. Liquid coolers with large radiators (such as 360mm models) often feature TDP ratings of 300W or higher, providing the thermal dissipation required for heavy workloads like video rendering or 4K gaming.







Why Understanding TDP Matters

TDP is a critical factor because it prevents "thermal throttling"—a safety feature where the CPU slows itself down to prevent damage from overheating. By choosing a cooler that matches or exceeds your CPU's thermal requirements, you ensure:



．System Stability: No unexpected crashes during heavy tasks.

．Optimal Performance: Your CPU can stay in its "Turbo" state longer.

．Longevity: Components last longer when kept at lower operating temperatures.



Summary

Whether you are building a budget workstation or a high-performance gaming rig, checking the TDP values of both your CPU and your cooler is essential. Always aim for a cooler that can handle more than your CPU's peak output to ensure a quiet, stable, and high-performing system.

Unlock the secret to a whisper-quiet, high-performance build by understanding how TDP actually dictates your PC's stability.

Understanding TDP: The Key to PC Stability

When building or buying a PC, you’ll notice various ports on the case's I/O panel. While they might look similar at first glance, the difference between USB 2.0 and USB 3.0 is significant. Whether you are transferring huge video files or just connecting a mouse, knowing which port to use matters.

Here is the ultimate breakdown of how to tell them apart and why it affects your performance.

. It is best suited for low-bandwidth peripherals like mice, keyboards, and printers.

 than USB 2.0, making it essential for external hard drives and thumb drives where speed counts.

. This makes it easy to spot the high-speed ports instantly.

Note: USB 3.0 also features more internal pins (9 pins vs. 4 pins).

t operates on a "Half-Duplex" system. Data can only flow in one direction at a time (sending OR receiving).

It utilizes a "Full-Duplex" system with dual data paths. This allows it to send and receive data simultaneously, drastically improving efficiency.

The good news is that the Type-A connector (the standard rectangular shape) is physically compatible between generations.

While USB 2.0 is still perfectly fine for your mouse and keyboard, USB 3.0 is a must-have for data transfer. When choosing a computer case, always check the I/O panel to ensure you have enough blue USB 3.0 ports to handle your external storage needs.

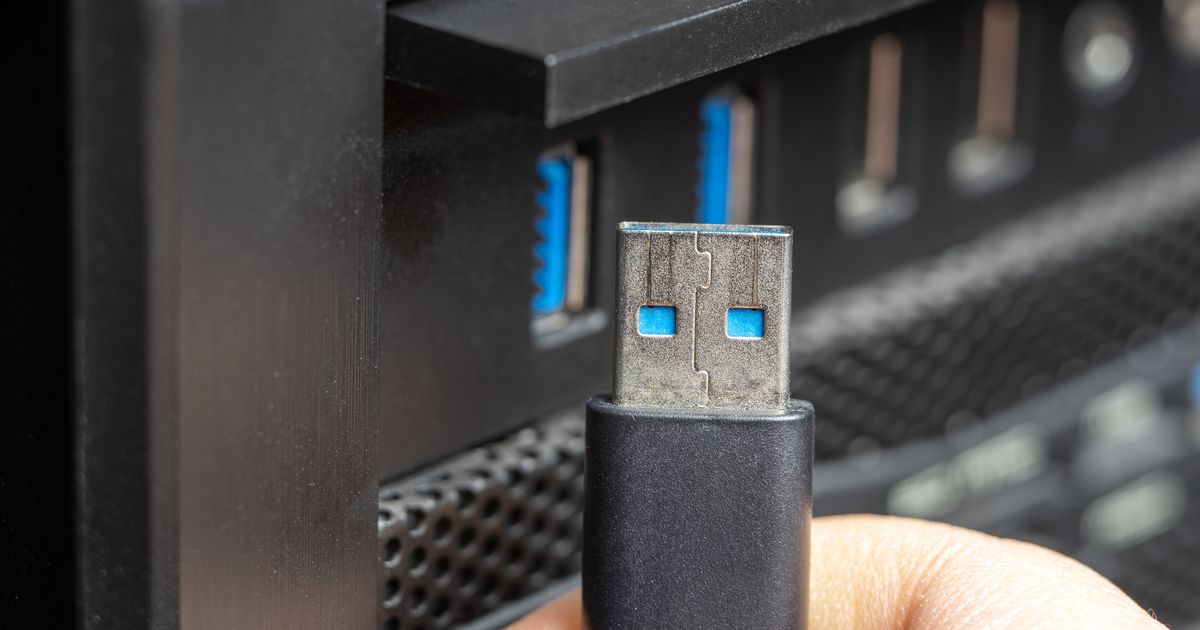

When building or buying a PC, you’ll notice various ports on the case's I/O panel. While they might look similar at first glance, the difference between USB 2.0 and USB 3.0 is significant. Whether you are transferring huge video files or just connecting a mouse, knowing which port to use matters.

Here is the ultimate breakdown of how to tell them apart and why it affects your performance.



The Speed Difference

USB 2.0

Max speed of 480 Mbps (60 MB/s). It is best suited for low-bandwidth peripherals like mice, keyboards, and printers.



USB 3.0

Max speed of 5 Gbps (625 MB/s). This is roughly 10 times faster than USB 2.0, making it essential for external hard drives and thumb drives where speed counts.







Visual Identification (The Color Test)

USB 2.0

Typically Black or White.



USB 3.0

Standardized as Blue. This makes it easy to spot the high-speed ports instantly.

Note: USB 3.0 also features more internal pins (9 pins vs. 4 pins).







How Data Travels (Duplex Capabilities)

USB 2.0 (One-Way Traffic)

It operates on a "Half-Duplex" system. Data can only flow in one direction at a time (sending OR receiving).



USB 3.0 (Two-Way Traffic)

It utilizes a "Full-Duplex" system with dual data paths. This allows it to send and receive data simultaneously, drastically improving efficiency.







Compatibility

The good news is that the Type-A connector (the standard rectangular shape) is physically compatible between generations.





You can plug a USB 3.0 drive into a USB 2.0 port (and vice versa).



However, the speed will always default to the slowest standard involved. Plugging a fast drive into a slow port means you are stuck at USB 2.0 speeds.







Conclusion

While USB 2.0 is still perfectly fine for your mouse and keyboard, USB 3.0 is a must-have for data transfer. When choosing a computer case, always check the I/O panel to ensure you have enough blue USB 3.0 ports to handle your external storage needs.

They might look similar on your PC case, but plugging into the wrong USB port can cost you 10x the speed.

USB 2.0 vs. USB 3.0: Understanding Your PC Case Ports

Choosing the right PC case is just as important as selecting your components. Your case determines compatibility, cooling performance, airflow, fan support, and the overall style of your build. One of the biggest factors to consider is

, which directly relates to the size of the motherboard it can support.

Below is a clear breakdown of the four most common PC case sizes and how to choose the best one for your setup.

PC case sizing is primarily based on motherboard compatibility. The four main sizes—

—range from largest to smallest. A larger case (like E-ATX) can fit smaller motherboards such as ITX, but a small ITX case cannot fit larger boards like ATX or E-ATX.

 and offer the most interior space for expansion, cooling, and advanced airflow setups.

．Modular rear panels for flexible motherboard compatibility

E-ATX cases are ideal for users who want:

．Multi-fan or custom water-cooling setups

．Superior airflow and thermal performance

．A powerful workstation or full-tower gaming system

 option, offering a great mix of space, cooling potential, and ease of building. They support all standard ATX motherboards—from entry-level H-series to top-tier Z-series boards.

．A well-rounded build with solid airflow

．A case size that fits comfortably on or under most desks

Micro-ATX (M-ATX) cases are slightly smaller while still offering plenty of features for mainstream users. M-ATX motherboards have fewer PCIe slots and M.2 slots, but still support most gaming and productivity builds.

M-ATX cases are ideal for users who want:

．A smaller footprint without major compromises

They are excellent for bedrooms, small desks, or office environments.

 option, designed strictly for ITX motherboards. They are popular among gamers and enthusiasts who prioritize portability or a minimalist desk setup.

Because of their small volume, ITX cases often have surprisingly efficient heat dissipation—but they do impose certain limitations:

．Fewer fan and radiator mounting points

When selecting a PC case, always consider:

．Expansion options (storage, PCIe cards)

Understanding the differences between E-ATX, ATX, M-ATX, and ITX cases will help you choose a chassis that fits your hardware, cooling requirements, and workspace—ensuring your build performs well and looks great.





Choosing the right PC case is just as important as selecting your components. Your case determines compatibility, cooling performance, airflow, fan support, and the overall style of your build. One of the biggest factors to consider is case size, which directly relates to the size of the motherboard it can support.

Below is a clear breakdown of the four most common PC case sizes and how to choose the best one for your setup.





(Source: Tech Guided)



Understanding PC Case Sizes

PC case sizing is primarily based on motherboard compatibility. The four main sizes—E-ATX, ATX, M-ATX, and ITX—range from largest to smallest. A larger case (like E-ATX) can fit smaller motherboards such as ITX, but a small ITX case cannot fit larger boards like ATX or E-ATX.





(ACEGEEK Photon E-ATX PC Case)



E-ATX Cases

E-ATX cases are built for high-end, flagship systems and offer the most interior space for expansion, cooling, and advanced airflow setups.

A great example is the Photon, a premium E-ATX case that supports:

．Up to 8 x 120mm fans

．A 360mm AIO radiator at the top

．Modular rear panels for flexible motherboard compatibility



E-ATX cases are ideal for users who want:

．Maximum expansion room

．Multi-fan or custom water-cooling setups

．Superior airflow and thermal performance

．A powerful workstation or full-tower gaming system





(ACEGEEK LunarisFlow ATX PC Case)



ATX Cases

ATX cases are the most common and most balanced option, offering a great mix of space, cooling potential, and ease of building. They support all standard ATX motherboards—from entry-level H-series to top-tier Z-series boards.

ATX cases are perfect if you want:

．A well-rounded build with solid airflow

．Multiple fan and storage options

．A case size that fits comfortably on or under most desks



M-ATX Cases

Micro-ATX (M-ATX) cases are slightly smaller while still offering plenty of features for mainstream users. M-ATX motherboards have fewer PCIe slots and M.2 slots, but still support most gaming and productivity builds.

M-ATX cases are ideal for users who want:

．A smaller footprint without major compromises

．Good airflow and cooling flexibility

．A cleaner, more space-efficient setup



They are excellent for bedrooms, small desks, or office environments.



ITX Cases

ITX cases are the smallest and most compact option, designed strictly for ITX motherboards. They are popular among gamers and enthusiasts who prioritize portability or a minimalist desk setup.

Because of their small volume, ITX cases often have surprisingly efficient heat dissipation—but they do impose certain limitations:

．Typically limited to SFX or SFX-L power supplies

．Fewer fan and radiator mounting points

．Tighter cable-management space







ITX cases are best for users who want:

．A compact or portable PC

．A stylish small-form-factor build

．Efficient airflow in a small chassis







Choosing the Right Case for Your Needs

When selecting a PC case, always consider:

．Motherboard compatibility

．Cooling and fan support

．GPU and CPU cooler clearance

．Expansion options (storage, PCIe cards)

．Desk space and preferred size

．Personal aesthetic preferences



Understanding the differences between E-ATX, ATX, M-ATX, and ITX cases will help you choose a chassis that fits your hardware, cooling requirements, and workspace—ensuring your build performs well and looks great.

Selecting the right motherboard form factor is the first step in ensuring your components have enough room to breathe and maintain stable performance.

How to Choose the Right PC Case for Your Build

 might look complicated—but each part of the code actually tells you important information about the processor’s performance, generation, and special features. Understanding these naming rules helps you pick the right CPU for your needs.

Below is a simple breakdown of how to read both Intel and AMD CPU model numbers.

The series indicates the CPU’s performance tier. Higher numbers generally mean stronger performance.

The first digits after the series represent the generation.

i9-14900K → “14” = 14th Gen Core i9

Newer generations usually mean improvements in architecture, efficiency, and performance.

The numbers following the generation indicate performance variations within the same generation.

a higher SKU number means higher performance

The suffix tells you the CPU’s key features:

AMD follows a similar structure but uses different naming patterns.

The first number after the series indicates the generation.

Ryzen 7 7900X → “7” = 7th-gen Ryzen 7

Newer generations improve efficiency, IPC, and performance within the same tier.

The following numbers identify different performance levels within the same generation.

Higher numbers typically mean faster boost clocks and better overall performance.

Once you understand what each part of a CPU model number represents, choosing the right Intel or AMD processor becomes much easier. Whether you’re upgrading for gaming, productivity, or content creation, reading CPU codes helps you pick the model that best fits your performance needs.

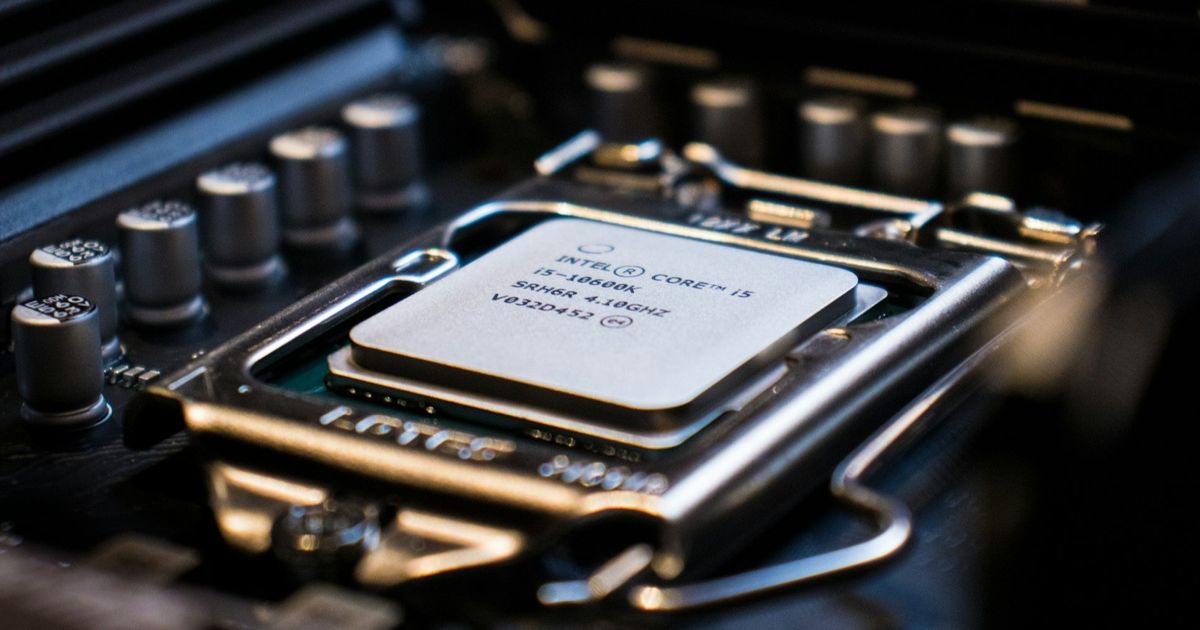

When choosing a CPU, model names like Intel Core i9-14900K or AMD Ryzen 9 7900X might look complicated—but each part of the code actually tells you important information about the processor’s performance, generation, and special features. Understanding these naming rules helps you pick the right CPU for your needs.

Below is a simple breakdown of how to read both Intel and AMD CPU model numbers.



How to Read Intel CPU Model Numbers

Let’s use Intel Core i9-14900K as an example.
It can be divided into four parts: series, generation, SKU number, and suffix.







Series (i3 / i5 / i7 / i9)

The series indicates the CPU’s performance tier. Higher numbers generally mean stronger performance.





Core i3 — Entry level. Best for documents, browsing, video playback.



Core i5 — Mid-range. Good for office tasks and light gaming.



Core i7 — High performance. Suitable for AAA gaming, multitasking, and livestreaming.



Core i9 — Flagship. Designed for heavy gaming, high FPS, content creation, and streaming simultaneously.



Generation

The first digits after the series represent the generation.
Example: i9-14900K → “14” = 14th Gen Core i9.

Newer generations usually mean improvements in architecture, efficiency, and performance.



SKU Number (the remaining digits)

The numbers following the generation indicate performance variations within the same generation.
They differentiate CPUs by clock speed, core count, cache size, and other specifications.

In general, a higher SKU number means higher performance.



Suffix (K, F, etc.)

The suffix tells you the CPU’s key features:





No suffix — Standard model. Balanced performance, no special features.



K — Unlocked for overclocking. Ideal for gamers and streamers who want extra performance.



F — No integrated graphics. Requires a dedicated graphics card.



How to Read AMD CPU Model Numbers

AMD follows a similar structure but uses different naming patterns.
Take Ryzen 7 7900X as an example.







Series (Ryzen 3 / 5 / 7 / 9)





Ryzen 3 — Entry-level. Good for office tasks, browsing, and light games.



Ryzen 5 — Mainstream. Good for gamers and general creators.



Ryzen 7 — High-end. Great for AAA gaming and content creation.



Ryzen 9 — Flagship. Excellent for heavy workloads, streaming, and top-tier gaming.



Generation

The first number after the series indicates the generation.
Example: Ryzen 7 7900X → “7” = 7th-gen Ryzen 7.

Newer generations improve efficiency, IPC, and performance within the same tier.



SKU Number

The following numbers identify different performance levels within the same generation.
Higher numbers typically mean faster boost clocks and better overall performance.



Suffix (X, X3D, F)





F — No integrated graphics. Requires a dedicated GPU.



X — Higher base and boost clocks for stronger performance.



X3D — Same as X-series but with AMD 3D V-Cache, offering significantly better gaming performance.







Final Thoughts

Once you understand what each part of a CPU model number represents, choosing the right Intel or AMD processor becomes much easier. Whether you’re upgrading for gaming, productivity, or content creation, reading CPU codes helps you pick the model that best fits your performance needs.

Intel and AMD CPU codes look complex, but they’re easy to understand once you know what each part represents.

What Do the Codes After Intel and AMD CPU Model Numbers Actually Mean?

, is the high-speed interface standard found on modern motherboards. It acts as a direct connection between your system and key components such as graphics cards, SSDs, capture cards, and network cards—ensuring fast, stable data transfer for demanding tasks.

, giving each device its own dedicated data path. This architecture allows PCIe to deliver much faster transfer speeds compared to older shared-bus standards.

PCIe also evolves in generations (PCIe 3.0, 4.0, 5.0), with each new version offering

 the slot includes, similar to how a multi-lane highway allows more traffic.

A larger lane count means higher bandwidth and better performance for high-demand devices.

PCIe slots and devices are backward compatible.

For example, a PCIe 4.0 card will work in a PCIe 3.0 slot—but it will operate at

Common PCIe Device Types and Recommended Slots

 GPUs require maximum bandwidth for rendering and computation. The x16 slot provides the ideal throughput for top performance.

 Most NVMe SSDs run through M.2 slots using PCIe x4 lanes. If your motherboard lacks enough M.2 slots, an expansion card in a PCIe x4 slot can be used without bottlenecking the SSD.

 Standard network cards require minimal bandwidth, making x1 slots sufficient. For multi-gigabit or enterprise-grade NICs, an x4 slot offers better stability.

 Capture cards handle high-bandwidth video streams, especially for streaming or content creation. Wider lanes ensure smooth recording and low latency.

Important Things to Consider When Using PCIe

If you install a high-bandwidth device (like a GPU) into a low-lane slot, performance will be limited. Always pair demanding hardware with the correct slot size.

PCIe cards must physically fit into the slot.

This slot often provides the best bandwidth and lowest latency. Installing high-priority devices in the correct slot ensures maximum performance.

PCIe slots play a crucial role in expanding the capabilities of your PC. Understanding the different PCIe sizes, lane counts, and recommended use cases helps you optimize system performance and choose the right slot for each component. Whether you’re adding a new GPU, installing more storage, or upgrading your network hardware, selecting the proper PCIe slot ensures your system runs at its full potential.

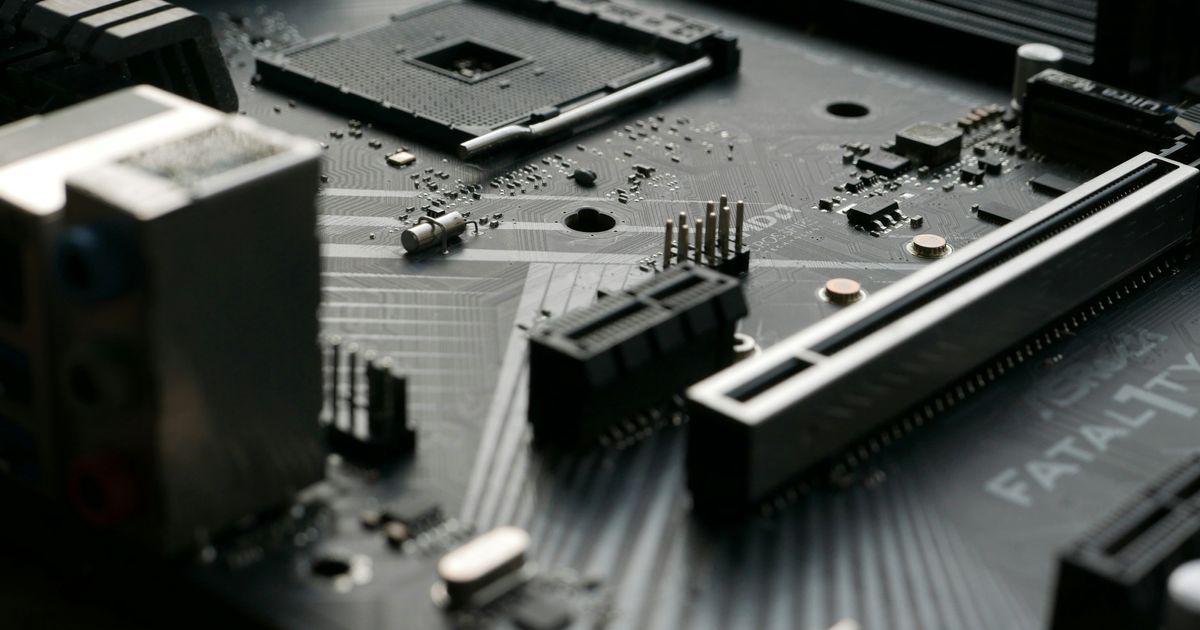

PCIe, short for PCI Express, is the high-speed interface standard found on modern motherboards. It acts as a direct connection between your system and key components such as graphics cards, SSDs, capture cards, and network cards—ensuring fast, stable data transfer for demanding tasks.



Key Features of PCIe

High-Speed, Direct Data Transfer

PCIe uses a point-to-point serial connection, giving each device its own dedicated data path. This architecture allows PCIe to deliver much faster transfer speeds compared to older shared-bus standards.

PCIe also evolves in generations (PCIe 3.0, 4.0, 5.0), with each new version offering significantly higher bandwidth than the one before it.



Multiple Slot Sizes and Lane Counts

PCIe slots come in several sizes—x1, x4, x8, and x16.
The number represents how many data lanes the slot includes, similar to how a multi-lane highway allows more traffic.





x1 = 1 lane



x16 = 16 lanes (highest bandwidth)

A larger lane count means higher bandwidth and better performance for high-demand devices.



Backward Compatibility

PCIe slots and devices are backward compatible.
For example, a PCIe 4.0 card will work in a PCIe 3.0 slot—but it will operate at PCIe 3.0 speeds.







Common PCIe Device Types and Recommended Slots

Graphics Card (GPU)

Recommended Slot: PCIe x16
Why: GPUs require maximum bandwidth for rendering and computation. The x16 slot provides the ideal throughput for top performance.



Solid-State Drive (SSD)

Recommended Slot: PCIe x4 (via M.2 or PCIe adapter)
Why: Most NVMe SSDs run through M.2 slots using PCIe x4 lanes. If your motherboard lacks enough M.2 slots, an expansion card in a PCIe x4 slot can be used without bottlenecking the SSD.



Network Card (NIC)

Recommended Slot: PCIe x1 or x4
Why: Standard network cards require minimal bandwidth, making x1 slots sufficient. For multi-gigabit or enterprise-grade NICs, an x4 slot offers better stability.



Capture Card

Recommended Slot: PCIe x4 or x8
Why: Capture cards handle high-bandwidth video streams, especially for streaming or content creation. Wider lanes ensure smooth recording and low latency.







Important Things to Consider When Using PCIe

Match the Bandwidth to the Device

If you install a high-bandwidth device (like a GPU) into a low-lane slot, performance will be limited. Always pair demanding hardware with the correct slot size.



Check Physical Fit

PCIe cards must physically fit into the slot.





Small cards (x1) can fit into larger slots (x4/x8/x16)



Large cards (x16) cannot fit into smaller slots



Slot Priority on Motherboards

Most motherboards reserve the top PCIe x16 slot, closest to the CPU, for the GPU.
This slot often provides the best bandwidth and lowest latency. Installing high-priority devices in the correct slot ensures maximum performance.







Conclusion

PCIe slots play a crucial role in expanding the capabilities of your PC. Understanding the different PCIe sizes, lane counts, and recommended use cases helps you optimize system performance and choose the right slot for each component. Whether you’re adding a new GPU, installing more storage, or upgrading your network hardware, selecting the proper PCIe slot ensures your system runs at its full potential.

What Is PCIe on a Motherboard?

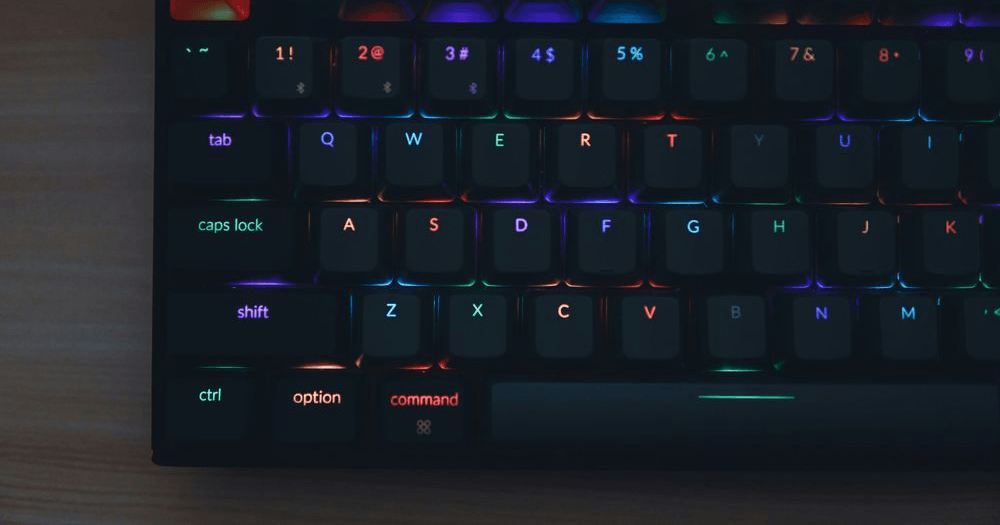

RGB lighting is now a core element of gaming setups, appearing in fans, keyboards, and nearly every modern PC component. But while

 are often mentioned together, they’re not the same. Here’s a clear, updated guide to help you understand the difference.

RGB (Red, Green, Blue) combines three primary colors to produce different lighting effects. Traditional RGB systems can only display

 at a time, meaning all LEDs light up in the same color simultaneously.

. This enables more dynamic effects such as gradients, moving waves, or rainbow animations. ARGB offers far greater flexibility and visual impact compared to standard RGB.

. Because 12V RGB headers are not interchangeable with ARGB headers, incorrect installation can cause damage—so it’s important to follow your motherboard’s instructions.

, designed with a built-in alignment guide to prevent improper installation. This makes ARGB generally safer and easier to connect.

The key difference between RGB and ARGB is the level of control you have over your LEDs. RGB delivers straightforward lighting with minimal setup, while ARGB opens the door to richer, more customizable effects. Understanding the difference will help you pick the right lighting system for your build—whether you prefer simplicity or a fully personalized glow.





RGB lighting is now a core element of gaming setups, appearing in fans, keyboards, and nearly every modern PC component. But while RGB and ARGB are often mentioned together, they’re not the same. Here’s a clear, updated guide to help you understand the difference.



Understanding RGB and ARGB

What Is RGB?

RGB (Red, Green, Blue) combines three primary colors to produce different lighting effects. Traditional RGB systems can only display one uniform color at a time, meaning all LEDs light up in the same color simultaneously.



What Is ARGB?

ARGB stands for Addressable RGB, which allows each LED to be individually controlled. This enables more dynamic effects such as gradients, moving waves, or rainbow animations. ARGB offers far greater flexibility and visual impact compared to standard RGB.







How They Connect: RGB vs. ARGB Headers

RGB Connections (12V 4-Pin)

RGB devices typically use a 4-pin 12V connector. Because 12V RGB headers are not interchangeable with ARGB headers, incorrect installation can cause damage—so it’s important to follow your motherboard’s instructions.



ARGB Connections (5V 3-Pin)

ARGB uses a 3-pin 5V connector, designed with a built-in alignment guide to prevent improper installation. This makes ARGB generally safer and easier to connect.







Lighting Effects Compared

RGB Lighting





Basic lighting modes



No individual LED control



All LEDs show the same color or pattern



Great for simple, unified lighting setups

ARGB Lighting





Individual LED control



Supports advanced animations and multi-zone effects



Ideal for users who want detailed customization



The current standard for gaming peripherals and fans







Which Should You Choose? RGB or ARGB?

Choose RGB If You Want:





A more budget-friendly option



Simple, plug-and-play lighting



A consistent single-color look without complex effects

Choose ARGB If You Want:





Maximum customization and full LED control



Dynamic, animated lighting effects



A more premium and visually engaging setup







Conclusion

The key difference between RGB and ARGB is the level of control you have over your LEDs. RGB delivers straightforward lighting with minimal setup, while ARGB opens the door to richer, more customizable effects. Understanding the difference will help you pick the right lighting system for your build—whether you prefer simplicity or a fully personalized glow.

They look alike, but RGB and ARGB deliver very different lighting effects.

RGB vs. ARGB Lighting: What’s the Real Difference?

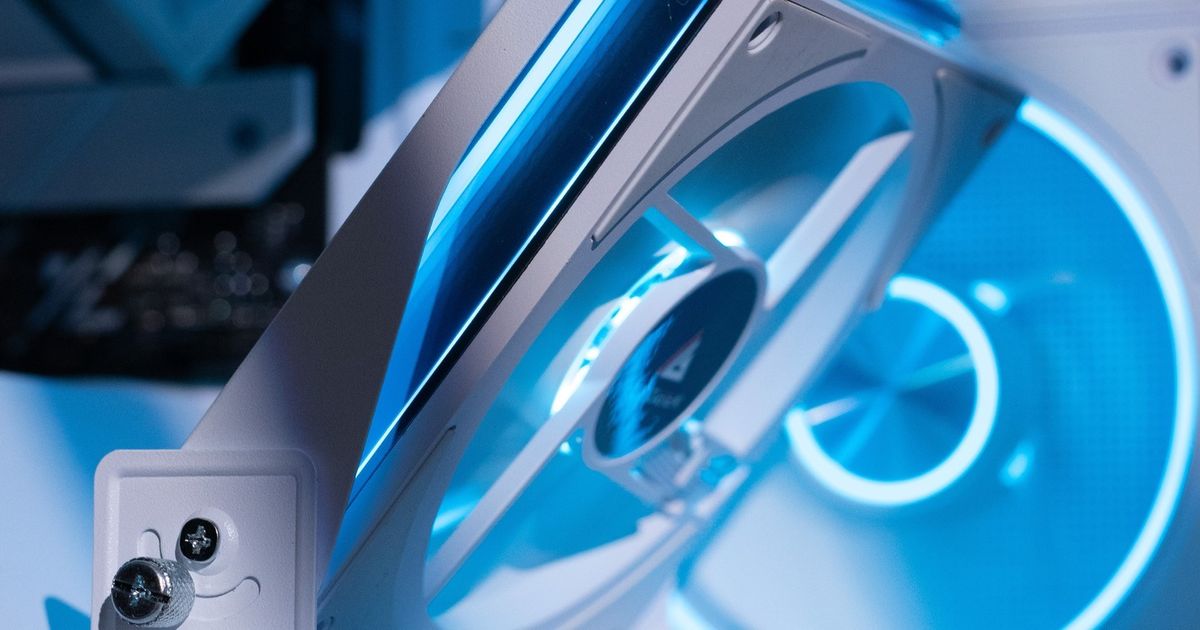

When shopping for PC fans, you’ll often come across connectors that are either

. If you don’t fully understand the difference, you might end up with a fan that your motherboard can’t properly control, or find yourself confused about where to plug it in during installation.

This guide will quickly walk you through the differences between 3-pin and 4-pin connectors, explain their functions, and help you decide which type of fan is the better choice for your build.

How to Tell the Difference Between 3-Pin and 4-Pin Fans

It’s actually very simple to distinguish between them. Here are two easy methods:

Look at the fan’s packaging or user manual:

The Difference Between 3-Pin and 4-Pin Fans

These are entry-level fans. The motherboard adjusts the fan speed by changing the voltage, but the level of control is quite limited.

These include an extra control wire that delivers precise PWM signals. This allows the fan to automatically adjust its speed based on system temperature. PWM fans generally provide faster response, smoother control, and quieter operation.

if you’re a performance-focused gamer or power user who values cooling efficiency, quiet operation, and fast thermal response. With PWM functionality, these fans automatically adjust speed for the perfect balance of performance and noise.

if you’re more budget-conscious and your system doesn’t generate heavy heat loads. For basic case airflow, 3-pin fans are a cost-effective and perfectly adequate choice.

When shopping for PC fans, you’ll often come across connectors that are either 3-pin or 4-pin. If you don’t fully understand the difference, you might end up with a fan that your motherboard can’t properly control, or find yourself confused about where to plug it in during installation.



This guide will quickly walk you through the differences between 3-pin and 4-pin connectors, explain their functions, and help you decide which type of fan is the better choice for your build.



How to Tell the Difference Between 3-Pin and 4-Pin Fans

It’s actually very simple to distinguish between them. Here are two easy methods:



Method 1 | Metal Pins





3-pin fans: three metal pins for ground, power, and RPM feedback.



4-pin fans: include an extra pin for PWM (Pulse Width Modulation) control.



Method 2 | Check the Product Specs

Look at the fan’s packaging or user manual:





If you see PWM mentioned → it’s a 4-pin fan.



If it only says DC Fan or doesn’t mention PWM → it’s a 3-pin fan.



The Difference Between 3-Pin and 4-Pin Fans

3-Pin Fans

These are entry-level fans. The motherboard adjusts the fan speed by changing the voltage, but the level of control is quite limited.



4-Pin Fans (PWM Fans)

These include an extra control wire that delivers precise PWM signals. This allows the fan to automatically adjust its speed based on system temperature. PWM fans generally provide faster response, smoother control, and quieter operation.







Should I Choose a 3-Pin or 4-Pin Fan?

Choose 4-Pin Fans

if you’re a performance-focused gamer or power user who values cooling efficiency, quiet operation, and fast thermal response. With PWM functionality, these fans automatically adjust speed for the perfect balance of performance and noise.



Choose 3-Pin Fans

if you’re more budget-conscious and your system doesn’t generate heavy heat loads. For basic case airflow, 3-pin fans are a cost-effective and perfectly adequate choice.





Quickly Spot the Difference Between 3-Pin and 4-Pin Fans — Master Fan Control and Avoid Buying Mistakes!

PC Fan: 3-Pin or 4-Pin? Here’s What You Need to Know

Acegeek offers high-quality computer cases, cooling solutions, power supplies, and peripherals. Explore our website for top-notch products & accessories.

Blog

USB 3.2, Gen 2, and Type-C: Decoding the Speed of Modern Connectivity
