Maintenance & Cleaning

Modern graphics cards are engineering marvels, but they’ve also become massive. As cooling modules grow thicker to handle high TDPs, the sheer weight of these "triple-slot" monsters puts immense pressure on your motherboard’s PCIe slot.

 can lead to long-term structural damage or even cracked PCBs. Here is how to choose the right support to keep your build level and safe.

The Horizontal Pillar (Stand-alone) Bracket

The most robust solution on the market, these brackets stand on the bottom of your case or the PSU shroud to provide a solid vertical lift.

The Expansion Slot (PCIe-Mounted) Bracket

This type screws directly into the case's PCIe expansion slots, running parallel underneath the GPU.

A minimalist’s dream. These small, screw-mechanism cylinders act like a tiny car jack for your GPU.

If you have a modern mid-range to high-end GPU, the answer is likely

. While many premium cards now come with basic brackets in the box, they often lack the aesthetic appeal or the precise adjustability of aftermarket solutions.





Modern graphics cards are engineering marvels, but they’ve also become massive. As cooling modules grow thicker to handle high TDPs, the sheer weight of these "triple-slot" monsters puts immense pressure on your motherboard’s PCIe slot.

This isn't just about aesthetics; GPU sag can lead to long-term structural damage or even cracked PCBs. Here is how to choose the right support to keep your build level and safe.



The Horizontal Pillar (Stand-alone) Bracket

The most robust solution on the market, these brackets stand on the bottom of your case or the PSU shroud to provide a solid vertical lift.





Best for: Massive, flagship GPUs (RTX 4090/4080 level).



Trade-off: It occupies space on the bottom of the case, which might interfere with bottom-mounted intake fans.



The Expansion Slot (PCIe-Mounted) Bracket

This type screws directly into the case's PCIe expansion slots, running parallel underneath the GPU.





Best for: Mid-to-large GPUs in cases where bottom space is limited.



Pros: Keeps the bottom of the case clean for maximum airflow or fans.



Trade-off: Since it relies on the case’s rear frame, it has slightly more "flex" than a standing pillar and may offer less support for extremely heavy cards.



The Jack-Style (Telescopic) Support

A minimalist’s dream. These small, screw-mechanism cylinders act like a tiny car jack for your GPU.





Best for: Minimalist or compact builds where space is at a premium.



Pros: Extremely discreet and easy to install.



Trade-off: Limited height range. If your GPU is positioned very high above the PSU shroud, a small jack might not reach it.



Final Verdict: Do You Really Need One?

If you have a modern mid-range to high-end GPU, the answer is likely yes. While many premium cards now come with basic brackets in the box, they often lack the aesthetic appeal or the precise adjustability of aftermarket solutions.

Learn how to choose the perfect support bracket to eliminate sag and protect your motherboard.

To Sag or Not to Sag: The Ultimate Guide to GPU Support Brackets

Perawatan & Pembersihan

Pelajari cara memilih braket penyangga yang tepat untuk menghilangkan kemiringan dan melindungi motherboard Anda.

Apakah Harus Melengkung atau Tidak: Panduan Lengkap untuk Braket Penopang GPU

Future Trends

If you have ever felt confused by the alphabet soup of USB naming conventions, you are not alone. With the evolution from USB 3.0 to the latest USB 3.2 Gen 2, keeping track of transfer speeds has become a challenge for even seasoned DIY builders.

The most important thing to remember is that the "Generation" (Gen) tells you more about the speed than the version number itself. Here is the breakdown of how the industry has renamed these specifications over time:

, don’t be misled by version names—the most critical factor is checking the actual

What is USB Type-C? (It’s Not a Speed!)

A common misconception is that "Type-C" refers to the speed of the connection. In reality,

, not a transfer protocol. You can have a Type-C port that runs at slow USB 2.0 speeds or blazing-fast USB 3.2 Gen 2 speeds.

Having a high-speed motherboard is only half the battle; you need a front I/O panel that can actually handle the throughput.

 on the front or top panel. This allows gamers and content creators to access transfer speeds of up to

 without having to crawl behind their desks to reach the back of the motherboard. This connection is essential for:

When building your next PC, ensure your case and motherboard are on the same page. By choosing a high-airflow

 equipped with the latest USB 3.2 Gen 2 Type-C support, you ensure that your rig is ready for the next generation of high-speed devices.



(ACEGEEK LunarisFlow ATX PC Case, with USB Type-C)



If you have ever felt confused by the alphabet soup of USB naming conventions, you are not alone. With the evolution from USB 3.0 to the latest USB 3.2 Gen 2, keeping track of transfer speeds has become a challenge for even seasoned DIY builders.



The Naming Confusion: Speed vs. Version

The most important thing to remember is that the "Generation" (Gen) tells you more about the speed than the version number itself. Here is the breakdown of how the industry has renamed these specifications over time:











5Gbps Speed: USB 3.0 is equivalent to USB 3.1 Gen 1 and USB 3.2 Gen 1.



10Gbps Speed: USB 3.1 Gen 2 is equivalent to USB 3.2 Gen 2.

When purchasing a new motherboard or a case, don’t be misled by version names—the most critical factor is checking the actual transfer speed listed in the specs.



What is USB Type-C? (It’s Not a Speed!)

A common misconception is that "Type-C" refers to the speed of the connection. In reality, USB Type-C is merely a connector type, not a transfer protocol. You can have a Type-C port that runs at slow USB 2.0 speeds or blazing-fast USB 3.2 Gen 2 speeds.

Key Advantages of the Type-C Interface:





Reversible Design: Unlike the traditional rectangular USB-A, Type-C is oval-shaped and can be plugged in either way.



High Power Delivery: It supports significantly faster charging and power delivery for mobile devices and laptops.



Space-Saving: Its small footprint allows for sleeker, modern PC cases and thinner portable devices.







Why Your PC Case Choice Matters

Having a high-speed motherboard is only half the battle; you need a front I/O panel that can actually handle the throughput.

Most modern ACEGEEK chassis models feature a dedicated USB 3.2 Gen 2 Type-C port on the front or top panel. This allows gamers and content creators to access transfer speeds of up to 10Gbps without having to crawl behind their desks to reach the back of the motherboard. This connection is essential for:





Fast-loading external SSDs used for game libraries.



High-resolution video editing from external drives.



Stable, high-speed data syncing for modern peripherals.





(ACEGEEK LunarisFlow ATX PC Case, with USB Type-C)



Conclusion: Future-Proof Your Build

When building your next PC, ensure your case and motherboard are on the same page. By choosing a high-airflow ACEGEEK case equipped with the latest USB 3.2 Gen 2 Type-C support, you ensure that your rig is ready for the next generation of high-speed devices.

Stop settling for "turtle-speed" data transfers, master the secrets of USB 3.2 and Type-C to unlock the full performance of your modern PC build.

USB 3.2, Gen 2, and Type-C: Decoding the Speed of Modern Connectivity

Tren Masa Depan

Jangan lagi puas dengan transfer data yang sangat lambat, kuasai rahasia USB 3.2 dan Type-C untuk memaksimalkan performa PC modern Anda.

USB 3.2, Gen 2, dan Type-C: Menguraikan Kecepatan Konektivitas Modern

Buying Guides

Building your own PC is more than just a tech project; it’s a rite of passage for every true gamer and creator. While the process might seem daunting at first, it is incredibly rewarding to press that power button for the first time and see your creation come to life.

Before you buy a single screw, you must determine your usage needs. Are you building a competitive gaming rig, a professional workstation for content creation, or a silent office machine?

Defining your goal prevents two major beginner mistakes:

Step 2: The Anatomy of a High-Performance PC

To build a functional system, you need these essential building blocks:

The best way to ensure compatibility is to use a planning tool.

Step 4: Essential Tools for a Smooth Install

You don't need a professional workshop, but these three things are non-negotiable:

Your build isn't finished once it's assembled. Dust is a silent performance killer that traps heat. To keep your FPS high, we recommend a

 makes this maintenance as simple as peeling off the filter and wiping it down.

Whether you are looking for a sleek panoramic view or a high-airflow mesh beast, we have the gear to keep your frames high and your temps low.





Building your own PC is more than just a tech project; it’s a rite of passage for every true gamer and creator. While the process might seem daunting at first, it is incredibly rewarding to press that power button for the first time and see your creation come to life.



Step 1: Define Your Mission

Before you buy a single screw, you must determine your usage needs. Are you building a competitive gaming rig, a professional workstation for content creation, or a silent office machine?







Defining your goal prevents two major beginner mistakes:





Buying incompatible components.



Overspending on parts that don't actually improve your specific experience.



Step 2: The Anatomy of a High-Performance PC

To build a functional system, you need these essential building blocks:





CPU (Processor): The brain that executes all instructions.



CPU Cooler: Essential for preventing Thermal Throttling. Modern processors often require an upgrade to an AIO Liquid Cooler to maintain stable boost clocks during heavy loads.



Motherboard: The central nervous system that connects everything.



RAM (Memory): Temporary storage for active data. For maximum performance, always use dual-channel configurations (two sticks instead of one).



Storage (NVMe SSD): Modern games and apps should always be installed on an NVMe SSD to avoid loading stalls and stuttering.



Graphics Card (GPU): The heart of gaming and rendering. To keep your GPU healthy, ensure your PC case has dedicated fans directing air straight to the card.



Power Supply Unit (PSU): Often overlooked, but critical. A high-quality, high-wattage PSU ensures your system gets clean, stable power even during intense scenes.



PC Case: More than just a box, a great case provides the airflow and dust filtration needed to protect your investment.







Step 3: Architecting Your Build

The best way to ensure compatibility is to use a planning tool.





(PCPartPicker)







Use a Compatibility Checker: Websites like PCPartPicker allow you to virtually assemble your components to check for size constraints and power requirements.



Focus on Airflow: When choosing your chassis, look for models with louvered panels or mesh designs to maximize cold air intake.



Choose the Right Fans: Don't just look at RGB. Check the bearing type. For a gaming PC, Hydro (Hydraulic) Bearing fans are the "sweet spot," offering a whisper-quiet experience with a long lifespan.



Step 4: Essential Tools for a Smooth Install

You don't need a professional workshop, but these three things are non-negotiable:











Magnetic Screwdriver: This is your best friend. It prevents tiny screws from falling into the dark crevices of your motherboard or PSU shroud.



Cable Management Supplies: Use zip ties or Velcro straps to keep cables organized. Good cable management isn't just for looks; it improves overall system airflow.



The Component Manuals: Even pros check the manual. It contains vital information on front-panel header locations and RAM slot priority.



Step 5: Maintenance for Longevity

Your build isn't finished once it's assembled. Dust is a silent performance killer that traps heat. To keep your FPS high, we recommend a quick cleaning every 3-6 months. Using a case with easy-to-remove dust filters makes this maintenance as simple as peeling off the filter and wiping it down.









Pro Tip: If you are mounting fans on the top radiator of your case, always opt for Hydro bearings. Unlike cheap sleeve bearings, they aren't affected by gravity and won't fail prematurely when mounted horizontally.



Build Your Future with ACEGEEK

Whether you are looking for a sleek panoramic view or a high-airflow mesh beast, we have the gear to keep your frames high and your temps low.

Stop losing FPS and start building like a pro with the ultimate guide to mastering PC performance and DIY assembly.

Master the Art of PC Building: The Ultimate 2025 DIY Beginner’s Guide

Panduan Pembelian

Hentikan penurunan FPS dan mulailah merakit PC seperti seorang profesional dengan panduan utama untuk menguasai performa PC dan perakitan DIY.

Kuasai Seni Merakit PC: Panduan Pemula DIY Terbaik 2025

When choosing a CPU cooler—whether air or liquid—performance is just as important as aesthetics. But how do you accurately evaluate a cooler’s capabilities? This is where the term

 comes into play. Understanding TDP helps you select the right cooling solution for your needs, ensuring your system runs at peak efficiency.

, refers to the maximum amount of heat a component (typically a CPU or GPU) generates under a heavy theoretical load. In simpler terms, it is a standardized measure of heat output used to determine the cooling requirements for that specific component.

While TDP is listed for both CPUs and coolers, the meaning differs slightly between the two:

. A higher TDP indicates that the processor generates more heat, which typically correlates with higher processing power and performance.

. A cooler’s TDP rating tells you the maximum heat output it can effectively dissipate.

How to Choose the Right Cooler Based on CPU TDP

When selecting a cooler, it is essential to match the cooler’s TDP rating with the thermal output of your CPU. To ensure stability, it is often recommended to choose a cooler with a TDP rating that

Standard mid-range processors often have a base power around 65W but can reach much higher levels (e.g., 150W+) during turbo or boost frequencies. For these chips, a

 with multiple copper heat pipes is usually sufficient. A cooler rated for 200W TDP provides excellent "headroom," allowing the CPU to maintain higher clock speeds for longer periods.

Flagship processors generate significantly more heat, often exceeding 250W under full load. In these scenarios, air cooling may struggle to keep temperatures within safe limits. An

 is generally the better option here. Liquid coolers with large radiators (such as 360mm models) often feature TDP ratings of 300W or higher, providing the thermal dissipation required for heavy workloads like video rendering or 4K gaming.

TDP is a critical factor because it prevents "thermal throttling"—a safety feature where the CPU slows itself down to prevent damage from overheating. By choosing a cooler that matches or exceeds your CPU's thermal requirements, you ensure:

 No unexpected crashes during heavy tasks.

 Your CPU can stay in its "Turbo" state longer.

 Components last longer when kept at lower operating temperatures.

Whether you are building a budget workstation or a high-performance gaming rig, checking the TDP values of both your CPU and your cooler is essential. Always aim for a cooler that can handle more than your CPU's peak output to ensure a quiet, stable, and high-performing system.





When choosing a CPU cooler—whether air or liquid—performance is just as important as aesthetics. But how do you accurately evaluate a cooler’s capabilities? This is where the term TDP (Thermal Design Power) comes into play. Understanding TDP helps you select the right cooling solution for your needs, ensuring your system runs at peak efficiency.



What is TDP?

TDP, or Thermal Design Power, refers to the maximum amount of heat a component (typically a CPU or GPU) generates under a heavy theoretical load. In simpler terms, it is a standardized measure of heat output used to determine the cooling requirements for that specific component.



While TDP is listed for both CPUs and coolers, the meaning differs slightly between the two:



．On a CPU: TDP represents the heat output. A higher TDP indicates that the processor generates more heat, which typically correlates with higher processing power and performance.

．On a Cooler: TDP indicates cooling capacity. A cooler’s TDP rating tells you the maximum heat output it can effectively dissipate.



In short: A CPU’s TDP indicates how much heat it produces, while a cooler’s TDP rating tells you how much heat it can handle.







How to Choose the Right Cooler Based on CPU TDP

When selecting a cooler, it is essential to match the cooler’s TDP rating with the thermal output of your CPU. To ensure stability, it is often recommended to choose a cooler with a TDP rating that exceeds the CPU's maximum power draw.



For Mid-Range CPUs

Standard mid-range processors often have a base power around 65W but can reach much higher levels (e.g., 150W+) during turbo or boost frequencies. For these chips, a high-quality air cooler with multiple copper heat pipes is usually sufficient. A cooler rated for 200W TDP provides excellent "headroom," allowing the CPU to maintain higher clock speeds for longer periods.



For High-End or Enthusiast CPUs

Flagship processors generate significantly more heat, often exceeding 250W under full load. In these scenarios, air cooling may struggle to keep temperatures within safe limits. An All-in-One (AIO) liquid cooler is generally the better option here. Liquid coolers with large radiators (such as 360mm models) often feature TDP ratings of 300W or higher, providing the thermal dissipation required for heavy workloads like video rendering or 4K gaming.







Why Understanding TDP Matters

TDP is a critical factor because it prevents "thermal throttling"—a safety feature where the CPU slows itself down to prevent damage from overheating. By choosing a cooler that matches or exceeds your CPU's thermal requirements, you ensure:



．System Stability: No unexpected crashes during heavy tasks.

．Optimal Performance: Your CPU can stay in its "Turbo" state longer.

．Longevity: Components last longer when kept at lower operating temperatures.



Summary

Whether you are building a budget workstation or a high-performance gaming rig, checking the TDP values of both your CPU and your cooler is essential. Always aim for a cooler that can handle more than your CPU's peak output to ensure a quiet, stable, and high-performing system.

Unlock the secret to a whisper-quiet, high-performance build by understanding how TDP actually dictates your PC's stability.

Understanding TDP: The Key to PC Stability

Ungkap rahasia rakitan PC berperforma tinggi dan senyap dengan memahami bagaimana TDP sebenarnya menentukan stabilitas PC Anda.

Memahami TDP: Kunci Stabilitas PC

When building or buying a PC, you’ll notice various ports on the case's I/O panel. While they might look similar at first glance, the difference between USB 2.0 and USB 3.0 is significant. Whether you are transferring huge video files or just connecting a mouse, knowing which port to use matters.

Here is the ultimate breakdown of how to tell them apart and why it affects your performance.

. It is best suited for low-bandwidth peripherals like mice, keyboards, and printers.

 than USB 2.0, making it essential for external hard drives and thumb drives where speed counts.

. This makes it easy to spot the high-speed ports instantly.

Note: USB 3.0 also features more internal pins (9 pins vs. 4 pins).

t operates on a "Half-Duplex" system. Data can only flow in one direction at a time (sending OR receiving).

It utilizes a "Full-Duplex" system with dual data paths. This allows it to send and receive data simultaneously, drastically improving efficiency.

The good news is that the Type-A connector (the standard rectangular shape) is physically compatible between generations.

While USB 2.0 is still perfectly fine for your mouse and keyboard, USB 3.0 is a must-have for data transfer. When choosing a computer case, always check the I/O panel to ensure you have enough blue USB 3.0 ports to handle your external storage needs.





When building or buying a PC, you’ll notice various ports on the case's I/O panel. While they might look similar at first glance, the difference between USB 2.0 and USB 3.0 is significant. Whether you are transferring huge video files or just connecting a mouse, knowing which port to use matters.

Here is the ultimate breakdown of how to tell them apart and why it affects your performance.



The Speed Difference

USB 2.0

Max speed of 480 Mbps (60 MB/s). It is best suited for low-bandwidth peripherals like mice, keyboards, and printers.



USB 3.0

Max speed of 5 Gbps (625 MB/s). This is roughly 10 times faster than USB 2.0, making it essential for external hard drives and thumb drives where speed counts.







Visual Identification (The Color Test)

USB 2.0

Typically Black or White.



USB 3.0

Standardized as Blue. This makes it easy to spot the high-speed ports instantly.

Note: USB 3.0 also features more internal pins (9 pins vs. 4 pins).







How Data Travels (Duplex Capabilities)

USB 2.0 (One-Way Traffic)

It operates on a "Half-Duplex" system. Data can only flow in one direction at a time (sending OR receiving).



USB 3.0 (Two-Way Traffic)

It utilizes a "Full-Duplex" system with dual data paths. This allows it to send and receive data simultaneously, drastically improving efficiency.







Compatibility

The good news is that the Type-A connector (the standard rectangular shape) is physically compatible between generations.





You can plug a USB 3.0 drive into a USB 2.0 port (and vice versa).



However, the speed will always default to the slowest standard involved. Plugging a fast drive into a slow port means you are stuck at USB 2.0 speeds.







Conclusion

While USB 2.0 is still perfectly fine for your mouse and keyboard, USB 3.0 is a must-have for data transfer. When choosing a computer case, always check the I/O panel to ensure you have enough blue USB 3.0 ports to handle your external storage needs.

They might look similar on your PC case, but plugging into the wrong USB port can cost you 10x the speed.

USB 2.0 vs. USB 3.0: Understanding Your PC Case Ports

Meskipun terlihat serupa di casing PC Anda, mencolokkan ke port USB yang salah dapat mengurangi kecepatan hingga 10 kali lipat.

USB 2.0 vs. USB 3.0: Memahami Port Casing PC Anda

Choosing the right PC case is just as important as selecting your components. Your case determines compatibility, cooling performance, airflow, fan support, and the overall style of your build. One of the biggest factors to consider is

, which directly relates to the size of the motherboard it can support.

Below is a clear breakdown of the four most common PC case sizes and how to choose the best one for your setup.

PC case sizing is primarily based on motherboard compatibility. The four main sizes—

—range from largest to smallest. A larger case (like E-ATX) can fit smaller motherboards such as ITX, but a small ITX case cannot fit larger boards like ATX or E-ATX.

 and offer the most interior space for expansion, cooling, and advanced airflow setups.

．Modular rear panels for flexible motherboard compatibility

E-ATX cases are ideal for users who want:

．Multi-fan or custom water-cooling setups

．Superior airflow and thermal performance

．A powerful workstation or full-tower gaming system

 option, offering a great mix of space, cooling potential, and ease of building. They support all standard ATX motherboards—from entry-level H-series to top-tier Z-series boards.

．A well-rounded build with solid airflow

．A case size that fits comfortably on or under most desks

Micro-ATX (M-ATX) cases are slightly smaller while still offering plenty of features for mainstream users. M-ATX motherboards have fewer PCIe slots and M.2 slots, but still support most gaming and productivity builds.

M-ATX cases are ideal for users who want:

．A smaller footprint without major compromises

They are excellent for bedrooms, small desks, or office environments.

 option, designed strictly for ITX motherboards. They are popular among gamers and enthusiasts who prioritize portability or a minimalist desk setup.

Because of their small volume, ITX cases often have surprisingly efficient heat dissipation—but they do impose certain limitations:

．Fewer fan and radiator mounting points

When selecting a PC case, always consider:

．Expansion options (storage, PCIe cards)

Understanding the differences between E-ATX, ATX, M-ATX, and ITX cases will help you choose a chassis that fits your hardware, cooling requirements, and workspace—ensuring your build performs well and looks great.





Choosing the right PC case is just as important as selecting your components. Your case determines compatibility, cooling performance, airflow, fan support, and the overall style of your build. One of the biggest factors to consider is case size, which directly relates to the size of the motherboard it can support.

Below is a clear breakdown of the four most common PC case sizes and how to choose the best one for your setup.





(Source: Tech Guided)



Understanding PC Case Sizes

PC case sizing is primarily based on motherboard compatibility. The four main sizes—E-ATX, ATX, M-ATX, and ITX—range from largest to smallest. A larger case (like E-ATX) can fit smaller motherboards such as ITX, but a small ITX case cannot fit larger boards like ATX or E-ATX.

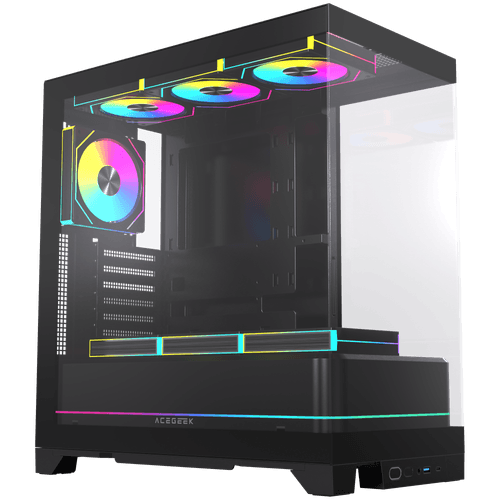

(ACEGEEK Photon E-ATX PC Case)



E-ATX Cases

E-ATX cases are built for high-end, flagship systems and offer the most interior space for expansion, cooling, and advanced airflow setups.

A great example is the Photon, a premium E-ATX case that supports:

．Up to 8 x 120mm fans

．A 360mm AIO radiator at the top

．Modular rear panels for flexible motherboard compatibility



E-ATX cases are ideal for users who want:

．Maximum expansion room

．Multi-fan or custom water-cooling setups

．Superior airflow and thermal performance

．A powerful workstation or full-tower gaming system





(ACEGEEK LunarisFlow ATX PC Case)



ATX Cases

ATX cases are the most common and most balanced option, offering a great mix of space, cooling potential, and ease of building. They support all standard ATX motherboards—from entry-level H-series to top-tier Z-series boards.

ATX cases are perfect if you want:

．A well-rounded build with solid airflow

．Multiple fan and storage options

．A case size that fits comfortably on or under most desks



M-ATX Cases

Micro-ATX (M-ATX) cases are slightly smaller while still offering plenty of features for mainstream users. M-ATX motherboards have fewer PCIe slots and M.2 slots, but still support most gaming and productivity builds.

M-ATX cases are ideal for users who want:

．A smaller footprint without major compromises

．Good airflow and cooling flexibility

．A cleaner, more space-efficient setup



They are excellent for bedrooms, small desks, or office environments.



ITX Cases

ITX cases are the smallest and most compact option, designed strictly for ITX motherboards. They are popular among gamers and enthusiasts who prioritize portability or a minimalist desk setup.

Because of their small volume, ITX cases often have surprisingly efficient heat dissipation—but they do impose certain limitations:

．Typically limited to SFX or SFX-L power supplies

．Fewer fan and radiator mounting points

．Tighter cable-management space







ITX cases are best for users who want:

．A compact or portable PC

．A stylish small-form-factor build

．Efficient airflow in a small chassis







Choosing the Right Case for Your Needs

When selecting a PC case, always consider:

．Motherboard compatibility

．Cooling and fan support

．GPU and CPU cooler clearance

．Expansion options (storage, PCIe cards)

．Desk space and preferred size

．Personal aesthetic preferences



Understanding the differences between E-ATX, ATX, M-ATX, and ITX cases will help you choose a chassis that fits your hardware, cooling requirements, and workspace—ensuring your build performs well and looks great.

Selecting the right motherboard form factor is the first step in ensuring your components have enough room to breathe and maintain stable performance.

How to Choose the Right PC Case for Your Build

Memilih faktor bentuk motherboard yang tepat adalah langkah pertama untuk memastikan komponen Anda memiliki ruang yang cukup untuk bernapas dan mempertahankan kinerja yang stabil.

Cara Memilih Casing PC yang Tepat untuk Rakitan Anda

 might look complicated—but each part of the code actually tells you important information about the processor’s performance, generation, and special features. Understanding these naming rules helps you pick the right CPU for your needs.

Below is a simple breakdown of how to read both Intel and AMD CPU model numbers.

The series indicates the CPU’s performance tier. Higher numbers generally mean stronger performance.

The first digits after the series represent the generation.

i9-14900K → “14” = 14th Gen Core i9

Newer generations usually mean improvements in architecture, efficiency, and performance.

The numbers following the generation indicate performance variations within the same generation.

a higher SKU number means higher performance

The suffix tells you the CPU’s key features:

AMD follows a similar structure but uses different naming patterns.

The first number after the series indicates the generation.

Ryzen 7 7900X → “7” = 7th-gen Ryzen 7

Newer generations improve efficiency, IPC, and performance within the same tier.

The following numbers identify different performance levels within the same generation.

Higher numbers typically mean faster boost clocks and better overall performance.

Once you understand what each part of a CPU model number represents, choosing the right Intel or AMD processor becomes much easier. Whether you’re upgrading for gaming, productivity, or content creation, reading CPU codes helps you pick the model that best fits your performance needs.





When choosing a CPU, model names like Intel Core i9-14900K or AMD Ryzen 9 7900X might look complicated—but each part of the code actually tells you important information about the processor’s performance, generation, and special features. Understanding these naming rules helps you pick the right CPU for your needs.

Below is a simple breakdown of how to read both Intel and AMD CPU model numbers.



How to Read Intel CPU Model Numbers

Let’s use Intel Core i9-14900K as an example.
It can be divided into four parts: series, generation, SKU number, and suffix.







Series (i3 / i5 / i7 / i9)

The series indicates the CPU’s performance tier. Higher numbers generally mean stronger performance.





Core i3 — Entry level. Best for documents, browsing, video playback.



Core i5 — Mid-range. Good for office tasks and light gaming.



Core i7 — High performance. Suitable for AAA gaming, multitasking, and livestreaming.



Core i9 — Flagship. Designed for heavy gaming, high FPS, content creation, and streaming simultaneously.



Generation

The first digits after the series represent the generation.
Example: i9-14900K → “14” = 14th Gen Core i9.

Newer generations usually mean improvements in architecture, efficiency, and performance.



SKU Number (the remaining digits)

The numbers following the generation indicate performance variations within the same generation.
They differentiate CPUs by clock speed, core count, cache size, and other specifications.

In general, a higher SKU number means higher performance.



Suffix (K, F, etc.)

The suffix tells you the CPU’s key features:





No suffix — Standard model. Balanced performance, no special features.



K — Unlocked for overclocking. Ideal for gamers and streamers who want extra performance.



F — No integrated graphics. Requires a dedicated graphics card.



How to Read AMD CPU Model Numbers

AMD follows a similar structure but uses different naming patterns.
Take Ryzen 7 7900X as an example.







Series (Ryzen 3 / 5 / 7 / 9)





Ryzen 3 — Entry-level. Good for office tasks, browsing, and light games.



Ryzen 5 — Mainstream. Good for gamers and general creators.



Ryzen 7 — High-end. Great for AAA gaming and content creation.



Ryzen 9 — Flagship. Excellent for heavy workloads, streaming, and top-tier gaming.



Generation

The first number after the series indicates the generation.
Example: Ryzen 7 7900X → “7” = 7th-gen Ryzen 7.

Newer generations improve efficiency, IPC, and performance within the same tier.



SKU Number

The following numbers identify different performance levels within the same generation.
Higher numbers typically mean faster boost clocks and better overall performance.



Suffix (X, X3D, F)





F — No integrated graphics. Requires a dedicated GPU.



X — Higher base and boost clocks for stronger performance.



X3D — Same as X-series but with AMD 3D V-Cache, offering significantly better gaming performance.







Final Thoughts

Once you understand what each part of a CPU model number represents, choosing the right Intel or AMD processor becomes much easier. Whether you’re upgrading for gaming, productivity, or content creation, reading CPU codes helps you pick the model that best fits your performance needs.

Intel and AMD CPU codes look complex, but they’re easy to understand once you know what each part represents.

What Do the Codes After Intel and AMD CPU Model Numbers Actually Mean?

Kode CPU Intel dan AMD terlihat kompleks, tetapi mudah dipahami setelah Anda mengetahui apa yang diwakili oleh setiap bagiannya.

Apa Arti Sebenarnya dari Kode Setelah Nomor Model CPU Intel dan AMD?

, is the high-speed interface standard found on modern motherboards. It acts as a direct connection between your system and key components such as graphics cards, SSDs, capture cards, and network cards—ensuring fast, stable data transfer for demanding tasks.

, giving each device its own dedicated data path. This architecture allows PCIe to deliver much faster transfer speeds compared to older shared-bus standards.

PCIe also evolves in generations (PCIe 3.0, 4.0, 5.0), with each new version offering

 the slot includes, similar to how a multi-lane highway allows more traffic.

A larger lane count means higher bandwidth and better performance for high-demand devices.

PCIe slots and devices are backward compatible.

For example, a PCIe 4.0 card will work in a PCIe 3.0 slot—but it will operate at

Common PCIe Device Types and Recommended Slots

 GPUs require maximum bandwidth for rendering and computation. The x16 slot provides the ideal throughput for top performance.

 Most NVMe SSDs run through M.2 slots using PCIe x4 lanes. If your motherboard lacks enough M.2 slots, an expansion card in a PCIe x4 slot can be used without bottlenecking the SSD.

 Standard network cards require minimal bandwidth, making x1 slots sufficient. For multi-gigabit or enterprise-grade NICs, an x4 slot offers better stability.

 Capture cards handle high-bandwidth video streams, especially for streaming or content creation. Wider lanes ensure smooth recording and low latency.

Important Things to Consider When Using PCIe

If you install a high-bandwidth device (like a GPU) into a low-lane slot, performance will be limited. Always pair demanding hardware with the correct slot size.

PCIe cards must physically fit into the slot.

This slot often provides the best bandwidth and lowest latency. Installing high-priority devices in the correct slot ensures maximum performance.

PCIe slots play a crucial role in expanding the capabilities of your PC. Understanding the different PCIe sizes, lane counts, and recommended use cases helps you optimize system performance and choose the right slot for each component. Whether you’re adding a new GPU, installing more storage, or upgrading your network hardware, selecting the proper PCIe slot ensures your system runs at its full potential.




PCIe, short for PCI Express, is the high-speed interface standard found on modern motherboards. It acts as a direct connection between your system and key components such as graphics cards, SSDs, capture cards, and network cards—ensuring fast, stable data transfer for demanding tasks.



Key Features of PCIe

High-Speed, Direct Data Transfer

PCIe uses a point-to-point serial connection, giving each device its own dedicated data path. This architecture allows PCIe to deliver much faster transfer speeds compared to older shared-bus standards.

PCIe also evolves in generations (PCIe 3.0, 4.0, 5.0), with each new version offering significantly higher bandwidth than the one before it.



Multiple Slot Sizes and Lane Counts

PCIe slots come in several sizes—x1, x4, x8, and x16.
The number represents how many data lanes the slot includes, similar to how a multi-lane highway allows more traffic.





x1 = 1 lane



x16 = 16 lanes (highest bandwidth)

A larger lane count means higher bandwidth and better performance for high-demand devices.



Backward Compatibility

PCIe slots and devices are backward compatible.
For example, a PCIe 4.0 card will work in a PCIe 3.0 slot—but it will operate at PCIe 3.0 speeds.







Common PCIe Device Types and Recommended Slots

Graphics Card (GPU)

Recommended Slot: PCIe x16
Why: GPUs require maximum bandwidth for rendering and computation. The x16 slot provides the ideal throughput for top performance.



Solid-State Drive (SSD)

Recommended Slot: PCIe x4 (via M.2 or PCIe adapter)
Why: Most NVMe SSDs run through M.2 slots using PCIe x4 lanes. If your motherboard lacks enough M.2 slots, an expansion card in a PCIe x4 slot can be used without bottlenecking the SSD.



Network Card (NIC)

Recommended Slot: PCIe x1 or x4
Why: Standard network cards require minimal bandwidth, making x1 slots sufficient. For multi-gigabit or enterprise-grade NICs, an x4 slot offers better stability.



Capture Card

Recommended Slot: PCIe x4 or x8
Why: Capture cards handle high-bandwidth video streams, especially for streaming or content creation. Wider lanes ensure smooth recording and low latency.







Important Things to Consider When Using PCIe

Match the Bandwidth to the Device

If you install a high-bandwidth device (like a GPU) into a low-lane slot, performance will be limited. Always pair demanding hardware with the correct slot size.



Check Physical Fit

PCIe cards must physically fit into the slot.





Small cards (x1) can fit into larger slots (x4/x8/x16)



Large cards (x16) cannot fit into smaller slots



Slot Priority on Motherboards

Most motherboards reserve the top PCIe x16 slot, closest to the CPU, for the GPU.
This slot often provides the best bandwidth and lowest latency. Installing high-priority devices in the correct slot ensures maximum performance.







Conclusion

PCIe slots play a crucial role in expanding the capabilities of your PC. Understanding the different PCIe sizes, lane counts, and recommended use cases helps you optimize system performance and choose the right slot for each component. Whether you’re adding a new GPU, installing more storage, or upgrading your network hardware, selecting the proper PCIe slot ensures your system runs at its full potential.

What Is PCIe on a Motherboard?

Apa itu PCIe pada motherboard?

#000000

Cryoscreen 360

Colors

Warna

Vault

Motherboard Support

Liquid Cooler Support

Casing Hemat Ukuran M-ATX dengan Aliran Udara Optimal

Dukungan Motherboard

Dukungan Pendingin Cair

Mercury R425X RGB

Qube

Stratus Mesh

Temp C240

Mercury R425 (Pro)

RW12 Fan

PC Case

PC case

CPU Cooler

Cooling Fan

Gaming Chair

Gaming Desk

Peripheral

∙ RGB Light Strip at Bottom
∙ Quick Release Structure

Nebula Pro

∙ Strip Lampu RGB di Bagian Bawah
∙ Struktur Lepas Cepat

∙ DIY themes
∙ Magnetic 2.8inch screen
∙ Aluminum premium style
∙ Impressive thermal solution

Cryoscreen 360 Water Cooling

∙ Tema DIY
∙ Layar magnetik 2,8 inci
∙ Gaya premium aluminium
∙ Solusi termal yang mengesankan

Pendingin Air Cryoscreen 360

Acegeek menawarkan casing komputer, solusi pendinginan, catu daya, dan periferal berkualitas tinggi. Jelajahi situs web kami untuk produk & aksesori terbaik.

ACEGEEK | Beli Casing & Aksesoris Komputer Berkualitas Tinggi

Acegeek offers high-quality computer cases, cooling solutions, power supplies, and peripherals. Explore our website for top-notch products & accessories.

Di mana performa bertemu dengan kualitas dan estetika.

Pembelian global
Informasi kanal

Nebula Pro

Pendingin Air Cryoscreen 360

Produk unggulan

Jelajahi berdasarkan kategori

Berita

Di mana performa bertemu dengan kualitas dan estetika.

Pembelian globalInformasi kanal

Nebula Pro

Pendingin Air Cryoscreen 360

Produk unggulan

Jelajahi berdasarkan kategori

Berita

Pembelian global
Informasi kanal
