Why Radiator Thickness Breaks Otherwise Compatible Builds

The Compatibility Lie Printed on Too Many Spec Sheets

A PC case can honestly claim “360mm radiator support” while still failing your actual build, because that label usually describes length and mounting pattern, not the combined depth of radiator thickness, fan thickness, motherboard heatsinks, RAM height, EPS cable bend radius, tube fittings, screw heads, and the ugly little tolerances that separate a clean build from a two-hour teardown.

So why do we keep treating one number like proof?

I have seen this mistake enough times to call it an industry habit, not a user error. A builder sees “top 360mm support,” buys a 38mm or 45mm radiator, adds standard 25mm fans, drops it into an ATX case, and discovers the top fan frame is now arguing with DDR5 RGB memory or the motherboard VRM heatsink. The parts were “compatible.” The build was not.

That is the uncomfortable truth about radiator thickness: it does not just make the radiator thicker. It changes the geometry of the whole machine.

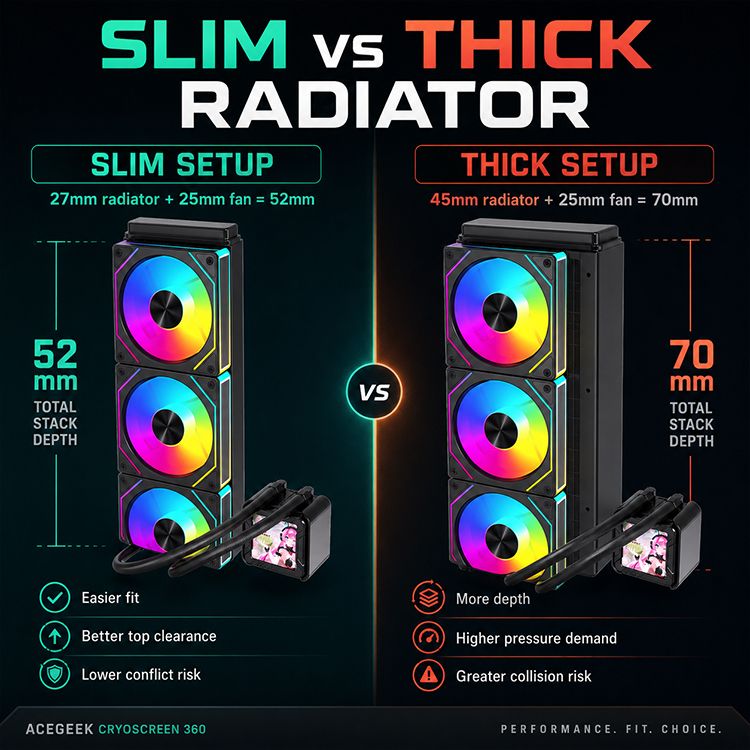

A slim 27mm radiator with 25mm fans creates a 52mm stack before screw heads, rubber pads, cable strain, and breathing room. A 45mm radiator with the same fans becomes 70mm before those extras. Add push-pull fans and the same radiator can become 95mm. That is not a small difference. That is the difference between “installed” and “why is my EPS cable trapped under a fan blade?”

If you are still choosing a case, start with AceGeek’s

. Length is only the first door. Thickness is the hallway you may not fit through.

Radiator Thickness Is a System Problem, Not a Radiator Problem

Radiator thickness sounds like a cooling spec. It is really a clearance spec.

A thicker radiator usually has more metal, more coolant volume, and potentially more heat-dissipation capacity. But that potential only matters when fans can push enough air through the fin stack and the case gives that air somewhere to go. If the radiator is jammed against a motherboard shroud, starved behind a glass panel, or paired with weak fans at low RPM, the extra thickness becomes expensive dead weight.

That is the trap. In PC cooling, “more” often hides a trade-off. More radiator depth can mean more air resistance. More fan pressure requirement. More tube-routing pain. More conflict with tall RAM. More blocked headers. More noise when fans ramp harder to overcome restriction.

The big operators know this. ENERGY STAR’s data-center airflow guidance says cold supply air should reach equipment intakes and hot return air should be directed back cleanly; even simple airflow separation can improve cooling efficiency, and a 12-inch blanking panel can reduce rack temperatures by 20°F in the cited example. A desktop PC is smaller, messier, and cheaper, but the physics is not different: airflow that cannot reach the heat exchanger is wasted airflow.

Now scale that down to your case. If your top radiator is too thick, the fans may sit too close to RAM heat spreaders, the radiator may block cable access, and the hot air path may become compromised. The cooler is bigger. The system is worse.

Hard truth: a slim radiator with clean airflow often beats a thick radiator installed like a dare.

 gets this right by treating airflow as a money problem, not a decoration problem. Spend first where air moves. Then spend on thicker cooling hardware only when the case can actually use it.

The Stack Math Builders Ignore Until Midnight

Here is the radiator clearance formula I actually trust:

Radiator stack depth = radiator thickness + fan thickness + screw head allowance + vibration pad allowance + tube/fitting space + cable bend space + service margin

That last part matters. Service margin is not luxury. It is the space that lets you remove RAM, plug in the EPS cable, reach a fan header, reseat a pump cable, or clean dust without taking half the system apart.

Cooling SetupRadiator ThicknessFan ThicknessApprox. Stack Before ExtrasReal-World RiskSlim 240/280/360 AIO27mm25mm52mmUsually manageable in mid-tower casesStandard custom-loop radiator30mm25mm55mmGood balance if case offset is honestMedium-thick radiator38mm25mm63mmTop-mount RAM and VRM conflicts become likelyThick radiator45mm25mm70mmNeeds careful case, motherboard, and RAM matchingThick radiator + push-pull45mm50mm total95mmUsually a large-case plan, not a normal ATX assumptionExtreme 60mm radiator60mm25mm85mmOften demands strong fans, big chassis space, or push-pull planning

And no, “the case supports 360mm” does not answer any of that.

A 360mm radiator describes fan spacing: three 120mm fan positions. It does not tell you whether the radiator stack clears the motherboard’s top edge. It does not tell you whether the tubes can bend without pressing into the glass. It does not tell you whether your 44mm-tall RGB RAM turns the top mount into a collision zone.

 belongs in the same workflow as any radiator purchase. Compatibility is not one green checkmark. It is a sequence of physical questions.

The Numbers That Should Make Builders Less Casual

Intel’s official Core i9-14900K page lists 24 cores, 32 threads, a 6.0GHz max turbo frequency, 125W processor base power, and 253W maximum turbo power. That is a serious thermal load for a desktop CPU, especially under rendering, compiling, simulation, and heavy all-core workloads.

NVIDIA’s RTX 4090 Founders Edition page lists a 450W total graphics power, 315W average gaming power, 850W required system power, 304mm length, 137mm width, 61mm 3-slot thickness, and a 36mm additional cable-clearance note. That is a heater with a PCIe connector.

So when someone says radiator thickness is “just a few millimeters,” I hear an amateur sentence.

A high-end CPU plus a high-wattage GPU can put hundreds of watts of heat into a case. The International Energy Agency’s 2025 data-center analysis says cooling and environmental control can account for about 7% of electricity use in efficient hyperscale data centers and over 30% in less-efficient enterprise data centers, while global data-center electricity consumption was estimated at about 415 TWh in 2024. The point is not that your gaming PC is a data center. The point is that heat removal is never free.

PC builders love the sexy parts: 6GHz, 24GB GDDR6X, 450W GPU power, 360mm AIO, dual-chamber case, 10 fans. But the build succeeds or fails in boring geometry.

Thick vs Slim Radiator: The Argument Nobody Frames Honestly

The usual internet fight is lazy: thick radiator versus slim radiator.

which radiator thickness works with your fan speed, case airflow, mount position, RAM height, motherboard layout, and noise target?

A thick radiator can win when it has enough airflow and enough clearance. A slim radiator can win when it gets cleaner intake, lower restriction, quieter fan behavior, and fewer fitment compromises. The winner is not the part. The winner is the system.

Decision FactorSlim Radiator AdvantageThick Radiator AdvantageMy Blunt TakeTop-mount clearanceEasier RAM, VRM, EPS clearanceHigher collision riskSlim is safer for top mountsLow-RPM noiseOften easier to run quietlyMay need more fan pressureThick is not automatically quietFront-mount spaceLeaves more GPU/cable roomCan reduce internal clearanceMeasure GPU length after radiator stackPush-pull fansLess likely to become absurdly deepCan perform well with enough spacePush-pull belongs in planned builds, not panic buildsSmall casesBetter survival oddsOften unrealisticSFF builders should fear thicknessHigh-wattage CPU loadsMay need more surface area or higher RPMMore thermal mass and fin depth can helpOnly if airflow is not chokedMaintenance accessEasier to serviceMore trapped cables and blocked headersFuture you deserves space

I know the thick-radiator crowd hates hearing this, but many builds would be better with a larger slim radiator than a smaller thick one. More frontal area with clean airflow often beats extra depth trapped in a bad location.

That is why radiator clearance and case airflow belong together. AceGeek’s

 is useful here because small cases do not merely reduce volume; they compress the entire decision tree. Tube angle, GPU exhaust, PSU shroud height, top offset, and front-panel restriction all start fighting each other.

Where Radiator Thickness Breaks “Compatible” Builds

Top-mounted radiators fail in the narrow band above the motherboard. That space looks empty in a product render. In a real machine, it contains RAM heat spreaders, VRM heatsinks, rear I/O armor, EPS power cables, fan headers, pump cables, and sometimes the builder’s patience.

A top 360mm AIO may physically screw into the roof while the fan frame presses against DDR5 RGB memory. A 30mm radiator might clear. A 45mm radiator might not. Add fan grills or thick anti-vibration pads and the gap disappears.

My rule: if you cannot identify the case’s top offset from the motherboard edge, do not assume a thick top radiator will fit.

Front radiators usually avoid RAM conflict, but they charge a different tax: GPU clearance.

A case may support a 360mm front radiator and a 340mm GPU separately. It may not support a 340mm GPU after you install a 45mm radiator and 25mm fans. That 70mm stack comes straight out of the GPU’s living room.

This matters more with long modern cards. NVIDIA’s RTX 4090 Founders Edition is 304mm long, and many partner cards exceed that. Add the 36mm cable-clearance planning note from NVIDIA and front-mount radiator thickness becomes a real layout threat, not a spreadsheet detail.

Side Mount: Pretty, But Not Always Forgiving

Side radiators look clean in dual-chamber cases. They also hide compatibility traps: tube bend angle, fan orientation, glass clearance, pump height, and cable routing.

A thick side radiator can create a beautiful build that is awful to work on. I have no patience for showcase layouts that require removing a radiator to reach a motherboard header. That is not premium. That is cosplay engineering.

Bottom radiators can work in custom loops where pump/reservoir positioning is planned correctly. For many AIOs, bottom mounting is risky because pump position and air migration can cause noise or performance problems.

Even when it fits, it may starve the GPU or push warm air into the card. Bottom radiator thickness also eats vertical clearance in cases where the GPU already sits close to the floor.

The Fan Problem: Thickness Demands Pressure

Radiator fan clearance is not just physical clearance. It is performance clearance.

Thicker radiators can demand better static pressure because fans must push air through more resistance. Dense fins, thick cores, dust filters, restrictive panels, and low fan RPM all pile onto the same problem. If the fans cannot move air through the radiator, the radiator becomes a warm metal brick with marketing confidence.

This is why fan curves matter. AceGeek’s

 should be part of the radiator discussion because the cooler does not operate at one fixed state. It reacts. Bad fan curves make thick radiators surge, whine, and hunt between thermal states.

A thick radiator at 800 RPM may underperform expectations. The same radiator at 1,500 RPM may cool well but annoy everyone in the room. A slim radiator with less restriction may hold a steadier acoustic profile. That is the part the spec sheet does not sell you.

And if you want both low noise and serious heat removal, you need surface area, clean intake, sensible fan pressure, and enough clearance to avoid choking the system. You do not get it by forcing the thickest radiator into the smallest open slot.

How to Check Radiator Clearance Before You Buy

Use this process before checkout, not after the return window closes.

Look up the radiator core thickness in millimeters. Common AIO radiators are often around 27mm, while custom-loop radiators may sit around 30mm, 38mm, 45mm, or 60mm.

Do not trust photos. Product renders lie by omission.

Most standard 120mm and 140mm fans are 25mm thick. Slim fans may be 15mm, but they often give up pressure or noise quality. Push-pull doubles the fan depth.

Do the math before you admire the build photos.

Add room for screw heads, rubber pads, cable bends, fitting protrusion, and manufacturing tolerance. I like at least 5mm to 10mm of practical margin when the radiator is near RAM, VRM heatsinks, EPS cables, or glass.

Some people also call a PC “done” while the side panel bulges.

Step 4: Check mount position against real components

Top mount means RAM, motherboard heatsinks, EPS cable, and top offset.

Front mount means GPU length, GPU power cable bend, pump tube route, and front-panel intake restriction.

Side mount means chamber depth, cable routing, tube bend, and fan direction.

Bottom mount means GPU breathing room and pump-location risk.

Do not ask, “Does this case support 360mm?”

CPU cooler selection guide for Intel Core i9 and Ryzen 9

 becomes relevant. High-wattage CPUs need cooling headroom, but headroom that physically blocks the motherboard is fake headroom.

Here is the blunt version I would give a builder before they spend money:

Build SituationSafer Radiator ChoiceWhyCompact ATX or M-ATX case with top radiator27mm to 30mm radiatorReduces RAM, VRM, and EPS conflictTall RGB RAM above 40mmSlim top radiator or front radiatorTop fan collision risk rises fastRTX 4090-class GPU with front radiatorSlim front radiator or larger caseGPU length and cable clearance need roomQuiet productivity PCSlim/standard radiator with low-RPM fansNoise stability beats raw radiator thicknessHeavy rendering Core i9 build360mm AIO or custom loop with verified clearance253W-class CPU behavior needs real headroomSmall-form-factor custom loopSlim radiator, careful fan choiceThickness punishes tiny layoutsShowcase dual-chamber buildSide radiator only after tube-route checkPretty layouts can be miserable to service

My unpopular opinion: the best radiator thickness for most normal high-end builds is not the thickest one. It is the thickest one the case can feed, clear, and service without drama.

That usually means 27mm to 30mm for AIOs and many top-mounted builds, 30mm to 38mm for balanced custom loops, and 45mm-plus only when the case, fans, and layout were chosen around that choice from day one.

What is radiator thickness in a PC build?

Radiator thickness is the front-to-back depth of a PC liquid-cooling radiator, usually measured in millimeters, and it affects clearance, fan pressure needs, airflow resistance, tube routing, and whether the radiator stack can fit near RAM, motherboard heatsinks, GPU power cables, or case panels. It is not the same as radiator length.

In real builds, radiator thickness must be added to fan thickness and small spacing allowances. A 30mm radiator with 25mm fans is already a 55mm stack before screws, pads, and cable bends.

Why does radiator thickness break otherwise compatible builds?

Why Radiator Thickness Breaks Otherwise Compatible Builds

The Compatibility Lie Printed on Too Many Spec Sheets

Fit is fake.

A PC case can honestly claim “360mm radiator support” while still failing your actual build, because that label usually describes length and mounting pattern, not the combined depth of radiator thickness, fan thickness, motherboard heatsinks, RAM height, EPS cable bend radius, tube fittings, screw heads, and the ugly little tolerances that separate a clean build from a two-hour teardown.

So why do we keep treating one number like proof?

I have seen this mistake enough times to call it an industry habit, not a user error. A builder sees “top 360mm support,” buys a 38mm or 45mm radiator, adds standard 25mm fans, drops it into an ATX case, and discovers the top fan frame is now arguing with DDR5 RGB memory or the motherboard VRM heatsink. The parts were “compatible.” The build was not.

That is the uncomfortable truth about radiator thickness: it does not just make the radiator thicker. It changes the geometry of the whole machine.

A slim 27mm radiator with 25mm fans creates a 52mm stack before screw heads, rubber pads, cable strain, and breathing room. A 45mm radiator with the same fans becomes 70mm before those extras. Add push-pull fans and the same radiator can become 95mm. That is not a small difference. That is the difference between “installed” and “why is my EPS cable trapped under a fan blade?”

If you are still choosing a case, start with AceGeek’s PC case buying guide, then cross-check the brand’s top-radiator clearance guide. Length is only the first door. Thickness is the hallway you may not fit through.

Radiator Thickness Is a System Problem, Not a Radiator Problem

Radiator thickness sounds like a cooling spec. It is really a clearance spec.

A thicker radiator usually has more metal, more coolant volume, and potentially more heat-dissipation capacity. But that potential only matters when fans can push enough air through the fin stack and the case gives that air somewhere to go. If the radiator is jammed against a motherboard shroud, starved behind a glass panel, or paired with weak fans at low RPM, the extra thickness becomes expensive dead weight.

But thicker feels safer.

That is the trap. In PC cooling, “more” often hides a trade-off. More radiator depth can mean more air resistance. More fan pressure requirement. More tube-routing pain. More conflict with tall RAM. More blocked headers. More noise when fans ramp harder to overcome restriction.

The big operators know this. ENERGY STAR’s data-center airflow guidance says cold supply air should reach equipment intakes and hot return air should be directed back cleanly; even simple airflow separation can improve cooling efficiency, and a 12-inch blanking panel can reduce rack temperatures by 20°F in the cited example. A desktop PC is smaller, messier, and cheaper, but the physics is not different: airflow that cannot reach the heat exchanger is wasted airflow.

Now scale that down to your case. If your top radiator is too thick, the fans may sit too close to RAM heat spreaders, the radiator may block cable access, and the hot air path may become compromised. The cooler is bigger. The system is worse.

Hard truth: a slim radiator with clean airflow often beats a thick radiator installed like a dare.

AceGeek’s high-airflow PC build guide gets this right by treating airflow as a money problem, not a decoration problem. Spend first where air moves. Then spend on thicker cooling hardware only when the case can actually use it.

The Stack Math Builders Ignore Until Midnight

Here is the radiator clearance formula I actually trust:

Radiator stack depth = radiator thickness + fan thickness + screw head allowance + vibration pad allowance + tube/fitting space + cable bend space + service margin

That last part matters. Service margin is not luxury. It is the space that lets you remove RAM, plug in the EPS cable, reach a fan header, reseat a pump cable, or clean dust without taking half the system apart.

A common AIO stack:

Cooling SetupRadiator ThicknessFan ThicknessApprox. Stack Before ExtrasReal-World RiskSlim 240/280/360 AIO27mm25mm52mmUsually manageable in mid-tower casesStandard custom-loop radiator30mm25mm55mmGood balance if case offset is honestMedium-thick radiator38mm25mm63mmTop-mount RAM and VRM conflicts become likelyThick radiator45mm25mm70mmNeeds careful case, motherboard, and RAM matchingThick radiator + push-pull45mm50mm total95mmUsually a large-case plan, not a normal ATX assumptionExtreme 60mm radiator60mm25mm85mmOften demands strong fans, big chassis space, or push-pull planning

And no, “the case supports 360mm” does not answer any of that.

A 360mm radiator describes fan spacing: three 120mm fan positions. It does not tell you whether the radiator stack clears the motherboard’s top edge. It does not tell you whether the tubes can bend without pressing into the glass. It does not tell you whether your 44mm-tall RGB RAM turns the top mount into a collision zone.

This is why AceGeek’s PC part compatibility guide belongs in the same workflow as any radiator purchase. Compatibility is not one green checkmark. It is a sequence of physical questions.

The Numbers That Should Make Builders Less Casual

Modern components are not gentle.

Intel’s official Core i9-14900K page lists 24 cores, 32 threads, a 6.0GHz max turbo frequency, 125W processor base power, and 253W maximum turbo power. That is a serious thermal load for a desktop CPU, especially under rendering, compiling, simulation, and heavy all-core workloads.

NVIDIA’s RTX 4090 Founders Edition page lists a 450W total graphics power, 315W average gaming power, 850W required system power, 304mm length, 137mm width, 61mm 3-slot thickness, and a 36mm additional cable-clearance note. That is a heater with a PCIe connector.

So when someone says radiator thickness is “just a few millimeters,” I hear an amateur sentence.

A high-end CPU plus a high-wattage GPU can put hundreds of watts of heat into a case. The International Energy Agency’s 2025 data-center analysis says cooling and environmental control can account for about 7% of electricity use in efficient hyperscale data centers and over 30% in less-efficient enterprise data centers, while global data-center electricity consumption was estimated at about 415 TWh in 2024. The point is not that your gaming PC is a data center. The point is that heat removal is never free.

PC builders love the sexy parts: 6GHz, 24GB GDDR6X, 450W GPU power, 360mm AIO, dual-chamber case, 10 fans. But the build succeeds or fails in boring geometry.

Thick vs Slim Radiator: The Argument Nobody Frames Honestly

The usual internet fight is lazy: thick radiator versus slim radiator.

Wrong frame.

The better question is this: which radiator thickness works with your fan speed, case airflow, mount position, RAM height, motherboard layout, and noise target?

A thick radiator can win when it has enough airflow and enough clearance. A slim radiator can win when it gets cleaner intake, lower restriction, quieter fan behavior, and fewer fitment compromises. The winner is not the part. The winner is the system.

I would break it down like this:

Decision FactorSlim Radiator AdvantageThick Radiator AdvantageMy Blunt TakeTop-mount clearanceEasier RAM, VRM, EPS clearanceHigher collision riskSlim is safer for top mountsLow-RPM noiseOften easier to run quietlyMay need more fan pressureThick is not automatically quietFront-mount spaceLeaves more GPU/cable roomCan reduce internal clearanceMeasure GPU length after radiator stackPush-pull fansLess likely to become absurdly deepCan perform well with enough spacePush-pull belongs in planned builds, not panic buildsSmall casesBetter survival oddsOften unrealisticSFF builders should fear thicknessHigh-wattage CPU loadsMay need more surface area or higher RPMMore thermal mass and fin depth can helpOnly if airflow is not chokedMaintenance accessEasier to serviceMore trapped cables and blocked headersFuture you deserves space

I know the thick-radiator crowd hates hearing this, but many builds would be better with a larger slim radiator than a smaller thick one. More frontal area with clean airflow often beats extra depth trapped in a bad location.

That is why radiator clearance and case airflow belong together. AceGeek’s case-size cooling analysis is useful here because small cases do not merely reduce volume; they compress the entire decision tree. Tube angle, GPU exhaust, PSU shroud height, top offset, and front-panel restriction all start fighting each other.



Where Radiator Thickness Breaks “Compatible” Builds

Top Mount: The Most Common Trap

Top-mounted radiators fail in the narrow band above the motherboard. That space looks empty in a product render. In a real machine, it contains RAM heat spreaders, VRM heatsinks, rear I/O armor, EPS power cables, fan headers, pump cables, and sometimes the builder’s patience.

A top 360mm AIO may physically screw into the roof while the fan frame presses against DDR5 RGB memory. A 30mm radiator might clear. A 45mm radiator might not. Add fan grills or thick anti-vibration pads and the gap disappears.

My rule: if you cannot identify the case’s top offset from the motherboard edge, do not assume a thick top radiator will fit.

Front Mount: The GPU Clearance Tax

Front radiators usually avoid RAM conflict, but they charge a different tax: GPU clearance.

A case may support a 360mm front radiator and a 340mm GPU separately. It may not support a 340mm GPU after you install a 45mm radiator and 25mm fans. That 70mm stack comes straight out of the GPU’s living room.

This matters more with long modern cards. NVIDIA’s RTX 4090 Founders Edition is 304mm long, and many partner cards exceed that. Add the 36mm cable-clearance planning note from NVIDIA and front-mount radiator thickness becomes a real layout threat, not a spreadsheet detail.

Side Mount: Pretty, But Not Always Forgiving

Side radiators look clean in dual-chamber cases. They also hide compatibility traps: tube bend angle, fan orientation, glass clearance, pump height, and cable routing.

A thick side radiator can create a beautiful build that is awful to work on. I have no patience for showcase layouts that require removing a radiator to reach a motherboard header. That is not premium. That is cosplay engineering.

Bottom Mount: Usually a Bad AIO Idea

Bottom radiators can work in custom loops where pump/reservoir positioning is planned correctly. For many AIOs, bottom mounting is risky because pump position and air migration can cause noise or performance problems.

Even when it fits, it may starve the GPU or push warm air into the card. Bottom radiator thickness also eats vertical clearance in cases where the GPU already sits close to the floor.

So yes, it may fit.

Should it? Different question.

The Fan Problem: Thickness Demands Pressure

Radiator fan clearance is not just physical clearance. It is performance clearance.

Thicker radiators can demand better static pressure because fans must push air through more resistance. Dense fins, thick cores, dust filters, restrictive panels, and low fan RPM all pile onto the same problem. If the fans cannot move air through the radiator, the radiator becomes a warm metal brick with marketing confidence.

This is why fan curves matter. AceGeek’s fan curve optimization guide should be part of the radiator discussion because the cooler does not operate at one fixed state. It reacts. Bad fan curves make thick radiators surge, whine, and hunt between thermal states.

A thick radiator at 800 RPM may underperform expectations. The same radiator at 1,500 RPM may cool well but annoy everyone in the room. A slim radiator with less restriction may hold a steadier acoustic profile. That is the part the spec sheet does not sell you.

Silence costs airflow.

And if you want both low noise and serious heat removal, you need surface area, clean intake, sensible fan pressure, and enough clearance to avoid choking the system. You do not get it by forcing the thickest radiator into the smallest open slot.

How to Check Radiator Clearance Before You Buy

Use this process before checkout, not after the return window closes.

Step 1: Find the real radiator thickness

Look up the radiator core thickness in millimeters. Common AIO radiators are often around 27mm, while custom-loop radiators may sit around 30mm, 38mm, 45mm, or 60mm.

Do not trust photos. Product renders lie by omission.

Step 2: Add fan thickness

Most standard 120mm and 140mm fans are 25mm thick. Slim fans may be 15mm, but they often give up pressure or noise quality. Push-pull doubles the fan depth.

Do the math before you admire the build photos.

Step 3: Add small allowances

Add room for screw heads, rubber pads, cable bends, fitting protrusion, and manufacturing tolerance. I like at least 5mm to 10mm of practical margin when the radiator is near RAM, VRM heatsinks, EPS cables, or glass.

Some people run tighter.

Some people also call a PC “done” while the side panel bulges.

Step 4: Check mount position against real components

Top mount means RAM, motherboard heatsinks, EPS cable, and top offset.

Front mount means GPU length, GPU power cable bend, pump tube route, and front-panel intake restriction.

Side mount means chamber depth, cable routing, tube bend, and fan direction.

Bottom mount means GPU breathing room and pump-location risk.

Step 5: Compare against your exact case

Do not ask, “Does this case support 360mm?”

Ask:





Does it support my radiator thickness?



Does it support my fan thickness?



Does it support the stack in this mount position?



Does it clear my motherboard heatsink?



Does it clear my RAM height?



Does it leave room for EPS and fan cables?



Can I service the system later?

This is also where AceGeek’s CPU cooler selection guide for Intel Core i9 and Ryzen 9 becomes relevant. High-wattage CPUs need cooling headroom, but headroom that physically blocks the motherboard is fake headroom.

My Field Rules for Radiator Thickness

Here is the blunt version I would give a builder before they spend money:

Build SituationSafer Radiator ChoiceWhyCompact ATX or M-ATX case with top radiator27mm to 30mm radiatorReduces RAM, VRM, and EPS conflictTall RGB RAM above 40mmSlim top radiator or front radiatorTop fan collision risk rises fastRTX 4090-class GPU with front radiatorSlim front radiator or larger caseGPU length and cable clearance need roomQuiet productivity PCSlim/standard radiator with low-RPM fansNoise stability beats raw radiator thicknessHeavy rendering Core i9 build360mm AIO or custom loop with verified clearance253W-class CPU behavior needs real headroomSmall-form-factor custom loopSlim radiator, careful fan choiceThickness punishes tiny layoutsShowcase dual-chamber buildSide radiator only after tube-route checkPretty layouts can be miserable to service

My unpopular opinion: the best radiator thickness for most normal high-end builds is not the thickest one. It is the thickest one the case can feed, clear, and service without drama.

That usually means 27mm to 30mm for AIOs and many top-mounted builds, 30mm to 38mm for balanced custom loops, and 45mm-plus only when the case, fans, and layout were chosen around that choice from day one.

FAQs

What is radiator thickness in a PC build?

Radiator thickness is the front-to-back depth of a PC liquid-cooling radiator, usually measured in millimeters, and it affects clearance, fan pressure needs, airflow resistance, tube routing, and whether the radiator stack can fit near RAM, motherboard heatsinks, GPU power cables, or case panels. It is not the same as radiator length.

In real builds, radiator thickness must be added to fan thickness and small spacing allowances. A 30mm radiator with 25mm fans is already a 55mm stack before screws, pads, and cable bends.

Why does radiator thickness break otherwise compatible builds?

Radiator thickness breaks otherwise compatible builds because case specifications often confirm radiator length support, such as 240mm, 280mm, or 360mm, without proving that the full radiator-and-fan stack clears RAM, VRM heatsinks, EPS cables, GPU length, tube bends, or side-panel space. The label is incomplete.

The danger is highest in top-mounted AIO layouts and front-mounted radiator layouts with long GPUs. A few extra millimeters can move a build from clean fit to hard interference.

Is a thick radiator better than a slim radiator?

A thick radiator is better than a slim radiator only when the case provides enough clearance, the fans have enough static pressure, the airflow path is not restricted, and the workload can use the extra thermal mass or fin depth. Without those conditions, thickness may add noise and fitment trouble without better cooling.

For many normal builds, a slim or standard radiator with cleaner airflow is the smarter choice. Bigger cooling parts do not fix a bad case layout.

How do I check radiator clearance before buying?

Radiator clearance is checked by adding radiator thickness, fan thickness, screw and pad allowance, tube or fitting space, cable bend space, and a service margin, then comparing that total against the case’s real mount clearance near the motherboard, RAM, GPU, and panels. Do not rely on radiator length alone.

Use the exact dimensions of your case, radiator, fans, motherboard, RAM, and GPU. Then check real build photos or manuals for the same mount position.

Does radiator fan clearance matter?

Radiator fan clearance matters because fans need both physical space and breathing room to push air through the radiator without obstruction, turbulence, vibration, or collision with nearby components. A fan that technically fits but sits against RAM, glass, cables, or a restrictive panel may perform poorly and sound worse.

This is especially important with thicker radiators, dense fin stacks, dust filters, and low-RPM quiet builds. Clearance is part of cooling performance.

Should I use a thick or slim radiator for a 360mm AIO?

A 360mm AIO should usually use a slim or standard-thickness radiator when mounted at the top of a normal ATX case, because that position often competes with RAM height, VRM heatsinks, EPS cables, and motherboard top-edge clearance. Thick radiators make more sense only when the chassis was designed with extra offset and depth.

For front mounting, check GPU length after the radiator and fans are installed. A 360mm label does not protect you from clearance loss.

Final Thoughts: Measure the Stack Before You Buy the Hype

Radiator thickness is where lazy compatibility advice gets exposed.

Before you buy a case, cooler, radiator, or fan kit, write down the actual numbers: radiator thickness, fan thickness, RAM height, GPU length, motherboard heatsink height, top offset, front clearance, tube route, and cable bend space. Then add 5mm to 10mm of service margin instead of pretending your build will live forever untouched.

Your next step is simple: audit your planned build today. If the radiator stack is within a few millimeters of RAM, GPU, glass, or motherboard hardware, change the layout now. Choose a slimmer radiator, a larger case, lower-profile RAM, different fan placement, or a cleaner airflow path.

Do the boring math first. Save the expensive regret later.

Radiator thickness can ruin an otherwise compatible PC build by creating hidden clearance conflicts with fans, RAM, motherboard heatsinks, EPS cables, tube fittings, and airflow paths. Here is the blunt compatibility math builders usually learn too late.

Acegeek offers high-quality computer cases, cooling solutions, power supplies, and peripherals. Explore our website for top-notch products & accessories.

Blog

Currently Browsing：PC case radiator compatibility
