How to Keep Lighting Consistent in Multi-Fan Builds

Consistent RGB fan lighting requires matched lighting hardware, one control authority, verified electrical capacity, identical effect timing, and visual calibration after every fan is installed in its final position.

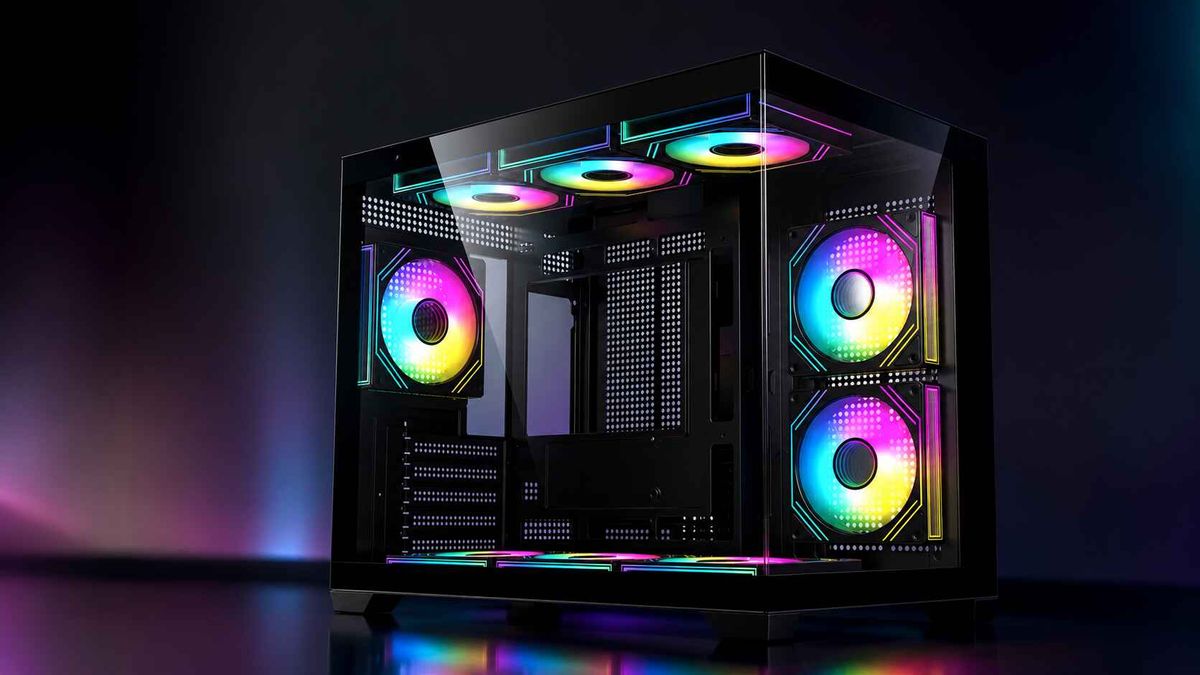

When nine fans span the front, side, floor, radiator, and rear exhaust, tiny differences in LED bin, diffuser thickness, cable path, firmware, brightness scaling, and controller timing become obvious because the case turns every mismatch into a repeated pattern.

Why spend heavily on a showcase build only to let one cyan fan expose the whole setup?

The hard truth is that RGB fan synchronization is not primarily an effects problem. It is a system-design problem. Color selection comes last.

Consistent RGB Fan Colors Require More Than a Matching Hex Code

, or “static white” tells the controller what output to request. It does not guarantee that every fan will produce the same visible white.

Microsoft acknowledges this directly in its

: colors and brightness can vary slightly between devices from different manufacturers. That admission matters because Microsoft controls the command layer, yet even a common software instruction cannot erase physical differences between products.

NIST documented the deeper manufacturing reason years ago. Its

 explains that white LEDs are manufactured across relatively broad chromaticity variations and then separated into bins. Different suppliers historically used different binning systems. Two LEDs sold as “white” therefore need not occupy the same point in color space.

the more visible the fans are, the less freedom you have to mix them.

A rear exhaust fan hidden behind dark mesh may tolerate a small color difference. Three side-mounted fans sitting behind clear glass will not.

Choose One Lighting Standard Before Building the Fan Array

Start by separating fan speed control from lighting control. Builders still confuse these two systems, especially when every fan carries two cables.

The motor cable controls blade speed. The lighting cable controls LEDs. One can work while the other remains disconnected or incorrectly configured.

 explains that the fourth motor pin carries the PWM control signal; this has nothing to do with whether the fan uses RGB or ARGB lighting.

12V RGB and 5V ARGB Are Not Interchangeable

 correctly separates conventional 12V four-pin RGB from addressable 5V three-pin ARGB. Standard RGB drives an entire connected device with one color, while ARGB sends data that can control individual LEDs or groups of LEDs.

Lighting systemTypical connectorControl levelBest useMain risk12V RGBFour pins: 12V, R, G, BOne color across the connected deviceSimple static lightingLimited effects and no individual LED control5V ARGBThree positions: 5V, data, groundIndividual or grouped LED addressingWaves, gradients, synchronized animationsDamage if connected to a 12V headerProprietary RGBBrand-specific plug and controllerDepends on the ecosystemMatched fan packagesLimited cross-brand compatibilityUSB lighting controllerInternal USB plus SATA powerSoftware-managed zones and effectsLarge or mixed lighting systemsSoftware and firmware dependency

Do not force a three-pin 5V ARGB plug onto a four-pin 12V RGB header.

MSI MAG B850 Tomahawk Max WiFi III manual

 explicitly warns that connecting a 5V ARGB device to its 12V JRGB connector will damage the lighting device. This is not a harmless configuration error. It is an electrical mismatch.

So check the motherboard manual before ordering splitters, hubs, or fans. Connector shape is not a substitute for documentation.

Power Math Decides Whether a Multi-Fan RGB Setup Stays Stable

A splitter creates more connection points. It does not create more electrical capacity.

That distinction gets ignored constantly.

The motherboard header or controller still has a maximum voltage, current, wattage, and often a declared LED-count limit. Attaching more sockets merely divides the existing capacity among more devices.

For example, MSI specifies that each JARGB_V2 connector on the cited MAG B850 board supports up to 240 individually addressable LEDs with a maximum rating of 3A at 5V. The same manual recommends using LED devices with matching specifications for the best visual results.

ASUS uses different published limits on some boards. The TUF Gaming B650-Plus product page states that its three Addressable Gen 2 headers support up to 500 Gen 2 LEDs. The point is not that one number is universally better. The point is that motherboard capabilities vary, so generic internet advice such as “one header can run six fans” is irresponsible.

Calculate Current Before Connecting the Hub

Use the lighting-current rating from each fan specification:

Total ARGB current = fan 1 + fan 2 + fan 3 + other illuminated devices

Then leave operating headroom. I normally use at least 20% unless the controller manufacturer specifies another limit.

Here is an illustrative calculation, not a universal fan rating:

That is where a SATA-powered RGB fan controller hub becomes useful. The motherboard can provide the data signal while the power supply feeds the LEDs through the hub.

But read the hub specification too. A SATA plug does not prove that every port is independently powered or that the controller can deliver unlimited current.

For eight, nine, ten, or twelve-fan builds, use zones rather than one reckless chain:

Zones make faults easier to isolate. They also reduce long cable runs and let you correct visible color differences without disturbing every device in the system.

When selecting hardware, compare fans within the same

 rather than treating every illuminated 120mm fan as optically identical. The current category includes separate central-light, mirror-style, and motherboard-synchronized ARGB families, each of which will present light differently through glass.

Use One Controller, One Software Platform, and One Master Profile

RGB software conflict is the industry’s dirty secret.

A motherboard utility, Windows service, peripheral suite, game integration, standalone fan controller, and saved hardware profile may all try to control the same device. The result can look like bad hardware:

The LEDs are not necessarily failing. They may simply be receiving commands from multiple authorities.

Pick one of these paths and commit to it:

Control pathBest forWeaknessMotherboard ARGB softwareFans connected directly to board headers or a synchronized hubVendor software can be heavyDedicated hardware controllerLarge matched fan setsMay require proprietary connectorsWindows Dynamic LightingCompatible HID LampArray devices across brandsDevice support remains hardware-dependentStandalone controller buttons or remoteSimple systems without softwareLimited calibration and effect controlThird-party universal softwareMixed-brand systemsCompatibility and update behavior vary

 can apply global or device-specific settings to compatible hardware. Microsoft also notes that a foreground application can take control of lighting, which explains why a profile may suddenly change when a game launches.

Dynamic Lighting uses the open HID LampArray standard. Compatible devices can report their LED positions to Windows, allowing effects to account for physical layout instead of treating every product as an unidentified strip. But support must exist in the device firmware or driver. An ordinary ARGB hub does not automatically become a Dynamic Lighting device.

Stop Competing Applications From Launching Together

Do not install four RGB suites and then blame the fans.

Match the Fans Optically, Not Merely Electrically

Even perfect wiring cannot make two different optical systems look identical.

A fan with LEDs around the outer frame will not match a fan that shines through the hub. A frosted blade scatters light differently from a clear blade. A mirror-frame fan creates reflections that make the same RGB value appear brighter or more saturated.

This is why I recommend keeping all fans visible through the main glass panel within one model family.

For a coordinated build, compare a matched package such as the

, then use the same version for the repeated side, bottom, or radiator positions. Both families are offered as illuminated 120mm fan systems, but their physical designs should still be treated as separate visual groups rather than mixed randomly.

Reverse-Blade and Standard Fans Can Still Look Different

A reverse-blade fan may be useful because it presents the cleaner side while maintaining the desired airflow direction. But its blade curvature, hub structure, supports, and diffuser exposure can change how the LEDs look.

So even when a manufacturer sells standard and reverse versions under the same family, test them together before promising exact color uniformity.

For highly visible showcase builds, I prefer this priority order:

The last point sounds obsessive. It is not.

Glass tint, motherboard surfaces, white cables, black radiators, and mirrored panels all alter perceived brightness. A lower fan reflecting against a white case floor may appear stronger than an identical top-mounted fan facing dark mesh.

White Is the Best Test and the Worst Showcase Color

Rainbow effects hide mismatch. Static white reveals it.

Test every zone with these profiles before creating the final effect:

Why three primary-color tests? Because a weak or mismatched channel becomes easier to identify. A fan that appears yellow under white may have relatively weak blue output. A magenta cast may indicate weak green output or a calibration difference.

Reducing brightness can make slight color differences less obvious, lower LED power consumption, reduce glare against glass, and produce a more expensive-looking finish. Many builds look better at 30% to 60% brightness than at the default 100%.

Temperature and Aging Can Change the Result

 found that LED color-shift rates can change with operating temperature and forward current. One dataset followed warm-white and cool-white modules for up to 20,000 hours under conditions including 75°C or 95°C and currents ranging from 350mA to 1,500mA.

That was not a PC fan test, and I would not pretend otherwise. It demonstrates the physical point: LED color output and long-term color stability are affected by thermal and electrical conditions.

In a gaming PC, that means an older top-radiator fan that has spent years near warm exhaust may eventually differ from a new replacement fan installed beside it. Software calibration can reduce the visual difference. It cannot make aged and new LED packages physically identical.

A Repeatable Workflow for RGB Fan Synchronization

Here is the process I trust for a multi-fan RGB setup.

Record the exact model and connector for:

Mark each as 12V RGB, 5V ARGB, USB-controlled, or proprietary.

Do this before cable management. Reopening a finished cable chamber because one data cable was missed is avoidable pain.

Use the manual for the exact motherboard revision. Similar model names are not enough.

Decide whether the master is the motherboard, dedicated controller, Windows Dynamic Lighting, or another software platform.

Everything else should follow it or stay disabled.

Keep RGB fan lighting consistent across multi-fan PC builds by matching ARGB standards, power limits, controllers, software, batches, and calibration.
