Can Radiator Fans and Case Fans Be Used Interchangeably? A Practical Guide
You want to replace the stock fans on your AIO liquid cooler, but the fans you already own are labeled as case fans. They have the same dimensions, mounting holes, and connectors.
Can you use them on the radiator instead?
Yes, radiator fans and case fans can often be used interchangeably, but matching dimensions do not guarantee matching cooling performance.
A fan designed for unrestricted case airflow may move less air when installed against a radiator. Meanwhile, a pressure-optimized radiator fan can work perfectly well as a case intake or exhaust fan.
The difference comes down to airflow resistance, fan performance, and installation compatibility.
Before swapping fans, it is important to check more than their size.
This guide explains when radiator and case fans can be exchanged, which specifications matter, how to avoid installation mistakes, and how to determine whether the replacement actually improves your cooling system.
Radiator Fans vs Case Fans: What Is the Difference?
Radiator fans and case fans generally use the same basic technology. Both are designed to move air using rotating blades.
The primary difference is how their designs perform under different levels of airflow resistance.
Radiator Fans: Designed to Work Against Resistance
A liquid-cooling radiator contains closely spaced metal fins that transfer heat from the coolant to the surrounding air.
Air must pass through these fins before the radiator can release heat effectively.
This creates resistance.
A fan used on a radiator should therefore maintain useful airflow while generating enough pressure to overcome that resistance.
Fans optimized for this purpose often feature blade and frame designs intended to provide stronger pressure-airflow performance.
However, not every radiator fan performs equally well, and a high maximum static pressure rating does not guarantee the best real-world result.
Case Fans: Designed to Support System Airflow
Case fans move air into, through, and out of the computer chassis.
Their operating conditions vary considerably.
A rear exhaust fan behind a relatively open grille may encounter limited resistance.
A front intake fan behind a dense dust filter or restrictive panel may experience substantially more resistance.
This means a case fan does not always operate under low-pressure conditions.
A pressure-optimized fan can be useful in a restrictive intake location, while an airflow-oriented model may be suitable for relatively open ventilation.
Radiator Fan vs Case Fan Comparison
FeatureRadiator-Oriented FanAirflow-Oriented Case FanMain design priorityAirflow under resistanceAirflow through relatively open pathsTypical applicationAIO radiator, heatsinkCase intake and exhaustStatic-pressure capabilityOften emphasizedVaries by modelPerformance through dense finsDepends on pressure-airflow curveMay be less effectiveUse behind dust filtersOften suitableDepends on filter resistanceOpen rear exhaustCan work effectivelyOften a good fitInterchangeabilityUsually possible when compatibleDepends more strongly on radiator resistance
These categories describe design priorities, not rigid technical classifications.
Modern all-round fans can perform effectively in both applications.
Can You Use Regular Case Fans on an AIO Radiator?
Yes, provided the replacement fans are mechanically and electrically compatible and can deliver sufficient airflow through the radiator.
The important consideration is how well the fan performs when airflow is restricted.
Why Maximum CFM Is Not Enough
CFM stands for cubic feet per minute. It describes the volume of air a fan moves.
Manufacturers commonly publish maximum airflow under low-resistance test conditions.
For example, a fan rated at 65 CFM may deliver approximately that amount under suitable free-air conditions.
However, mounting the same fan against a radiator changes its operating environment.
The radiator creates resistance, reducing the airflow the fan can deliver.
Static pressure, commonly measured in mmH₂O, describes another part of the fan's performance.
A fan with stronger pressure capability may perform better under resistance, but maximum static pressure alone is not enough to predict the result.
The relationship is described by a pressure-airflow performance curve, also called a P-Q curve.
For a deeper explanation, read our guide to understanding fan P-Q curves and how they affect cooling performance.
When Can Case Fans Work Well on a Radiator?
A case fan may be suitable for radiator use when:
Its dimensions match the radiator's mounting pattern.
It delivers adequate airflow against the radiator's resistance.
Its speed range supports the intended cooling workload.
Its frame provides an appropriate fit against the radiator.
Its operating noise is acceptable.
The complete cooling system remains within the manufacturer's operating limits.
A balanced all-round fan can be especially useful when you want matching fans throughout the PC.
However, fans designed primarily for unrestricted airflow may struggle on particularly restrictive radiator configurations.
This is more likely when the radiator is combined with a dense filter, restrictive intake panel, or other significant airflow obstruction.
For demanding CPU workloads, replacing known-performing radiator fans with untested airflow-oriented models may not be worthwhile.

Can Radiator Fans Be Used as Case Fans?
Yes. This is often a straightforward replacement when the fans use compatible mounting dimensions and electrical connections.
A fan capable of maintaining airflow through radiator fins can also move air through a case ventilation opening.
In fact, radiator-oriented fans may be especially useful in restrictive case locations.
Filtered Front Intake
Front intake fans often operate behind dust filters, mesh panels, or decorative covers.
These components create airflow resistance.
A fan with strong pressure-airflow performance may maintain useful airflow through these restrictions.
Side Intake in a Panoramic Case
Panoramic cases frequently use side ventilation instead of a conventional mesh front panel.
Side-mounted fans may pull air through narrow openings, dust filters, or partially obstructed mounting areas.
Pressure-capable fans can be useful in these configurations.
Open Rear Exhaust
A rear exhaust fan mounted behind a relatively open grille usually encounters less resistance.
A radiator fan can still work effectively here.
However, an airflow-oriented fan may provide similar cooling with a different noise or speed profile.
There is no guarantee that a fan with higher maximum static pressure will improve temperatures in a low-resistance position.
The best choice depends on performance at the operating speed you actually use.
What Should You Check Before Swapping Fans?
Before removing the original fans, verify mechanical, electrical, and cooling compatibility.
A replacement fan can fit the mounting holes but still cause installation problems.
1. Match the Fan Size and Mounting Pattern
Most 240mm and 360mm AIO radiators use 120mm fans, while many 280mm radiators use 140mm fans.
However, confirm the exact radiator specifications.
Check the fan's overall dimensions and mounting-hole pattern.
For example, two fans described as 120mm models may have different frame thicknesses or specialized mounting designs.
Always verify the exact replacement model.
2. Check Fan Thickness and Installation Clearance
Many standard PC fans are 25mm thick, but slim and high-performance models may use different dimensions.
A thicker fan can interfere with nearby components.
Potential obstructions include:
Motherboard VRM heatsinks.
Tall RAM modules.
Radiator tubing.
CPU power cables.
Case mounting brackets.
GPU clearance in front-radiator installations.
If the original fan is 25mm thick and the replacement is 30mm thick, the complete radiator assembly becomes 5mm thicker on that side.
Even a small change can matter in a compact chassis.
3. Verify Fan Connector Compatibility
Conventional PC fans often use three-pin or four-pin power connectors.
A three-pin fan typically supports voltage-based speed control when connected to a compatible DC-controlled header.
A four-pin PWM fan receives a dedicated speed-control signal.
However, not every AIO uses standard fan connections.
Some liquid coolers connect their fans through proprietary controllers, integrated cable systems, or dedicated fan hubs.
Before replacing the fans, check:
Whether the connector is standard or proprietary.
Whether the controller supports the replacement fan.
Whether PWM or DC control is available.
Whether the controller can provide sufficient electrical power.
Whether the fan's monitoring signal will work as expected.
For more information, see our guide to 3-pin vs 4-pin PC fans.
4. Check Fan and Controller Power Requirements
If several fans share a motherboard header or controller output, their combined electrical load matters.
Each fan has a rated current draw, usually listed in amperes.
The total current of all connected fans must remain within the header or controller's supported limit.
For example, three fans rated at 0.15A each have a combined rated current of:
0.15A × 3 = 0.45A
Whether that connection is suitable depends on the header's specifications and any relevant startup or peak-current requirements.
Always consult the motherboard or controller manual.
Do not assume that every fan header supports the same electrical load.
Also, keep the AIO pump's required connection and operating settings separate from the radiator fan configuration unless the cooler manufacturer specifies otherwise.
5. Confirm Lighting Compatibility
RGB compatibility is separate from fan motor compatibility.
A replacement fan may spin correctly while its lighting cannot connect to the existing controller.
Common lighting arrangements include standard 5V addressable RGB, 12V RGB, and manufacturer-specific connectors.
These interfaces are not universally interchangeable.
Never connect a 5V ARGB device directly to an incompatible 12V RGB header.
Check the lighting system separately before purchasing replacement fans.
6. Use the Correct Radiator Mounting Screws
Radiator fan screws deserve special attention.
A replacement fan with a different thickness may require different mounting hardware.
Using screws that are too short can prevent secure installation.
Using screws that are too long can damage internal radiator components.
Some radiators contain protective plates beneath the mounting holes, but this feature is not universal.
Always use the screw type and length approved for the specific radiator and fan combination.
Do not assume that screws from another AIO are interchangeable.
How to Replace AIO Radiator Fans Safely
Once compatibility has been confirmed, follow a controlled replacement process.
Step 1: Record the Original Cooling Performance
Before removing the original fans, run a repeatable workload.
Record the CPU temperature, CPU package power, radiator fan speed, and coolant temperature if available.
Also note room temperature, workload duration, and the fan-control profile.
This provides a baseline for evaluating the replacement.
Step 2: Shut Down and Disconnect Power
Turn off the computer and disconnect the power supply.
Allow the system to cool before working around the radiator.
Follow the AIO manufacturer's instructions if any additional disassembly is required.
Step 3: Remove the Original Fans
Disconnect the fan power and lighting connections.
Carefully remove the mounting screws while supporting the fans and radiator as needed.
Avoid pulling on radiator tubing or applying excessive force to the mounting hardware.
Step 4: Verify the New Fan Direction
Before mounting the replacements, identify their airflow direction.
For conventional axial fans, airflow commonly travels toward the side with the motor-support struts.
However, reverse-blade fans and specialized designs may differ.
Use the manufacturer's airflow-direction markings.
Maintain the intended radiator intake or exhaust configuration unless you are deliberately changing the system airflow layout.
Step 5: Install the Replacement Fans
Align the fan mounting holes with the radiator.
Use the approved mounting hardware and tighten the screws according to the radiator manufacturer's instructions.
Check that the fan frame sits correctly against the radiator.
Avoid large unintended gaps that allow air to bypass the fin area.
Do not overtighten the screws.
Step 6: Reconnect the Fans
Connect the replacement fans to the compatible motherboard header or controller.
Verify that the electrical load is within the supported limit.
Reconnect lighting separately where appropriate.
Do not change the pump connection unless instructed by the AIO manufacturer.
Step 7: Verify Fan Operation
After starting the computer, confirm that:
All replacement fans rotate normally.
Fan speed is detected where supported.
Speed control works correctly.
No fan blades contact cables or other components.
The pump operates normally.
There are no unexpected vibration or mechanical noises.
Restore or configure the appropriate cooling profile before testing the system under load.
How Can You Tell Whether the Replacement Fans Are Better?
The most useful comparison is not which fan produces the highest RPM.
It is which configuration provides adequate cooling with acceptable noise under similar operating conditions.
Compare Cooling Under a Repeatable Workload
Use the same CPU-intensive workload before and after replacing the fans.
Keep the following conditions as consistent as possible:
MeasurementWhy It MattersCPU package temperatureMeasures processor thermal behaviorCPU package powerHelps confirm equivalent heat loadCoolant temperatureIndicates liquid-loop thermal conditions where availableRadiator fan RPMShows actual fan operating speedRoom temperatureAccounts for environmental changesGPU temperatureReveals changes to overall case coolingSystem noiseHelps evaluate acoustic trade-offs
For a fair comparison, avoid changing the radiator position, pump settings, or unrelated case fan configuration at the same time.
Compare Performance at Similar Noise Levels
Two fans running at 1,200 RPM may not produce the same noise or airflow.
Therefore, testing at the same RPM is useful but does not tell the whole story.
Where possible, compare cooling performance at a similar measured noise level.
A replacement that produces slightly higher CPU temperatures but substantially less noise may still be preferable if temperatures remain within the required limits.
Conversely, a louder fan is not necessarily an upgrade simply because it lowers CPU temperature by a small amount.
Watch for Effects on GPU Cooling
If the radiator is mounted at the front as intake, its fans move air through the radiator before that air enters the case.
Changing radiator airflow can therefore affect the temperature and volume of air supplied to the GPU.
A fan replacement that improves CPU cooling may have different effects on graphics card temperatures.
For more guidance, explore our article on balancing CPU cooling and GPU airflow.
Evaluate the complete system rather than relying on CPU temperature alone.
When Should You Keep the Original Radiator Fans?
Replacing stock AIO fans is not always necessary.
If the original fans provide reliable cooling, acceptable noise, and appropriate speed control, there may be little practical benefit to changing them.
Keeping the original fans is especially reasonable when:
The AIO uses a specialized fan or controller system.
Replacement fan pressure-airflow performance is unknown.
The radiator has substantial airflow resistance.
The system regularly handles sustained CPU-intensive workloads.
The original cooling performance already meets your requirements.
The replacement would require uncertain mounting hardware or electrical adapters.
Appearance and lighting consistency are valid reasons to consider a fan change.
However, the replacement should still meet the cooling and compatibility requirements of the original installation.
A Real Fan Specification Example
The ACEGEEK Prime Fan lists the following specifications:
SpecificationACEGEEK Prime FanDimensions120 × 120 × 25mmFan speed800–1,850 RPM (±10%)Maximum airflow60 CFM (±10%)Maximum static pressure1.90 mmH₂O (±10%)Listed noise level17.8–32.3 dBA (±10%)
These specifications provide a starting point for evaluating potential applications.
However, maximum airflow and maximum static pressure alone cannot establish its exact performance on a particular radiator.
For radiator replacement, the complete pressure-airflow behavior, connector compatibility, installation requirements, and thermal results should also be considered.
The same evaluation principle applies to fans from other manufacturers.
Frequently Asked Questions
1. Can I Replace My AIO's Stock Fans With Regular 120mm Fans?
Yes, if the replacement fans match the mounting dimensions, support the required electrical connections, and provide adequate airflow through the radiator.
However, standard 120mm dimensions do not guarantee compatibility with proprietary AIO controllers or integrated fan systems.
Before replacing the stock fans, verify mounting thickness, connector type, current draw, speed control, and cooling performance.
2. Can I Mix Different Fan Models on the Same Radiator?
It is possible, but using matching fan models is generally easier to configure and evaluate.
Different fans can have different RPM ranges, pressure-airflow curves, acoustic characteristics, and responses to the same PWM signal.
This may produce uneven airflow or inconsistent fan behavior.
If you use different models, verify that each fan operates correctly and that the complete radiator provides sufficient cooling.
For push-pull configurations, avoid assuming that combining two different fan types will automatically improve performance.
3. Will a 3-Pin Case Fan Work on a 4-Pin AIO Fan Header?
A conventional three-pin fan can often connect to a standard four-pin fan header.
However, speed control depends on the header and controller.
If the header supports DC voltage control, the three-pin fan may be adjustable.
If the controller provides only constant 12V power with PWM speed regulation, the three-pin fan may operate at full speed.
Proprietary AIO connections are a separate consideration.
Always check the exact controller documentation before assuming compatibility.
4. Can Using Different Fan Screws Damage an AIO Radiator?
Yes.
Using mounting screws that are too long can damage the radiator core or other internal components.
The correct screw length depends on the radiator design, fan thickness, mounting bracket, and any supplied washers.
Do not reuse screws from another cooling system without confirming their suitability.
Follow the radiator manufacturer's installation instructions and stop if the hardware does not fit as expected.
5. How Can I Tell If My Replacement Fans Are Cooling Worse?
Compare CPU temperature, CPU package power, coolant temperature where available, fan RPM, and operating noise before and after the replacement.
Use the same workload, test duration, and cooling configuration under similar room temperatures.
If the replacement fans produce consistently higher temperatures at comparable power and noise levels, they may be moving less useful air through the radiator.
Also confirm that the fans are mounted correctly and that their speed-control settings are functioning as intended.
A higher temperature does not automatically prove that the fan design is unsuitable, because installation or control differences can also affect results.
Choose Fans Based on the Job, Not the Label

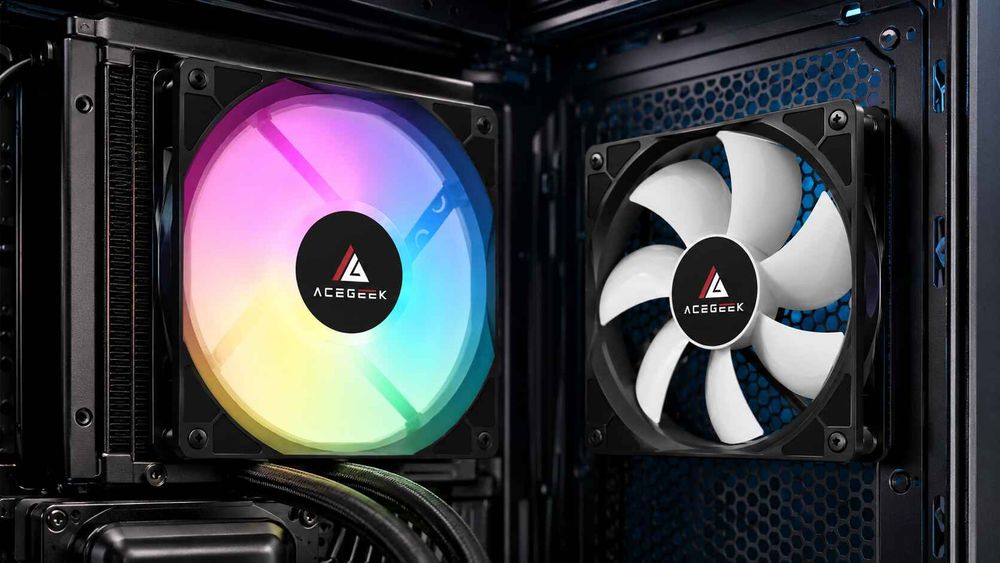

Radiator fans and case fans are often physically interchangeable, but their cooling performance depends on where and how they are installed.
A pressure-capable radiator fan can work effectively as a case intake or exhaust fan, particularly when airflow must pass through filters or restrictive ventilation openings.
A regular case fan can also work on a radiator if it provides sufficient airflow against resistance.
However, neither replacement should be judged solely by maximum CFM or static-pressure specifications.
Before swapping fans, verify their physical dimensions, connectors, power requirements, mounting hardware, and operating characteristics.
After installation, test cooling performance under realistic workloads rather than assuming the replacement must be better.
If your current radiator fans already provide reliable cooling at an acceptable noise level, replacing them may not be necessary.
The best PC cooling fan is not defined by whether it is marketed for a radiator or a case. It is the fan that performs effectively in the actual airflow conditions of your system.
