Why Top-Mounted Radiators Can Interfere with RAM

Top-mounted radiators look simple on a specification sheet.

A case may advertise support for a 240mm, 280mm, or 360mm radiator while saying almost nothing about the vertical and lateral space occupied by the radiator, its fans, motherboard VRM heatsinks, EPS cables, DIMM heatspreaders, RGB light bars, and tube fittings once all those components are installed together.

So why are we still treating “supports a 360mm radiator” as proof that the radiator actually fits?

, radiator length is one of the least interesting numbers. The real question is whether the complete radiator-and-fan assembly occupies the same three-dimensional space as the RAM.

AIO RAM Clearance Is a Geometry Problem, Not a Radiator-Length Problem

The basic mistake is surprisingly simple.

A 360mm radiator specification mostly tells you the mounting length. It does

 automatically tell you how far downward the cooling assembly extends toward the motherboard.

Take Corsair's iCUE LINK TITAN 360 RX RGB as a useful real-world example. Corsair lists a

 before we even start arguing about mounting brackets, screw heads, vibration pads, or installation tolerances.

That is already a substantial block hanging from the roof of a case.

Then consider ARCTIC's Liquid Freezer III Pro 360. ARCTIC uses a

, explicitly contrasting it with more conventional 27mm designs. That extra 11mm can be thermally useful, but from a compatibility perspective it is 11mm of additional hardware occupying space above the motherboard.

If you want the broader compatibility math, ACEGEEK's guide to

why radiator thickness breaks otherwise compatible PC builds

 covers the other collision zones as well: VRM heatsinks, EPS cables, tubes, GPU space, and fan frames.

The Equation Builders Should Actually Use

For a normal top-mounted AIO, I think about clearance roughly like this:

Required roof clearance = radiator thickness + fan thickness + installation margin

A thicker 38mm radiator paired with a conventional 25mm fan creates roughly:

And 11mm is enormous when a RAM heatspreader is already sitting near the edge of the fan frame.

Real Cases Prove That RAM Interference Is Not Theoretical

This is where manufacturers become much more useful than generic PC-building advice.

Case Study 1: Fractal North Gives You 35mm

Fractal Design's own radiator compatibility documentation for the North states that a top-mounted radiator leaves a

maximum motherboard component height of 35mm

, and the company specifically tells builders to check RAM height before installation.

That comparison should make any builder uncomfortable.

A nominal 35mm motherboard-component envelope versus 34.9mm RAM leaves essentially no useful margin on paper, while a 42.23mm RGB module is already beyond that published limit.

Sometimes that price is your top radiator.

Case Study 2: NZXT Explicitly Requires Low-Profile Memory

Its H5 Flow (2024) specifications allow up to a

280mm top mounting is specifically restricted to configurations using low-profile memory

That wording matters because it exposes a dirty little problem with PC case specifications.

NZXT repeated the same warning in its 2026 Kraken compatibility guidance: top mounting a 280mm AIO in the H5 Flow series is possible only with low-profile memory.

 expressed in manufacturer language rather than forum speculation.

Case Study 3: Lian Li Built Hardware Specifically to Avoid Memory Interference

Perhaps the most revealing evidence is when a manufacturer creates a physical workaround.

Lian Li's RB-001 radiator offset brackets were designed to shift a top-mounted 240mm or 360mm radiator farther away from the motherboard area. Lian Li explicitly says the brackets provide additional room to avoid interference with memory when using an ATX motherboard.

A company designed and sold a bracket whose purpose includes moving the radiator away from memory interference, which tells us the problem is not merely that RAM is “too tall.” Case width, radiator rail position, motherboard placement, and lateral offset can be just as important.

Why blame the DIMMs when the real problem may be where the roof mounting holes were drilled?

Why Top-Mounted Radiator Interference Happens

There are several different ways a top-mounted AIO can interfere with RAM.

They often get lumped together as one problem.

1. The Fan Frame Hits the RAM Heatspreader

The radiator itself may sit above the RAM, but the 120mm or 140mm fan frames extend downward far enough that they overlap the top of the memory modules.

A 33mm G.SKILL Flare X5 and a 44mm Trident Z5 are not remotely equivalent from a clearance standpoint, even though both are ordinary desktop DDR5 DIMMs.

A thicker radiator moves the fan farther downward.

Using the examples above, a conventional

 produces approximately 52mm of stack depth, while an ARCTIC-style

 reaches approximately 63mm. Corsair independently describes 27mm radiators plus standard 25mm fans as a 52mm combination in its case compatibility guidance.

That difference can turn a clean fit into physical contact.

3. The Top Mount Is Not Offset Far Enough

The radiator mounting rails can sit directly above the DIMM slots or be shifted toward the side panel. A more aggressive offset lets the cooling assembly hang beside the RAM instead of directly above it.

This is precisely why hardware such as Lian Li's RB-001 offset bracket exists.

4. A 280mm Radiator Is Wider Than a 240mm Radiator

A typical 240mm AIO uses 120mm-class fans. A 280mm AIO uses 140mm-class fans and a wider radiator assembly, pushing more hardware inward toward the motherboard.

That helps explain why a chassis can accept a top 240mm radiator without qualification but require low-profile RAM for a 280mm configuration, exactly as NZXT specifies for the H5 Flow (2024).

5. The Motherboard Pushes DIMMs High Into the Roof Zone

Not all ATX motherboards place every component identically.

DIMM socket location, VRM heatsink dimensions, rear-I/O armor, EPS connectors, and decorative covers all influence the usable space beneath a top radiator.

This is why I never treat “ATX compatible” as a meaningful answer to

top-radiator clearance guide covering RAM, tubes, and motherboard space

 addresses that three-dimensional interaction in more detail.

Top Mounted Radiator Clearance: What the Numbers Actually Mean

Here is the comparison I wish every case listing included.

Component or SpecificationReal ExampleWhy It MattersConventional AIO radiator thickness27mm Corsair TITAN/H150i classForms the first part of the vertical stackStandard radiator fan thickness25mmPushes total conventional stack to about 52mmThick AIO radiator38mm ARCTIC Liquid Freezer III ProCan create roughly a 63mm stack with 25mm fansFractal North top motherboard-component limit35mmShows how little space may remain beneath a top radiatorKingston FURY Beast DDR5 height34.9mmLow-profile-ish design sits close to Fractal's 35mm exampleKingston FURY Beast DDR5 RGB height42.23mmRGB hardware increases collision riskG.SKILL Flare X5 height33mmBetter candidate for restricted top-mount buildsG.SKILL Trident Z5 RGB height44mmTall DIMM may exceed restrictive top-radiator envelopesNZXT H5 Flow 2024 top 280mm supportLow-profile RAM requiredManufacturer explicitly links RAM height to radiator compatibility

The radiator and fan dimensions above come from Corsair and ARCTIC, while the RAM heights come from Kingston and G.SKILL manufacturer specifications. Fractal and NZXT provide the case-side restrictions.

This is why I dislike compatibility calculators that reduce cooling to a green check mark.

How to Check RAM Clearance for a Top Mounted Radiator

Search the manufacturer's specifications for your exact memory family.

Why Top-Mounted Radiators Can Interfere with RAM

Top-mounted radiators look simple on a specification sheet.

They are not.

Clearance gets ugly.

A case may advertise support for a 240mm, 280mm, or 360mm radiator while saying almost nothing about the vertical and lateral space occupied by the radiator, its fans, motherboard VRM heatsinks, EPS cables, DIMM heatspreaders, RGB light bars, and tube fittings once all those components are installed together.

So why are we still treating “supports a 360mm radiator” as proof that the radiator actually fits?

I don't.

When I evaluate top mounted radiator clearance, radiator length is one of the least interesting numbers. The real question is whether the complete radiator-and-fan assembly occupies the same three-dimensional space as the RAM.

And sometimes it absolutely does.

AIO RAM Clearance Is a Geometry Problem, Not a Radiator-Length Problem

The basic mistake is surprisingly simple.

A 360mm radiator specification mostly tells you the mounting length. It does not automatically tell you how far downward the cooling assembly extends toward the motherboard.

Take Corsair's iCUE LINK TITAN 360 RX RGB as a useful real-world example. Corsair lists a 396 × 120 × 27mm radiator and 25mm-thick RX120 fans. That creates a nominal 52mm radiator-and-fan stack before we even start arguing about mounting brackets, screw heads, vibration pads, or installation tolerances.

That is already a substantial block hanging from the roof of a case.

Then consider ARCTIC's Liquid Freezer III Pro 360. ARCTIC uses a 38mm radiator, explicitly contrasting it with more conventional 27mm designs. That extra 11mm can be thermally useful, but from a compatibility perspective it is 11mm of additional hardware occupying space above the motherboard.

Thickness matters.

A lot.

If you want the broader compatibility math, ACEGEEK's guide to why radiator thickness breaks otherwise compatible PC builds covers the other collision zones as well: VRM heatsinks, EPS cables, tubes, GPU space, and fan frames.

The Equation Builders Should Actually Use

For a normal top-mounted AIO, I think about clearance roughly like this:

Required roof clearance = radiator thickness + fan thickness + installation margin

For example:

27mm radiator + 25mm fan = 52mm stack

But 52mm is not a universal safe number.

A thicker 38mm radiator paired with a conventional 25mm fan creates roughly:

38mm + 25mm = 63mm

That is an 11mm increase, or about 21% more stack depth than the 52mm example.

And 11mm is enormous when a RAM heatspreader is already sitting near the edge of the fan frame.

Real Cases Prove That RAM Interference Is Not Theoretical

This is where manufacturers become much more useful than generic PC-building advice.

Case Study 1: Fractal North Gives You 35mm

Fractal Design's own radiator compatibility documentation for the North states that a top-mounted radiator leaves a maximum motherboard component height of 35mm, and the company specifically tells builders to check RAM height before installation.

Read that number again.

Thirty-five millimeters.

Now compare it with actual DDR5 modules.

Kingston lists the non-RGB FURY Beast DDR5 at 34.9mm tall. Its RGB version rises to 42.23mm.

That comparison should make any builder uncomfortable.

A nominal 35mm motherboard-component envelope versus 34.9mm RAM leaves essentially no useful margin on paper, while a 42.23mm RGB module is already beyond that published limit.

And RGB memory can go higher.

G.SKILL lists Ripjaws S5 and Flare X5 at 33mm, but Trident Z5 and Trident Z5 RGB at 44mm.

Pretty heatspreaders have a price.

Sometimes that price is your top radiator.

Case Study 2: NZXT Explicitly Requires Low-Profile Memory

NZXT removes even more ambiguity.

Its H5 Flow (2024) specifications allow up to a 240mm radiator at the top, while 280mm top mounting is specifically restricted to configurations using low-profile memory.

That wording matters because it exposes a dirty little problem with PC case specifications.

The radiator technically fits.

The radiator and arbitrary RAM do not.

Those are different claims.

NZXT repeated the same warning in its 2026 Kraken compatibility guidance: top mounting a 280mm AIO in the H5 Flow series is possible only with low-profile memory.

That is radiator RAM clearance expressed in manufacturer language rather than forum speculation.

Case Study 3: Lian Li Built Hardware Specifically to Avoid Memory Interference

Perhaps the most revealing evidence is when a manufacturer creates a physical workaround.

Lian Li's RB-001 radiator offset brackets were designed to shift a top-mounted 240mm or 360mm radiator farther away from the motherboard area. Lian Li explicitly says the brackets provide additional room to avoid interference with memory when using an ATX motherboard.

Think about what that means.

Offset solves collisions.

A company designed and sold a bracket whose purpose includes moving the radiator away from memory interference, which tells us the problem is not merely that RAM is “too tall.” Case width, radiator rail position, motherboard placement, and lateral offset can be just as important.

Why blame the DIMMs when the real problem may be where the roof mounting holes were drilled?



Why Top-Mounted Radiator Interference Happens

There are several different ways a top-mounted AIO can interfere with RAM.

They often get lumped together as one problem.

That is sloppy.

1. The Fan Frame Hits the RAM Heatspreader

This is the classic failure.

The radiator itself may sit above the RAM, but the 120mm or 140mm fan frames extend downward far enough that they overlap the top of the memory modules.

Tall RGB memory makes this more likely.

A 33mm G.SKILL Flare X5 and a 44mm Trident Z5 are not remotely equivalent from a clearance standpoint, even though both are ordinary desktop DDR5 DIMMs.

2. The Radiator Is Too Thick

A thicker radiator moves the fan farther downward.

Using the examples above, a conventional 27mm radiator + 25mm fan produces approximately 52mm of stack depth, while an ARCTIC-style 38mm radiator + 25mm fan reaches approximately 63mm. Corsair independently describes 27mm radiators plus standard 25mm fans as a 52mm combination in its case compatibility guidance.

That difference can turn a clean fit into physical contact.

3. The Top Mount Is Not Offset Far Enough

Vertical space is only half the story.

The radiator mounting rails can sit directly above the DIMM slots or be shifted toward the side panel. A more aggressive offset lets the cooling assembly hang beside the RAM instead of directly above it.

This is precisely why hardware such as Lian Li's RB-001 offset bracket exists.

4. A 280mm Radiator Is Wider Than a 240mm Radiator

People obsess over length.

Width bites harder.

A typical 240mm AIO uses 120mm-class fans. A 280mm AIO uses 140mm-class fans and a wider radiator assembly, pushing more hardware inward toward the motherboard.

That helps explain why a chassis can accept a top 240mm radiator without qualification but require low-profile RAM for a 280mm configuration, exactly as NZXT specifies for the H5 Flow (2024).

5. The Motherboard Pushes DIMMs High Into the Roof Zone

Not all ATX motherboards place every component identically.

DIMM socket location, VRM heatsink dimensions, rear-I/O armor, EPS connectors, and decorative covers all influence the usable space beneath a top radiator.

This is why I never treat “ATX compatible” as a meaningful answer to PC case radiator clearance.

It is a starting point.

Nothing more.

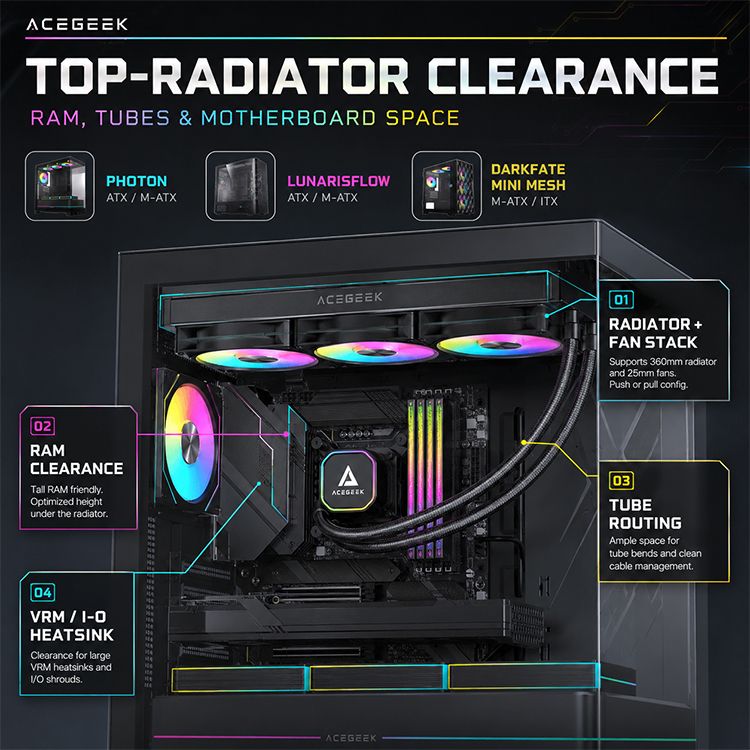

ACEGEEK's existing top-radiator clearance guide covering RAM, tubes, and motherboard space addresses that three-dimensional interaction in more detail.

Top Mounted Radiator Clearance: What the Numbers Actually Mean

Here is the comparison I wish every case listing included.

Component or SpecificationReal ExampleWhy It MattersConventional AIO radiator thickness27mm Corsair TITAN/H150i classForms the first part of the vertical stackStandard radiator fan thickness25mmPushes total conventional stack to about 52mmThick AIO radiator38mm ARCTIC Liquid Freezer III ProCan create roughly a 63mm stack with 25mm fansFractal North top motherboard-component limit35mmShows how little space may remain beneath a top radiatorKingston FURY Beast DDR5 height34.9mmLow-profile-ish design sits close to Fractal's 35mm exampleKingston FURY Beast DDR5 RGB height42.23mmRGB hardware increases collision riskG.SKILL Flare X5 height33mmBetter candidate for restricted top-mount buildsG.SKILL Trident Z5 RGB height44mmTall DIMM may exceed restrictive top-radiator envelopesNZXT H5 Flow 2024 top 280mm supportLow-profile RAM requiredManufacturer explicitly links RAM height to radiator compatibility

The radiator and fan dimensions above come from Corsair and ARCTIC, while the RAM heights come from Kingston and G.SKILL manufacturer specifications. Fractal and NZXT provide the case-side restrictions.

This is why I dislike compatibility calculators that reduce cooling to a green check mark.

A green check mark cannot show geometry.

How to Check RAM Clearance for a Top Mounted Radiator

Do this before ordering the cooler.

Not afterward.

Step 1: Find the Exact RAM Height

Do not search for “DDR5 height.”

Search the manufacturer's specifications for your exact memory family.

For reference, current published examples include:





G.SKILL Flare X5: 33mm



Kingston FURY Beast DDR5: 34.9mm



Kingston FURY Beast DDR5 RGB: 42.23mm



G.SKILL Trident Z5 RGB: 44mm

Four DDR5 products.

Eleven millimeters of difference.

That is enough to decide whether a radiator fits.

Step 2: Add Radiator Thickness and Fan Thickness

Never use “240mm” or “360mm” for this calculation.

Those numbers describe radiator class, not stack depth.

A Corsair 27mm radiator with 25mm fans creates approximately 52mm of depth. A 38mm ARCTIC radiator with 25mm fans would create approximately 63mm.

If you are still comparing radiator designs, read ACEGEEK's explanation of radiator fans versus ordinary case fans, because swapping to different fan thicknesses or fan types can change both clearance and pressure performance.

Step 3: Look for a Published Motherboard-Component Limit

This is gold when manufacturers provide it.

Fractal North: 35mm with a top radiator.

Older Fractal Meshify C specifications similarly list a 40mm maximum motherboard-component height with a top 120/240mm radiator, proving that these clearance restrictions are not isolated to one chassis generation.

If the manufacturer publishes such a number, believe it.

Do not assume your RGB RAM gets an exemption because someone on Reddit forced something similar into a vaguely similar build.

Step 4: Check Radiator Width and Side Offset

A 280mm AIO can be harder to fit than a 240mm model because the radiator and 140mm fans are wider.

Look at where the mounting rails sit relative to the motherboard.

If the rails are offset toward the glass or steel side panel, that can dramatically improve AIO RAM clearance.

Step 5: Check the VRM and EPS Zone Too

RAM may clear while the VRM heatsink does not.

Or the radiator may physically fit but make the CPU EPS 8-pin connector nearly impossible to service.

That kind of build technically “fits.”

I still call it bad.

Step 6: Keep Real Installation Margin

I would not deliberately design a system around zero-millimeter theoretical clearance.

Manufacturing tolerances exist. Screw heads exist. Fan frames flex. Cables need room. Tubes move during service.

And eventually you will want to remove the RAM without dismantling half the cooling system.

Should You Use Low-Profile RAM with a Top-Mounted AIO?

In a tight case, yes.

I generally prefer low-profile RAM for top-mounted AIO builds unless the chassis publishes generous offset and clearance figures.

That does not mean RGB RAM is bad.

It means RGB height is not free.

G.SKILL's own DDR5 lineup illustrates the tradeoff perfectly: Flare X5 and Ripjaws S5 are 33mm, while Trident Z5 RGB is 44mm. Kingston's standard FURY Beast is 34.9mm, versus 42.23mm for FURY Beast RGB.

If my case manufacturer tells me I have roughly 35mm available, I am not buying 44mm RAM and hoping physics negotiates.

It won't.

When Moving the Radiator Is Smarter Than Replacing the RAM

Sometimes the RAM is not the component that should change.

Move the radiator.

A front-mounted or side-mounted AIO can eliminate the roof-to-DIMM collision entirely, although it introduces other tradeoffs such as GPU clearance, intake-air temperature, chamber depth, and tube routing.

Modern dual-chamber cases make side mounting particularly interesting. ACEGEEK's guide to the pros and cons of side-mounting an AIO radiator explains why moving the heat exchanger away from the motherboard roof can solve clearance problems while changing the system's airflow behavior.

And if the whole build is still at the planning stage, choose the chassis around the hardware rather than buying a pretty enclosure first and discovering the geometry later. ACEGEEK's PC case size, airflow, and compatibility buying guide provides a broader starting point.

For example, ACEGEEK's Photon lists E-ATX/ATX/M-ATX/ITX support, a 245mm-wide chassis, and support for a 360mm AIO at the top. Those are useful first-stage specifications, although the exact RAM, motherboard, radiator, and fan combination should still be checked together before purchase.

Specs start the conversation.

They do not finish it.

FAQs

Can a top-mounted radiator interfere with RAM?

A top-mounted radiator can interfere with RAM when the combined radiator-and-fan assembly extends far enough below the case roof, or far enough inward from the mounting rails, to overlap tall DIMM heatspreaders or RGB light bars installed in the motherboard's memory slots.

This is especially common with wide 280mm radiators, thick radiators, narrow cases, minimally offset roof mounts, and memory above roughly 40mm in restrictive layouts. NZXT, for example, specifically requires low-profile memory for a top-mounted 280mm radiator in the H5 Flow (2024).

How do I check RAM clearance for a top-mounted radiator?

To check RAM clearance for a top-mounted radiator, compare the case's published motherboard-component clearance with your exact DIMM height, then calculate the complete radiator-and-fan depth and verify that the roof mounting position is offset far enough from the motherboard to prevent physical overlap.

Do not stop at “supports 360mm.” Measure RAM height, radiator thickness, fan thickness, mounting offset, VRM height, EPS connector access, and tube exit space. Fractal's North documentation demonstrates why: top radiator use reduces the permitted motherboard-component height to 35mm.

Is low-profile RAM better for a top-mounted AIO?

Low-profile RAM is generally better for a top-mounted AIO because shorter heatspreaders preserve more physical clearance beneath the radiator fans, reduce the chance of DIMM-to-fan contact, and make installation or future memory replacement easier in cases where the radiator mounting rails sit close to the motherboard.

For perspective, G.SKILL lists Flare X5 at 33mm and Trident Z5 RGB at 44mm, while Kingston lists FURY Beast DDR5 at 34.9mm and its RGB counterpart at 42.23mm. That 9–11mm difference can determine whether a tight installation works.

Does radiator thickness affect RAM clearance?

Radiator thickness directly affects RAM clearance because every additional millimeter of radiator depth pushes the attached fans farther toward the motherboard unless the case provides extra roof space or lateral offset, increasing the likelihood that the fan frame will overlap RAM heatspreaders, VRM heatsinks, or nearby motherboard hardware.

Corsair's typical 27mm radiator with 25mm fans produces about a 52mm stack, while ARCTIC's 38mm Liquid Freezer III-class radiator would reach roughly 63mm with conventional 25mm fans. That is why two 360mm AIOs can have very different clearance requirements.

Is a 240mm top AIO easier to fit than a 280mm AIO?

A 240mm top AIO is often easier to fit around RAM than a 280mm model because 240mm systems generally use narrower 120mm-class radiators and fans, while 280mm systems use wider 140mm-class hardware that can extend farther toward DIMM slots and motherboard heatsinks.

NZXT's H5 Flow (2024) is a useful example: its specifications support top 240mm radiators while placing a low-profile-memory condition on top 280mm installations. That is real evidence that radiator width can matter just as much as length.

What is the best RAM for a top-mounted AIO?

The best RAM for a clearance-sensitive top-mounted AIO is a memory kit with the required capacity and performance but the shortest practical heatspreader, ideally around 31–35mm when working with a compact case or a roof mount that provides limited motherboard-component clearance.

Examples include G.SKILL Flare X5 at 33mm and Kingston FURY Beast DDR5 at 34.9mm. By comparison, G.SKILL Trident Z5 RGB reaches 44mm and Kingston FURY Beast RGB reaches 42.23mm, making them harder to accommodate in restrictive top-mount layouts.

Can I fix radiator RAM interference without buying new memory?

Radiator RAM interference can often be fixed without replacing the memory by shifting the radiator outward on adjustable mounting rails, using a compatible offset bracket, changing from a 280mm to 240mm radiator, using thinner fans where thermally appropriate, or relocating the AIO to a front or side mounting position.

Lian Li's RB-001 is direct evidence for the offset approach: the company describes the bracket as providing additional room to avoid memory interference with top-mounted 240mm and 360mm radiators on ATX systems.

Build for Clearance Before You Build for RGB

Here is the hard truth.

Compatibility labels are incomplete.

A case that says “top 360mm radiator support” is telling you that a radiator of that mounting class can occupy the roof. It is not promising that your 44mm RGB memory, oversized VRM heatsinks, 38mm radiator, 25mm fans, EPS connector, tubes, and motherboard will peacefully occupy the remaining space together.

Fractal publishes a 35mm restriction. NZXT explicitly calls for low-profile memory in a 280mm top-mount configuration. Lian Li sells offset hardware designed partly to avoid memory interference. Those are not theoretical warnings. They are the industry admitting that top mount AIO clearance is a system-level problem.

So measure first.

Check the exact RAM height, the radiator thickness, the fan thickness, the roof-to-motherboard distance, the radiator mounting offset, the VRM heatsink height, and the EPS cable path before checkout.

Then choose the hardware.

If you are planning a new cooling-focused build, start by comparing ACEGEEK PC cases and their radiator support, then match the case, motherboard, RAM, and AIO as one physical system rather than four unrelated products.

Your RAM should light up.

Not fight your radiator.

Why do top-mounted radiators hit RAM? Learn how radiator thickness, fan depth, DIMM height, motherboard layout, and case offset determine real AIO RAM clearance.

Top-Radiator Clearance Explained: RAM, Tubes, and Motherboard Space

The Spec Sheet Lie Builders Keep Paying For

A case can claim “top 360mm radiator support” and still become a mechanical argument between the radiator, 25mm fans, tall DDR5 heat spreaders, EPS power cables, VRM heatsinks, fan screws, and AIO tube exits once the motherboard is actually installed. So why do we keep treating one line on a product page as permission?

I have seen this mistake too many times in build planning: someone buys the case first, buys the AIO second, then discovers the radiator technically fits but the fans press into the RAM latches, the tubes kink against the rear exhaust fan, or the motherboard’s top heatsink sits exactly where the radiator tank wants to live.

That is not bad luck. That is bad reading.

AIO radiator clearance is the real vertical and lateral space available between the top fan/radiator mounting rail and the tallest parts on the motherboard side of the build. It includes the radiator, fans, screw heads, tube fittings, EPS cable bend, RAM height, and motherboard heatsink height. The keyword is

 gets one thing right that many product pages bury: case size, cooling support, fan support, and compatibility all have to be read together. A radiator mount is not a guarantee. It is an invitation to measure.

Why Top-Mounted AIOs Fail: RAM, Tubes, and Board Furniture

Top-mounted radiator clearance usually fails in three places: RAM, tube routing, and motherboard heatsinks. Not the radiator length. Not the fan screw pattern. The failure happens in the ugly three-dimensional space that marketing photos avoid.

Standard bare or low-profile DDR5 modules often sit near the 31–35mm range, while RGB memory kits can climb into the 42–45mm zone. That difference sounds tiny until a 52mm radiator-plus-fan stack is hanging above the DIMM slots.

Here is the hard truth: radiator RAM clearance is not just about whether the RAM physically touches the fan. It is about whether you can install, remove, and service the memory without tearing half the cooling system apart.

Noctua’s public clearance documentation for air coolers is useful because it exposes the same geometry problem PC builders face with top radiators. The company states that the NH-D15 allows 32mm RAM clearance in default dual-fan mode, and moving the fan up by 5mm allows 37mm RAM but also requires 5mm more case clearance, according to Noctua’s

. Different cooler type, same lesson: every millimeter you “gain” somewhere gets charged somewhere else.

Tube Routing Is Where Neat Builds Become Dumb Builds

AIO tube routing gets treated like a style choice. It is not.

If the tube fittings exit near the rear of the top radiator, they may crash into the rear exhaust fan, the EPS 8-pin cable, or the upper-left VRM heatsink. If the fittings exit toward the front, the tubes may sweep across tall RAM or fight the front-panel cable bundle. And if the tubes are too tight, the pump block can rotate into an awkward orientation that makes the whole build look like it lost a wrestling match.

I will be blunt: a clean tube curve matters more than a perfectly symmetrical radiator photo. A mild loop is good. A forced bend is a warning. A kink is a failed build.

Motherboard Heatsinks Are Getting Taller Because CPUs Are Getting Hungrier

Modern motherboards are not flat boards anymore. They are heat-spreader cities.

VRM heatsinks, I/O shrouds, M.2 shields, debug displays, and reinforced PCIe hardware all create local height conflicts. High-end Z790, X670E, X870E, and B850 boards often bring larger heatsinks because power delivery is no longer a boring background detail.

Why? Look at the CPU numbers. Intel lists the Core i9-14900K at 125W Processor Base Power and 253W Maximum Turbo Power on its official

. AMD lists the Ryzen 9 7950X at 170W default TDP, 95°C Tjmax, and says a liquid cooler is recommended for optimal performance on its

. That heat does not disappear because the case has tempered glass and RGB.

 is a useful internal read here because TDP is not just a CPU shopping number. It affects cooler choice, case pressure, motherboard behavior, fan curves, and whether a top radiator gets enough room to actually work.

The Clearance Stack: Stop Measuring Only the Radiator

Most builders ask, “Will a 360mm AIO fit?”

The better question is: “Will my full cooling stack fit above this exact motherboard and RAM kit with enough room for cables and tube movement?”

Here is the field math I use before approving a top-mounted AIO plan.

Part of the StackTypical Number to CheckWhy It MattersMy Blunt RuleRadiator thickness27mm, 30mm, 38mm, or thickerAdds directly to top clearance demandThick radiators punish compact casesFan thicknessUsually 25mm, sometimes 30mmFans often collide before the radiator doesNever ignore fan depthScrew head / washer space1–3mmSmall, but realCount it when clearance is tightRAM height31mm standard, 40mm+ RGBTall RAM is the classic top-radiator trapLow-profile RAM saves buildsVRM / I/O heatsink heightBoard-specificOften conflicts with radiator tanks or tubesCheck photos and dimensionsEPS cable bend10–20mm practical spaceThe 8-pin cable needs room to curveDo not crush power cables for aestheticsService gap5–10mm minimum preferredLets you remove RAM, clean fans, and avoid vibrationZero-gap builds age badly

The industry loves to advertise length: 240mm, 280mm, 360mm, 420mm. Length sells. But top mounted radiator clearance is usually lost in depth and offset, not length.

That is why I like product pages that publish several compatibility values, not just one. Acegeek’s

, for example, lists E-ATX/ATX/M-ATX/ITX motherboard support, 185mm max CPU cooler clearance, top 120mm ×3 / 140mm ×2 fan support, and top 360mm AIO support. That gives a builder more context than a lonely “360mm supported” badge.

 goes further with top 420mm/360mm AIO support, 180mm CPU cooler clearance, and top/side/bottom fan support. I am not saying every build needs that much case. I am saying serious thermal builds benefit from options.

Case Support Does Not Mean Motherboard Support

A PC case can support a top 360mm radiator in the chassis frame while your specific motherboard blocks the practical installation. The case manufacturer may have tested with a thinner board layout, lower RAM, or different tube position. Your build may not match that test condition.

The motherboard matters because the top edge of the board is crowded. EPS connectors sit there. VRM heatsinks sit there. Fan headers sit there. RGB headers sit there. And on some boards, the I/O cover rises like a wall exactly where the radiator tank wants to sit.

So yes, motherboard heatsink clearance is part of AIO cooler clearance.

And no, “ATX compatible” does not answer the question.

 is a useful supporting read because it separates entry, mid-range, and high-end board expectations. The hidden clearance lesson is simple: the more aggressive the motherboard tier, the more likely it is to bring larger heatsinks and shrouds near the top radiator zone.

The Industry Already Knows Heat Density Is the Problem

Desktop PC builders act like clearance problems are hobby drama. The infrastructure world treats them as economics.

Reuters reported in March 2026 that Ecolab agreed to buy CoolIT Systems for about $4.75 billion, citing demand for liquid cooling in AI data centers and higher chip densities, in its report on the

. That is not a gaming forum argument. That is capital moving toward thermal control.

The U.S. National Renewable Energy Laboratory explains that Power Usage Effectiveness, or PUE, measures total data center power divided by IT equipment power, and notes that typical average PUE can sit around 1.8 while efficient facilities often target 1.2 or less in its

. Cooling is not decorative at that scale. It is the bill.

A desktop case is a tiny thermal facility with worse instrumentation, worse airflow modeling, more glass, more dust, and an owner who may have chosen parts because the lighting matched. Is it any surprise that “PC case radiator clearance” keeps turning into a support-ticket topic?

How to Measure Radiator Clearance Before You Buy

Do this before checkout. Not after delivery.

Step 1: Add the Radiator and Fan Thickness

Take the radiator thickness and add fan thickness. A common setup is 27mm radiator + 25mm fan = 52mm. A thicker radiator or performance fan can push that toward 60mm or more.

Then add a few millimeters for screw heads, vibration pads, manufacturing tolerance, and sanity.

Top offset is the distance between the radiator/fan mounting position and the motherboard plane. This is the number many case pages do not publish clearly. When it is missing, study build photos, installation manuals, and user images.

If the top mount sits directly above the DIMM slots with little lateral offset, tall RAM becomes dangerous. If the radiator is offset toward the side panel, you get more breathing room.

Search the exact RAM kit model. Not the brand family. Not “Vengeance DDR5” in general. The exact SKU.

If your kit is 42mm tall and your case has a tight top mount, assume conflict until proven otherwise. Low-profile RAM is boring. Boring works.

Step 4: Inspect the Motherboard’s Top Edge

Look at the VRM heatsink near the CPU socket, the rear I/O shroud, the EPS cable location, and any top-edge headers. Big heatsinks are not bad. But they must be accounted for.

Step 5: Plan Tube Direction Before Installation

Do not wait until the radiator is screwed in to think about tube routing. Decide whether the tubes should exit front or rear, then check whether that path fights RAM, rear exhaust, EPS cables, or the pump block orientation.

 makes the right broader point: density, cable paths, and airflow routing are not minor details when watts are packed into a smaller enclosure.

Top Radiator vs Front Radiator: The Practical Trade-Off

Top mounting is popular because it usually exhausts CPU heat directly out of the case and keeps the pump below the highest point of the loop. Front mounting often gives the radiator cooler intake air but may dump CPU heat into the GPU zone and reduce GPU clearance.

There is no universal winner. There are only trade-offs.

Mount PositionBest Use CaseMain RiskClearance ProblemTop radiatorBalanced gaming/workstation buildsRAM, VRM, EPS cable conflictVertical stack over motherboardFront radiatorCPU-heavy workloads needing cooler intake airWarmer GPU intake airGPU length and tube reachSide radiatorShowcase or dual-chamber casesTube bend and panel airflowWidth and cable chamber spaceBottom radiatorRarely ideal for AIOsPump orientation and air migration riskGPU and floor clearance

 is interesting from a planning angle: it lists top 240/280mm AIO support and front 360mm AIO support. That tells a builder the case is not pretending every radiator belongs in the roof. Sometimes the smarter AIO path is front-mounted, especially in M-ATX and ITX territory.

But I still prefer top exhaust when the clearance is honest. It keeps the CPU heat path predictable and avoids feeding radiator-warmed air into a hungry graphics card. Predictable beats pretty.

My Rule of Thumb: Leave a Finger, Not a Prayer

If the fan frame kisses the RAM heatsink, the build is not “tight.” It is compromised. If the EPS cable must be flattened to close the side panel, the build is not clean. It is forced. If the tubes press against a heatsink, the build is waiting for vibration, wear, or a future maintenance headache.

AIO radiator clearance should include a usable service gap. I want enough space to remove RAM, route the EPS cable without stress, and avoid fan vibration against nearby parts. In real builds, 5–10mm of breathing room can separate a nice installation from a cursed one.

And yes, I know some builders make tighter systems work.

Some people also drive with the fuel light on for 30 miles. That does not make it a strategy.

AIO radiator clearance is the total usable space a PC case provides for the radiator, fans, screws, tubes, RAM height, motherboard heatsinks, and cable bends without physical conflict. It is not only radiator length; it is the real three-dimensional installation room around the top, front, or side radiator mount.

For top-mounted AIOs, the key danger zone is above the motherboard. The radiator stack may fit the roof, but the fans can still collide with tall RAM, VRM heatsinks, or the EPS cable near the CPU socket.

How do I measure top mounted radiator clearance?

Top mounted radiator clearance is measured by adding radiator thickness, fan thickness, screw allowance, RAM height, motherboard heatsink height, and cable-bend space, then comparing that stack against the case’s real top-mount offset. The safest method is to verify both the case specifications and real build photos using your exact motherboard and memory class.

Do not rely on “top 360mm support” alone. A 360mm radiator length tells you fan pattern compatibility; it does not prove vertical clearance over the DIMM slots or lateral clearance beside the rear I/O shroud.

A top radiator may fit with tall RAM only when the case has enough vertical clearance, enough side offset from the motherboard, and enough room for the fan frame to avoid the DIMM heat spreaders. RGB RAM above roughly 40mm should be treated as a clearance risk in compact or narrow cases.

The safer move is to use low-profile RAM when planning a top-mounted AIO. Tall memory can work, but it reduces margin and makes future service more annoying.

Does motherboard heatsink clearance matter for AIO coolers?

Motherboard heatsink clearance matters for AIO coolers because top radiators and fan frames sit directly above the motherboard’s upper edge, where VRM heatsinks, rear I/O shrouds, EPS connectors, and fan headers often live. A case may support the radiator length while a tall heatsink blocks the actual installation.

High-end motherboards are more likely to have large heatsinks. That does not make them bad boards, but it means builders must check physical spacing before buying the case and cooler.

Is a 360mm AIO always better than a 240mm AIO?

A 360mm AIO is not always better than a 240mm AIO because radiator size only helps when the case has enough clearance, airflow, fan control, and tube routing space to use it properly. A cramped 360mm top mount can be louder, harder to service, and more awkward than a clean 240mm or 280mm installation.

For many gaming systems, a well-fed 240mm or 280mm AIO in a sensible airflow path beats a forced 360mm installation with bad clearance. Bigger is not automatically smarter.

The safest AIO tube routing is a smooth, unforced curve that avoids sharp bends, RAM contact, rear fan interference, EPS cable pressure, and pump-block strain. The tubes should reach naturally without twisting the pump housing or pressing against motherboard heatsinks, fan blades, glass panels, or sharp metal edges.

Plan tube direction before screwing the radiator down. If the tubes look stressed during a dry fit, change the orientation or radiator position before final assembly.

Final Thoughts: Measure First, Then Build

Do the clearance audit before buying the case, cooler, RAM, or motherboard.

Write down your radiator thickness, fan thickness, RAM height, motherboard model, top-mount support, tube exit direction, and EPS cable path. Then compare those numbers against real case dimensions and real build photos. Start with Acegeek’s

, and only then choose between a compact option, a mesh-first layout, or a larger case like the

My advice is simple: stop asking whether the radiator fits. Ask whether the whole cooling system fits without lying to yourself.

Top-Radiator Clearance Explained: RAM, Tubes, and Motherboard Space

The Spec Sheet Lie Builders Keep Paying For

Clearance is math.

A case can claim “top 360mm radiator support” and still become a mechanical argument between the radiator, 25mm fans, tall DDR5 heat spreaders, EPS power cables, VRM heatsinks, fan screws, and AIO tube exits once the motherboard is actually installed. So why do we keep treating one line on a product page as permission?

I have seen this mistake too many times in build planning: someone buys the case first, buys the AIO second, then discovers the radiator technically fits but the fans press into the RAM latches, the tubes kink against the rear exhaust fan, or the motherboard’s top heatsink sits exactly where the radiator tank wants to live.

That is not bad luck. That is bad reading.

AIO radiator clearance is the real vertical and lateral space available between the top fan/radiator mounting rail and the tallest parts on the motherboard side of the build. It includes the radiator, fans, screw heads, tube fittings, EPS cable bend, RAM height, and motherboard heatsink height. The keyword is available, not advertised.

Acegeek’s own PC case buying guide gets one thing right that many product pages bury: case size, cooling support, fan support, and compatibility all have to be read together. A radiator mount is not a guarantee. It is an invitation to measure.

Why Top-Mounted AIOs Fail: RAM, Tubes, and Board Furniture

Top-mounted radiator clearance usually fails in three places: RAM, tube routing, and motherboard heatsinks. Not the radiator length. Not the fan screw pattern. The failure happens in the ugly three-dimensional space that marketing photos avoid.

RAM Height Is the First Collision Point

Standard bare or low-profile DDR5 modules often sit near the 31–35mm range, while RGB memory kits can climb into the 42–45mm zone. That difference sounds tiny until a 52mm radiator-plus-fan stack is hanging above the DIMM slots.

Here is the hard truth: radiator RAM clearance is not just about whether the RAM physically touches the fan. It is about whether you can install, remove, and service the memory without tearing half the cooling system apart.

Noctua’s public clearance documentation for air coolers is useful because it exposes the same geometry problem PC builders face with top radiators. The company states that the NH-D15 allows 32mm RAM clearance in default dual-fan mode, and moving the fan up by 5mm allows 37mm RAM but also requires 5mm more case clearance, according to Noctua’s RAM clearance FAQ. Different cooler type, same lesson: every millimeter you “gain” somewhere gets charged somewhere else.

Tube Routing Is Where Neat Builds Become Dumb Builds

AIO tube routing gets treated like a style choice. It is not.

If the tube fittings exit near the rear of the top radiator, they may crash into the rear exhaust fan, the EPS 8-pin cable, or the upper-left VRM heatsink. If the fittings exit toward the front, the tubes may sweep across tall RAM or fight the front-panel cable bundle. And if the tubes are too tight, the pump block can rotate into an awkward orientation that makes the whole build look like it lost a wrestling match.

I will be blunt: a clean tube curve matters more than a perfectly symmetrical radiator photo. A mild loop is good. A forced bend is a warning. A kink is a failed build.

Motherboard Heatsinks Are Getting Taller Because CPUs Are Getting Hungrier

Modern motherboards are not flat boards anymore. They are heat-spreader cities.

VRM heatsinks, I/O shrouds, M.2 shields, debug displays, and reinforced PCIe hardware all create local height conflicts. High-end Z790, X670E, X870E, and B850 boards often bring larger heatsinks because power delivery is no longer a boring background detail.

Why? Look at the CPU numbers. Intel lists the Core i9-14900K at 125W Processor Base Power and 253W Maximum Turbo Power on its official Core i9-14900K specification page. AMD lists the Ryzen 9 7950X at 170W default TDP, 95°C Tjmax, and says a liquid cooler is recommended for optimal performance on its Ryzen 9 7950X product page. That heat does not disappear because the case has tempered glass and RGB.

Acegeek’s Understanding TDP guide is a useful internal read here because TDP is not just a CPU shopping number. It affects cooler choice, case pressure, motherboard behavior, fan curves, and whether a top radiator gets enough room to actually work.

The Clearance Stack: Stop Measuring Only the Radiator

Most builders ask, “Will a 360mm AIO fit?”

Wrong question.

The better question is: “Will my full cooling stack fit above this exact motherboard and RAM kit with enough room for cables and tube movement?”

Here is the field math I use before approving a top-mounted AIO plan.

Part of the StackTypical Number to CheckWhy It MattersMy Blunt RuleRadiator thickness27mm, 30mm, 38mm, or thickerAdds directly to top clearance demandThick radiators punish compact casesFan thicknessUsually 25mm, sometimes 30mmFans often collide before the radiator doesNever ignore fan depthScrew head / washer space1–3mmSmall, but realCount it when clearance is tightRAM height31mm standard, 40mm+ RGBTall RAM is the classic top-radiator trapLow-profile RAM saves buildsVRM / I/O heatsink heightBoard-specificOften conflicts with radiator tanks or tubesCheck photos and dimensionsEPS cable bend10–20mm practical spaceThe 8-pin cable needs room to curveDo not crush power cables for aestheticsService gap5–10mm minimum preferredLets you remove RAM, clean fans, and avoid vibrationZero-gap builds age badly

The industry loves to advertise length: 240mm, 280mm, 360mm, 420mm. Length sells. But top mounted radiator clearance is usually lost in depth and offset, not length.

That is why I like product pages that publish several compatibility values, not just one. Acegeek’s Photon, for example, lists E-ATX/ATX/M-ATX/ITX motherboard support, 185mm max CPU cooler clearance, top 120mm ×3 / 140mm ×2 fan support, and top 360mm AIO support. That gives a builder more context than a lonely “360mm supported” badge.

The LunarisFlow goes further with top 420mm/360mm AIO support, 180mm CPU cooler clearance, and top/side/bottom fan support. I am not saying every build needs that much case. I am saying serious thermal builds benefit from options.

Case Support Does Not Mean Motherboard Support

This is where buyers get tricked.

A PC case can support a top 360mm radiator in the chassis frame while your specific motherboard blocks the practical installation. The case manufacturer may have tested with a thinner board layout, lower RAM, or different tube position. Your build may not match that test condition.

The motherboard matters because the top edge of the board is crowded. EPS connectors sit there. VRM heatsinks sit there. Fan headers sit there. RGB headers sit there. And on some boards, the I/O cover rises like a wall exactly where the radiator tank wants to sit.

So yes, motherboard heatsink clearance is part of AIO cooler clearance.

And no, “ATX compatible” does not answer the question.

Acegeek’s motherboard buying guide is a useful supporting read because it separates entry, mid-range, and high-end board expectations. The hidden clearance lesson is simple: the more aggressive the motherboard tier, the more likely it is to bring larger heatsinks and shrouds near the top radiator zone.



The Industry Already Knows Heat Density Is the Problem

Desktop PC builders act like clearance problems are hobby drama. The infrastructure world treats them as economics.

Reuters reported in March 2026 that Ecolab agreed to buy CoolIT Systems for about $4.75 billion, citing demand for liquid cooling in AI data centers and higher chip densities, in its report on the CoolIT acquisition. That is not a gaming forum argument. That is capital moving toward thermal control.

The U.S. National Renewable Energy Laboratory explains that Power Usage Effectiveness, or PUE, measures total data center power divided by IT equipment power, and notes that typical average PUE can sit around 1.8 while efficient facilities often target 1.2 or less in its data center efficiency explainer. Cooling is not decorative at that scale. It is the bill.

Now shrink the problem.

A desktop case is a tiny thermal facility with worse instrumentation, worse airflow modeling, more glass, more dust, and an owner who may have chosen parts because the lighting matched. Is it any surprise that “PC case radiator clearance” keeps turning into a support-ticket topic?

How to Measure Radiator Clearance Before You Buy

Do this before checkout. Not after delivery.

Step 1: Add the Radiator and Fan Thickness

Take the radiator thickness and add fan thickness. A common setup is 27mm radiator + 25mm fan = 52mm. A thicker radiator or performance fan can push that toward 60mm or more.

Then add a few millimeters for screw heads, vibration pads, manufacturing tolerance, and sanity.

Step 2: Check the Case’s Top Offset

Top offset is the distance between the radiator/fan mounting position and the motherboard plane. This is the number many case pages do not publish clearly. When it is missing, study build photos, installation manuals, and user images.

If the top mount sits directly above the DIMM slots with little lateral offset, tall RAM becomes dangerous. If the radiator is offset toward the side panel, you get more breathing room.

Step 3: Measure RAM Height

Search the exact RAM kit model. Not the brand family. Not “Vengeance DDR5” in general. The exact SKU.

If your kit is 42mm tall and your case has a tight top mount, assume conflict until proven otherwise. Low-profile RAM is boring. Boring works.

Step 4: Inspect the Motherboard’s Top Edge

Look at the VRM heatsink near the CPU socket, the rear I/O shroud, the EPS cable location, and any top-edge headers. Big heatsinks are not bad. But they must be accounted for.

Step 5: Plan Tube Direction Before Installation

Do not wait until the radiator is screwed in to think about tube routing. Decide whether the tubes should exit front or rear, then check whether that path fights RAM, rear exhaust, EPS cables, or the pump block orientation.

For compact cases, Acegeek’s small-case thermal analysis makes the right broader point: density, cable paths, and airflow routing are not minor details when watts are packed into a smaller enclosure.

Top Radiator vs Front Radiator: The Practical Trade-Off

Top mounting is popular because it usually exhausts CPU heat directly out of the case and keeps the pump below the highest point of the loop. Front mounting often gives the radiator cooler intake air but may dump CPU heat into the GPU zone and reduce GPU clearance.

There is no universal winner. There are only trade-offs.

Mount PositionBest Use CaseMain RiskClearance ProblemTop radiatorBalanced gaming/workstation buildsRAM, VRM, EPS cable conflictVertical stack over motherboardFront radiatorCPU-heavy workloads needing cooler intake airWarmer GPU intake airGPU length and tube reachSide radiatorShowcase or dual-chamber casesTube bend and panel airflowWidth and cable chamber spaceBottom radiatorRarely ideal for AIOsPump orientation and air migration riskGPU and floor clearance

This is why the Acegeek Darkfate Mini Mesh is interesting from a planning angle: it lists top 240/280mm AIO support and front 360mm AIO support. That tells a builder the case is not pretending every radiator belongs in the roof. Sometimes the smarter AIO path is front-mounted, especially in M-ATX and ITX territory.

But I still prefer top exhaust when the clearance is honest. It keeps the CPU heat path predictable and avoids feeding radiator-warmed air into a hungry graphics card. Predictable beats pretty.

My Rule of Thumb: Leave a Finger, Not a Prayer

I do not trust zero-clearance builds.

If the fan frame kisses the RAM heatsink, the build is not “tight.” It is compromised. If the EPS cable must be flattened to close the side panel, the build is not clean. It is forced. If the tubes press against a heatsink, the build is waiting for vibration, wear, or a future maintenance headache.

AIO radiator clearance should include a usable service gap. I want enough space to remove RAM, route the EPS cable without stress, and avoid fan vibration against nearby parts. In real builds, 5–10mm of breathing room can separate a nice installation from a cursed one.

And yes, I know some builders make tighter systems work.

Some people also drive with the fuel light on for 30 miles. That does not make it a strategy.

FAQs

What is AIO radiator clearance?

AIO radiator clearance is the total usable space a PC case provides for the radiator, fans, screws, tubes, RAM height, motherboard heatsinks, and cable bends without physical conflict. It is not only radiator length; it is the real three-dimensional installation room around the top, front, or side radiator mount.

For top-mounted AIOs, the key danger zone is above the motherboard. The radiator stack may fit the roof, but the fans can still collide with tall RAM, VRM heatsinks, or the EPS cable near the CPU socket.

How do I measure top mounted radiator clearance?

Top mounted radiator clearance is measured by adding radiator thickness, fan thickness, screw allowance, RAM height, motherboard heatsink height, and cable-bend space, then comparing that stack against the case’s real top-mount offset. The safest method is to verify both the case specifications and real build photos using your exact motherboard and memory class.

Do not rely on “top 360mm support” alone. A 360mm radiator length tells you fan pattern compatibility; it does not prove vertical clearance over the DIMM slots or lateral clearance beside the rear I/O shroud.

Will a top radiator fit with tall RAM?

A top radiator may fit with tall RAM only when the case has enough vertical clearance, enough side offset from the motherboard, and enough room for the fan frame to avoid the DIMM heat spreaders. RGB RAM above roughly 40mm should be treated as a clearance risk in compact or narrow cases.

The safer move is to use low-profile RAM when planning a top-mounted AIO. Tall memory can work, but it reduces margin and makes future service more annoying.

Does motherboard heatsink clearance matter for AIO coolers?

Motherboard heatsink clearance matters for AIO coolers because top radiators and fan frames sit directly above the motherboard’s upper edge, where VRM heatsinks, rear I/O shrouds, EPS connectors, and fan headers often live. A case may support the radiator length while a tall heatsink blocks the actual installation.

High-end motherboards are more likely to have large heatsinks. That does not make them bad boards, but it means builders must check physical spacing before buying the case and cooler.

Is a 360mm AIO always better than a 240mm AIO?

A 360mm AIO is not always better than a 240mm AIO because radiator size only helps when the case has enough clearance, airflow, fan control, and tube routing space to use it properly. A cramped 360mm top mount can be louder, harder to service, and more awkward than a clean 240mm or 280mm installation.

For many gaming systems, a well-fed 240mm or 280mm AIO in a sensible airflow path beats a forced 360mm installation with bad clearance. Bigger is not automatically smarter.

What is the safest AIO tube routing?

The safest AIO tube routing is a smooth, unforced curve that avoids sharp bends, RAM contact, rear fan interference, EPS cable pressure, and pump-block strain. The tubes should reach naturally without twisting the pump housing or pressing against motherboard heatsinks, fan blades, glass panels, or sharp metal edges.

Plan tube direction before screwing the radiator down. If the tubes look stressed during a dry fit, change the orientation or radiator position before final assembly.

Final Thoughts: Measure First, Then Build

Do the clearance audit before buying the case, cooler, RAM, or motherboard.

Write down your radiator thickness, fan thickness, RAM height, motherboard model, top-mount support, tube exit direction, and EPS cable path. Then compare those numbers against real case dimensions and real build photos. Start with Acegeek’s PC case buying guide, cross-check thermal demand with the TDP explainer, and only then choose between a compact option, a mesh-first layout, or a larger case like the LunarisFlow.

My advice is simple: stop asking whether the radiator fits. Ask whether the whole cooling system fits without lying to yourself.

Top-radiator clearance explained for AIO builds: RAM height, tube routing, motherboard heatsinks, case specs, and how to measure before buying.

Acegeek offers high-quality computer cases, cooling solutions, power supplies, and peripherals. Explore our website for top-notch products & accessories.

Blog

Currently Browsing：PC case radiator clearance
