GPU and Radiator Clearance Math for Tight Chassis Designs

A graphics card does not care what the product page promised.

It cares about metal.

When a 304 mm GPU meets a case advertising 305 mm of GPU clearance, the specification technically says “compatible,” yet the builder still has to account for manufacturing tolerances, card insertion angle, front fans, cable covers, power-connector space, airflow, and the unpleasant possibility that removing the card later will require dismantling half the machine. Does that sound like a successful fit?

I call it mechanical debt.

The hard truth is that GPU clearance is not one measurement. It is a three-dimensional space budget involving card length, cooler thickness, card width, power-cable projection, radiator position, fan thickness, tubing, brackets, and the direction in which each component enters the chassis.

Before choosing hardware, start with AceGeek’s guide to choosing the right PC case for your build. Then stop reading clearance figures as isolated promises.

Start doing the math.

GPU Clearance Is an Equation, Not a Marketing Number

The basic front-radiator calculation looks simple:

Usable GPU length = Published case clearance − radiator intrusion − fan intrusion − bracket intrusion − reserve margin

But there is a catch.

You subtract a component only when it enters the same physical axis as the graphics card. A top-mounted radiator may reduce RAM, motherboard-heatsink, or CPU-block clearance without reducing GPU length at all. A side-mounted radiator may consume card-width space, tube-routing space, or intake volume rather than card length.

Wrong axis, wrong answer.

That distinction separates useful PC case compatibility analysis from someone blindly subtracting 52 mm because a case supports a radiator somewhere inside it.

The Three Axes You Must Measure

Length axis: Runs from the rear expansion slots toward the front of the case. Front radiators, front fans, reservoirs, drive cages, and cable covers can reduce this number.

Width axis: Runs from the motherboard toward the side panel. GPU width, power connectors, cable bends, vertical mounts, and side radiators compete here.

Thickness axis: Runs across the PCIe slots toward the case floor or PSU chamber. GPU cooler thickness, bottom fans, risers, and intake gaps compete here.

Length decides whether the card enters.

Thickness decides whether it breathes.

Width decides whether the panel closes without crushing a cable.

AceGeek’s small-case GPU compatibility checklist covers the broader component checks. Here, I am focusing on the arithmetic that catches bad combinations before checkout.

The Millimeter Budget Builders Usually Ignore

Most standard 120 mm fans are approximately 25 mm thick. Radiators vary more than many buyers realize.

ARCTIC lists its Liquid Freezer III 360 radiator at 398 × 120 × 38 mm and states that its thicker fin stack increases cooling surface by 23% compared with its previous design. Its P12 fan is 25 mm thick. That creates a 63 mm radiator-and-fan stack before brackets, screw heads, anti-vibration material, or tube fittings are considered.

Sixty-three millimeters.

A conventional 27 mm radiator with 25 mm fans consumes 52 mm. A 30 mm radiator with the same fans consumes 55 mm. A thicker 38 mm model consumes 63 mm.

Cooling configurationRadiator thicknessFan thicknessCombined stack340 mm case clearance after subtractionWith my 10 mm reserveSlim radiator + standard fans27 mm25 mm52 mm288 mm278 mm recommended GPU maximumMid-thickness radiator + standard fans30 mm25 mm55 mm285 mm275 mm recommended GPU maximumThick ARCTIC-style radiator + standard fans38 mm25 mm63 mm277 mm267 mm recommended GPU maximumThick radiator + slim fans38 mm15 mm53 mm287 mm277 mm recommended GPU maximum

The last column is not an industry regulation. It is my pass/fail rule for a build that must be assembled, transported, cleaned, and upgraded without turning every maintenance job into surgery.

Could you run with 3 mm of spare length?

Probably.

Should you design around it?

No.

Three Real Fitment Cases That Expose Bad Clearance Logic

Case 1: AceGeek Blade and an RTX 4090 Founders Edition

The AceGeek Blade M-ATX airflow case lists:





Maximum GPU clearance: 305 mm



Case dimensions: 348 × 218 × 400 mm



CPU cooler clearance: 180 mm



Four PCIe slots



Two front 120 mm fan positions



Two top, two bottom, and one rear 120 mm fan position

NVIDIA lists the GeForce RTX 4090 Founders Edition at 304 mm long, 137 mm wide, three slots thick, and 450 W total graphics power on its official GeForce comparison page.

The length equation is brutal:

305 mm case clearance − 304 mm GPU length = 1 mm gross margin

One millimeter lies.

It does not pay for sheet-metal tolerance, card angle during installation, a protruding internal fastener, vibration, front-cable routing, or the simple fact that human hands need room to release a PCIe latch.

On published length alone, the combination appears to fit. Under my standard, it fails.

And this is before discussing the 137 mm card width, the power connector, or airflow around a 450 W graphics card. NVIDIA’s installation guidance also tells builders to reserve extra room around high-end cards for airflow rather than pressing the cooler against adjacent hardware.

“Fits” is not the same as “belongs.”

Case 2: AceGeek Aquarium M345 and a 240 mm AIO

The AceGeek Aquarium M345 lists:





Maximum GPU clearance: 340 mm



Chassis dimensions: 358 × 275 × 360 mm



Top 240 mm radiator support



Side 240 mm radiator support



Two top, two side, two bottom, and one rear 120 mm fan positions



Maximum CPU cooler height: 155 mm

A 304 mm RTX 4090 or RTX 5090 Founders Edition produces this gross length margin:

340 mm − 304 mm = 36 mm

Better.

But do not subtract a 63 mm radiator stack automatically. The Aquarium M345 mounts its radiators at the top or side, not necessarily directly in front of the GPU nose. The correct question is whether the installed radiator, fans, fittings, or tubes physically overlap the card’s length, width, or thickness envelope.

This is why photographs are not enough. You need the mounting drawing or a ruler inside the actual chassis.

A top radiator may leave all 340 mm of card length intact while colliding with tall RAM, motherboard VRM heatsinks, or an EPS cable. A side radiator may preserve GPU length but restrict fresh air reaching the card.

Same hardware. Different collision.

Case 3: AceGeek Horizon, a Side-Mounted 360 mm AIO, and an RTX 5090

The AceGeek Horizon three-sided glass case lists:





Maximum GPU clearance: 410 mm



Side 360 mm AIO support



Three side 120 mm fan positions



Three bottom 120 mm fan positions



One rear 120 mm fan position



Maximum CPU cooler height: 165 mm



ATX, Micro-ATX, and Mini-ITX motherboard support

NVIDIA’s current comparison data lists the RTX 5090 Founders Edition at 304 mm long, 137 mm wide, two slots, 575 W total graphics power, and a 1,000 W required system power rating for its reference configuration.

The gross length margin is generous:

410 mm − 304 mm = 106 mm

So we are finished, right?

Not quite.

A side-mounted 360 mm AIO does not necessarily reduce that 106 mm length margin. Instead, it can compete with GPU width, tube-bend radius, side intake volume, fan wiring, and the space used to route a high-current PCIe Gen 5 power cable.

The Horizon has the better paper margin. It still needs a three-axis check.

And because a 575 W GPU can dump substantial heat into the case, I would prioritize the bottom intake path. Filling the side with a radiator and then blocking bottom airflow with cables would waste the chassis’s strongest thermal advantage.



Front Radiator GPU Clearance: The Honest Calculation

Imagine a chassis with a published GPU clearance of 340 mm.

You plan to install:





A 30 mm front radiator



Standard 25 mm fans



A 5 mm internal mounting bracket



A 10 mm service margin

The calculation becomes:

340 − 30 − 25 − 5 − 10 = 270 mm

Your practical GPU length limit is 270 mm, not 340 mm.

Now reverse the fan placement and mount the fans outside the main chassis cavity, behind a front panel that provides sufficient depth. If the fans no longer enter the card’s length axis, the equation changes:

340 − 30 − 5 − 10 = 295 mm

That is a 25 mm gain without changing the radiator.

This is why “supports a 360 mm radiator” tells me almost nothing about GPU compatibility. I need radiator location, fan location, internal rail position, fitting orientation, and actual overlap with the card.

My Five-Line Worksheet

Use these figures before buying anything:

Case published GPU clearance: ______ mm

Radiator intrusion into GPU axis: ______ mm

Fan/bracket intrusion into GPU axis: ______ mm

Exact GPU length: ______ mm

Remaining service margin: ______ mm

Then calculate:

Remaining margin = Case clearance − all intrusions − GPU length

My verdict:





20 mm or more: Comfortable length margin



10–19 mm: Usually workable after checking cables and airflow



5–9 mm: Risky; inspect exact mounting geometry



1–4 mm: Paper compatibility only



0 mm or less: Does not fit in that configuration

These are practical thresholds, not legal standards. I use them because components flex, product tolerances exist, and future upgrades rarely become smaller on command.

GPU Width and Power-Cable Space Are Safety Measurements

Builders love measuring card length because it is easy.

The power cable is where judgment disappears.

NVIDIA’s current RTX 5090 installation guidance tells users to plan 36 mm of additional space for power cables beyond the card body. That space belongs on the width axis, between the card connector and the side panel. It cannot be “borrowed” from unused length near the front of the case.

The safety record gives this issue teeth.

On February 8, 2024, the U.S. Consumer Product Safety Commission announced the recall of approximately 25,300 CableMod 12VHPWR angled adapters. The official CPSC recall notice reported:





272 reports of adapters becoming loose, overheating, or melting into GPUs



At least $74,500 in property-damage claims



Products sold for approximately $40



A stated fire and burn hazard



Immediate stop-use instructions

No injuries were reported, but the lesson is ugly enough.

Cable clearance is not cable management.

It is electrical fitment.

I would reject any chassis combination that requires the side panel to press the GPU power cable inward, forces a sharp bend immediately beside the connector, or depends on an improvised adapter merely because the card width was ignored during planning.

How to Measure GPU Clearance Before Buying

1. Use the Exact Graphics Card SKU

Do not search only for “RTX 5090 dimensions” or “RX 7900 XTX dimensions.” Board-partner models from ASUS, MSI, Gigabyte, Zotac, Sapphire, PowerColor, and PNY can use longer and thicker coolers than reference designs.

Record:





Overall card length



Overall card width



Cooler thickness in millimeters



Number of occupied slots



Power-connector location



Required connector type



Recommended power supply

The GPU chip name is not the physical product.

2. Draw the Cooling Layout Before Ordering It

Place the radiator on paper first.

Front, top, side, bottom, and rear mounts create different collisions. The AceGeek Aqua360 360 mm AIO, for example, should be matched against the case’s specific radiator position rather than treated as a generic “360 mm cooler.”

Write down the complete stack:

Radiator + fans + bracket + gasket + screw-head allowance

Do not use radiator thickness alone.

3. Measure the Narrowest Point

The widest-looking part of the case is often irrelevant.

Cable covers, folded sheet-metal lips, front-panel connectors, fan rails, reservoirs, drive cages, and internal decorative panels may create a narrower path near the GPU nose.

The card must pass through the installation opening and occupy the final position. Those are sometimes different measurements.

4. Check GPU Thickness Against Intake Space

A nominal three-slot card can sit extremely close to bottom fans, a PSU shroud, or a glass panel.

I want a visible intake gap.

The card may physically install with 2 mm below its cooler, but the fans will be fighting a high-resistance inlet. Temperatures rise. Fan speed rises. Noise follows.

Small form factor PC cases are not automatically bad. They are simply less forgiving.

5. Simulate Removal

Can you reach the PCIe latch?

Can you remove the card without pulling the radiator?

Can the power connector be released without levering it against the side panel?

Can the front fans be replaced without draining a custom loop?

Serviceability is part of compatibility. A computer is not a sealed sculpture.

The Fitment Rules I Refuse to Break

I do not approve a tight chassis design unless it passes all five tests:





Positive length margin: The installed GPU remains shorter than the usable clearance after every real intrusion is subtracted.



Relaxed power routing: The connector seats fully and the cable reaches the side panel without being crushed or sharply folded at the plug.



Open intake area: The GPU cooler has enough space to draw air without sitting directly against fans, glass, or a PSU chamber.



Accessible maintenance: The GPU, radiator fans, and power cable can be removed without dismantling unrelated hardware.



Upgrade allowance: The build retains at least some room for a future card, thicker cable, or revised cooling layout.

Barely compatible?

Then it is not compatible enough.

The industry tends to reward the smallest-looking case that can display the largest-looking GPU. I prefer the chassis that lets the hardware run, breathe, and come apart without swearing.

FAQs

How do I calculate GPU clearance with a front radiator?

GPU clearance with a front radiator is the case’s published maximum card length minus every item that physically enters the graphics card’s length axis, including radiator thickness, fan thickness, mounting rails, reservoirs, cable covers, and a practical service margin of at least 10 mm.

For example, a 340 mm case with a 30 mm radiator, 25 mm fans, a 5 mm bracket, and a 10 mm reserve has a practical card-length limit of 270 mm. Use the assembled stack thickness, not the radiator specification alone.

Will my GPU fit with a front radiator?

A GPU fits with a front radiator only when its exact length is shorter than the chassis’s remaining length after the complete radiator-and-fan stack, brackets, reservoirs, and reserve margin are subtracted, while its width, slot thickness, power connector, and airflow path also clear the assembled case.

Do not rely on the case’s original maximum GPU figure. That number may describe an empty front mount. Confirm whether fans sit inside or outside the card chamber and whether the radiator fittings overlap the GPU nose.

How much extra GPU clearance should I leave?

Extra GPU clearance is the unused physical space remaining after the card, cooling hardware, brackets, and other obstructions are installed; I recommend at least 10 mm of length margin for normal assembly, while 20 mm or more provides a safer allowance for tolerances, maintenance, vibration, and future upgrades.

Length margin does not replace side-panel cable clearance. A card can have 40 mm free at its nose and still fail because its power connector is pressed against the glass.

Does a top-mounted radiator reduce GPU clearance?

A top-mounted radiator usually does not reduce GPU length because it occupies the vertical area above the motherboard, but it can reduce clearance for RAM, motherboard VRM heatsinks, EPS power cables, radiator fittings, and tall pump components when the radiator-and-fan stack extends too far downward.

Measure the distance between the top mounting rail and the highest motherboard component. A 38 mm radiator with 25 mm fans creates a 63 mm stack, which can become the deciding number even when the GPU length remains unchanged.

Is GPU length the only measurement needed for PC case compatibility?

GPU length is only one part of PC case compatibility; builders must also verify card width, cooler thickness, occupied PCIe slots, side-panel power-cable space, intake clearance, radiator overlap, riser position, PSU cabling, and whether the card can be inserted, secured, powered, cooled, and later removed.

A 304 mm card may fit a 340 mm chassis and still be unusable because it blocks bottom fans, presses its connector against the side panel, or collides with a side radiator.

Calculate Before You Commit

Open the exact case specification. Open the exact GPU specification. Add the complete radiator-and-fan stack.

Then calculate all three axes.

Use AceGeek’s PC case range to compare published GPU, radiator, fan, and motherboard support, but treat those figures as the beginning of the decision—not the verdict.

Write down the numbers before placing the order. Reject combinations with forced cables, blocked intakes, or single-digit millimeter margins. And when two cases both hold the same hardware, choose the one that leaves room for air, hands, and the next upgrade.

Measure twice.

Build once.

Calculate real GPU clearance after radiator, fan, cable, and bracket losses using fitment formulas, chassis examples, and safety data for tight PC builds.

How to Choose a PC Case for Large Triple-Fan GPUs

I have watched too many people buy a huge graphics card, glance at a marketing photo, see a clearance number that looks generous, and still end up with a card that technically enters the chassis but cooks itself, crushes the 12V-2x6 cable, blocks bottom airflow, or hangs off the PCIe slot like a bent steel bridge.

And then they call that “compatible”?

 is not just a longer box. In practice, it is a chassis with enough real room for the card body, the front fan or radiator stack, the power cable bend, the slot thickness, and one more thing that lazy spec sheets hide: breathing room.

Here is the number that should snap people awake. On its official page, NVIDIA lists the GeForce RTX 4090 Founders Edition at

 total graphics power. On the newer side of the market, NVIDIA’s RTX 5090 guidance still tells builders to reserve

one additional slot of open space in front of the fans

 for better airflow. That is not a style note. That is the manufacturer telling you the cooler needs room to inhale.

So my rule is blunt. If your triple-fan card is around

, I do not believe a case is safe just because the product page says “340 mm GPU clearance.” I want margin. I want fan room. I want cable room. I want the card to live there, not merely squeeze there.

, not just length. Second, I look at the case’s

 and ask whether that figure was measured with front fans only, or with a front radiator installed too. Third, I account for cable bend space, especially with modern high-power connectors. Fourth, I check how many slots the card really eats once the backplate, shroud, and anti-sag hardware are in play.

That is why a plain “PC case GPU compatibility” label tells me almost nothing by itself.

I do not trust brochure language. I trust subtraction.

If a chassis advertises 360 mm of GPU clearance and you plan to install a front radiator and fans, that published number stops being the working number. It becomes the starting number. Front-mounted cooling hardware can steal dozens of millimeters, and that is before you factor in cable bend and any airflow gap you should leave around the intake side of the card.

Here is the decision table I use before I recommend any

What to verifyGood answerRed flagMax GPU length case numberAt least 30-50 mm more than your GPU length for high-end cardsCase clearance matches GPU length almost exactlyGPU thickness / slot useCase gives room for a true 3-slot or 3.5-slot card without crowding bottom fansSpec sheet only mentions “7 slots” with no usable spacing logicPower cable bendSide panel closes without pressing into the 12V-2x6 or adapterCable must fold sharply against glass or steelFront cooling hardwareClearance is confirmed with your planned radiator and fan stackClearance only works in the bare-case configurationAir path to GPU fansFront, side, or bottom intake can feed the card directlyDecorative glass dominates intake areaAnti-sag supportThere is physical room for a bracket or pillarBottom fan layout leaves no room to support the card

That table looks obvious. It is not. Most buyers skip half of it, then act shocked when a “best PC case for long graphics cards” shortlist turns into a thermal penalty box.

Airflow Kills Bad Choices Faster Than Length Does

That is my rude opinion, and I stand by it, because the moment you move into 450 W to 575 W-class graphics cards, the old habit of buying around glass, RGB, or vibes starts looking childish. AceGeek’s own

 gets the first principle right: the case is about motherboard fit, cooling support, and GPU clearance, not just external dimensions. Their

 also makes an uncomfortable point many brands would rather blur: dual-glass layouts can restrict airflow and often need more fan planning than buyers expect.

I will go further. If your card is long, thick, and expensive, you should favor an

 builds over a visual-first chassis unless the visual-first chassis has unusually smart side or bottom intake. Why? Because once the GPU cooler starts recirculating its own waste heat, your card is no longer fighting only load. It is fighting the case.

And yes, enclosure mistakes can become more than an annoyance. The

U.S. Consumer Product Safety Commission recall for NZXT’s H1 case

11 reports of circuit boards overheating or catching fire worldwide

, including six in the U.S. I am not claiming every clearance mistake becomes a recall. I am saying the “the case is just a shell” argument has always been nonsense.

There is also a money angle, and it is not pretty. In February 2026, Reuters reported that NVIDIA expected a gaming-chip shortage to last until year-end, which is exactly the kind of supply pressure that makes bad buying decisions more expensive, not less. When GPUs are harder to replace, I have even less patience for sloppy case planning.

What AceGeek’s Current Lineup Tells Me About Real Headroom

Some cases talk. Some cases publish numbers.

From AceGeek’s current product pages, the

. That spread tells you almost everything you need to know about who each chassis is really for.

Here is my read, and I am not going to sugarcoat it.

If You Run a Huge Triple-Fan Card, Buy Margin

 is the kind of number I like for oversized boards because

 gives you room to make mistakes without instantly paying for them. The

 is still comfortable for many long cards, especially if your cooling layout is sensible. The

 stays in the safe zone for a lot of 304 mm-class boards too.

If You Build Small, Stop Pretending Every Card Will Fit

 GPU clearance, and that number is not fake, but it is the kind of number I treat with suspicion for anyone using a very thick 3-slot or 3.5-slot card, front-mounted cooling hardware, or stiff power leads. On paper, a lot of large cards may sneak under that line. In a finished system, that is where builds start getting dumb.

Motherboard Size Still Matters More Than People Admit

A big GPU problem often starts as a board-planning problem. If you pick the motherboard badly, you can corner yourself into a smaller chassis class and then spend the rest of the build compensating for a decision that should have been solved first. That is why AceGeek’s

 belongs in this conversation. Case buying begins with platform geometry, not aesthetics.

They guess because the industry keeps selling the fantasy that a “max GPU length case” figure is a complete answer, when it is really one line in a larger fit equation that also includes slot thickness, intake path, cable bend behavior, PSU shroud layout, and support hardware geometry.

 has to account for more than the rectangular body. Backplates, shrouds, adapters, and side-panel pressure all matter. I have seen builds where the GPU body fit and the power connector did not. That is not compatibility. That is denial.

 says the quiet part out loud: the right bracket depends on case clearance, airflow lane, and contact point under the card. I agree. A bad bracket can block bottom fans or load the card in the wrong place, which means your “fix” becomes a second mistake.

3. They confuse “fits” with “runs well”

A GPU that sits 2 mm away from a fan frame or glass panel may fit. It may even boot. But under sustained gaming, rendering, or AI inference, that same build can become louder, hotter, and uglier than the buyer expected. I care less about whether the card enters the case than whether the cooler can breathe once it is inside.

Tempered glass is fine. Blind faith is not.

If the front or side intake path is decorative first and functional second, I want proof that the fan plan compensates for it. Otherwise, I keep moving.

I would check the exact GPU model page, confirm length, width, thickness, and connector requirements, then compare that against the case’s published clearance and fan support. After that, I would read the site’s own

, sanity-check any GPU support plan with the

, and only then choose between a compact build and a forgiving one. That is boring advice. It also saves money.

If you want the blunt version, here it is: for modern high-end boards, I would rather buy slightly too much case than exactly enough. Extra clearance is cheap. Rebuilding a bad decision is not.

How do I know if a GPU will fit in a case?

A GPU fits in a case only when the chassis provides enough measured room for the graphics card’s full dimensions, slot thickness, front-mounted cooling hardware, power-cable bend, and a usable airflow gap around the cooler, rather than merely matching the card’s advertised length on a spec sheet.

Start with the exact board model, not the GPU family name. An RTX 4090 from one vendor may be much longer or thicker than another. Then compare that model against the case’s published max GPU clearance and reduce your confidence if the system uses front radiators, thick fan stacks, or tight side panels.

GPU clearance in a PC case is the maximum physical length the chassis can accept for a graphics card under a defined configuration, but in the real world it is only a baseline number because fans, radiators, cables, and support brackets can reduce the usable space dramatically.

That is why I never stop at the published figure. I treat clearance as the opening bid, then I subtract for the cooling layout and check whether the card still has air around it. If not, I move to a bigger chassis.

What is the best PC case for long graphics cards?

The best PC case for long graphics cards is the one that combines generous GPU clearance, direct intake airflow, workable cable routing, and room for anti-sag support, because length alone does not protect temperatures, connector health, or the mechanical load modern heavy boards put on the PCIe area.

On AceGeek’s current pages, the Photon at 420 mm, Horizon at 410 mm, and Echo at 405 mm look materially safer for oversized triple-fan cards than smaller 340 mm-class options when the buyer wants more margin.

Is a 3-slot graphics card harder to fit than a long GPU?

A 3-slot graphics card is harder to fit than many buyers expect because thickness affects bottom-fan access, side-panel pressure, neighboring slot use, and airflow around the cooler, which means a card can clear the front of the case and still be a poor fit once the rest of the system is assembled.

This is where “case for 3-slot graphics card” matters as a separate buying question, not a side note. Thickness changes the entire interior layout. I have seen thick cards ruin otherwise sensible builds more often than merely long ones.

Do glass-front cases work for large triple-fan GPUs?

Glass-front cases can work for large triple-fan GPUs only when the case still provides enough side, bottom, or alternate intake to feed the graphics card properly, because a visually open chamber is not the same thing as a thermally open chamber once the GPU starts dumping hundreds of watts into it.

That is why I tell readers to treat glass-heavy cases as airflow projects, not easy defaults. If the intake plan is vague, the case is wrong for a big card, no matter how good it looks on a desk.

Pull up your exact GPU model page, write down the card’s

length, width, thickness, and power connector needs

, then compare those numbers against the case you want, not the case you hope will work. If you are shopping inside AceGeek’s catalog, start with the

 for more forgiving headroom, and cross-check your plan with the site’s

. I would rather see you buy one size smarter than spend next weekend rebuilding a bad idea.

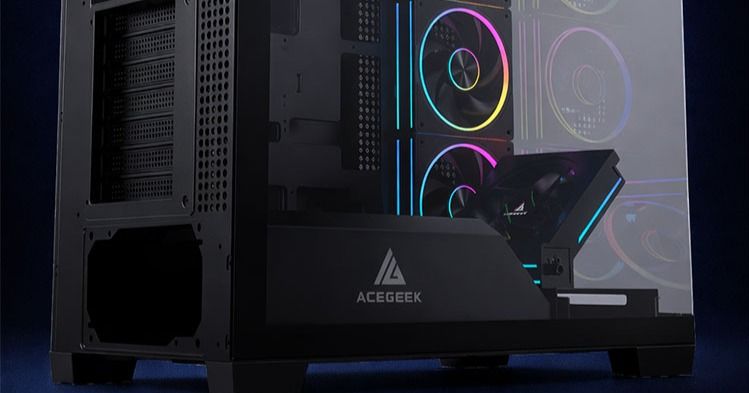

How to Choose a PC Case for Large Triple-Fan GPUs

Most builds lie.

I have watched too many people buy a huge graphics card, glance at a marketing photo, see a clearance number that looks generous, and still end up with a card that technically enters the chassis but cooks itself, crushes the 12V-2x6 cable, blocks bottom airflow, or hangs off the PCIe slot like a bent steel bridge.

And then they call that “compatible”?

Stop Trusting the Clearance Number Alone

A PC case for large GPUs is not just a longer box. In practice, it is a chassis with enough real room for the card body, the front fan or radiator stack, the power cable bend, the slot thickness, and one more thing that lazy spec sheets hide: breathing room.

Here is the number that should snap people awake. On its official page, NVIDIA lists the GeForce RTX 4090 Founders Edition at 304 mm long, 137 mm wide, 61 mm thick, with 450 W total graphics power. On the newer side of the market, NVIDIA’s RTX 5090 guidance still tells builders to reserve 304 mm x 137 mm x 61 mm class clearance and even recommends one additional slot of open space in front of the fans for better airflow. That is not a style note. That is the manufacturer telling you the cooler needs room to inhale.

So my rule is blunt. If your triple-fan card is around 300 to 340 mm, I do not believe a case is safe just because the product page says “340 mm GPU clearance.” I want margin. I want fan room. I want cable room. I want the card to live there, not merely squeeze there.

The Fit Test I Actually Use

I keep it simple.

First, I check the GPU’s published length, width, and thickness, not just length. Second, I look at the case’s max GPU clearance and ask whether that figure was measured with front fans only, or with a front radiator installed too. Third, I account for cable bend space, especially with modern high-power connectors. Fourth, I check how many slots the card really eats once the backplate, shroud, and anti-sag hardware are in play.

That is why a plain “PC case GPU compatibility” label tells me almost nothing by itself.

The Math the Box Usually Hides

I do not trust brochure language. I trust subtraction.

If a chassis advertises 360 mm of GPU clearance and you plan to install a front radiator and fans, that published number stops being the working number. It becomes the starting number. Front-mounted cooling hardware can steal dozens of millimeters, and that is before you factor in cable bend and any airflow gap you should leave around the intake side of the card.

Here is the decision table I use before I recommend any triple-fan GPU case to anyone.

What to verifyGood answerRed flagMax GPU length case numberAt least 30-50 mm more than your GPU length for high-end cardsCase clearance matches GPU length almost exactlyGPU thickness / slot useCase gives room for a true 3-slot or 3.5-slot card without crowding bottom fansSpec sheet only mentions “7 slots” with no usable spacing logicPower cable bendSide panel closes without pressing into the 12V-2x6 or adapterCable must fold sharply against glass or steelFront cooling hardwareClearance is confirmed with your planned radiator and fan stackClearance only works in the bare-case configurationAir path to GPU fansFront, side, or bottom intake can feed the card directlyDecorative glass dominates intake areaAnti-sag supportThere is physical room for a bracket or pillarBottom fan layout leaves no room to support the card

That table looks obvious. It is not. Most buyers skip half of it, then act shocked when a “best PC case for long graphics cards” shortlist turns into a thermal penalty box.

Airflow Kills Bad Choices Faster Than Length Does

Pretty cases fail.

That is my rude opinion, and I stand by it, because the moment you move into 450 W to 575 W-class graphics cards, the old habit of buying around glass, RGB, or vibes starts looking childish. AceGeek’s own PC case size and clearance guide gets the first principle right: the case is about motherboard fit, cooling support, and GPU clearance, not just external dimensions. Their ocean view vs fish tank case comparison also makes an uncomfortable point many brands would rather blur: dual-glass layouts can restrict airflow and often need more fan planning than buyers expect.

I will go further. If your card is long, thick, and expensive, you should favor an airflow case for large GPU builds over a visual-first chassis unless the visual-first chassis has unusually smart side or bottom intake. Why? Because once the GPU cooler starts recirculating its own waste heat, your card is no longer fighting only load. It is fighting the case.

And yes, enclosure mistakes can become more than an annoyance. The U.S. Consumer Product Safety Commission recall for NZXT’s H1 case documented 11 reports of circuit boards overheating or catching fire worldwide, including six in the U.S. I am not claiming every clearance mistake becomes a recall. I am saying the “the case is just a shell” argument has always been nonsense.

There is also a money angle, and it is not pretty. In February 2026, Reuters reported that NVIDIA expected a gaming-chip shortage to last until year-end, which is exactly the kind of supply pressure that makes bad buying decisions more expensive, not less. When GPUs are harder to replace, I have even less patience for sloppy case planning.



What AceGeek’s Current Lineup Tells Me About Real Headroom

Some cases talk. Some cases publish numbers.

From AceGeek’s current product pages, the Photon E-ATX case lists 420 mm max GPU clearance, the Horizon lists 410 mm, the Echo lists 405 mm, and the smaller Vision M352 comes in at 340 mm. That spread tells you almost everything you need to know about who each chassis is really for.

Here is my read, and I am not going to sugarcoat it.

If You Run a Huge Triple-Fan Card, Buy Margin

The Photon E-ATX case is the kind of number I like for oversized boards because 420 mm gives you room to make mistakes without instantly paying for them. The Horizon at 410 mm is still comfortable for many long cards, especially if your cooling layout is sensible. The Echo at 405 mm stays in the safe zone for a lot of 304 mm-class boards too.

If You Build Small, Stop Pretending Every Card Will Fit

The Vision M352 lists 340 mm GPU clearance, and that number is not fake, but it is the kind of number I treat with suspicion for anyone using a very thick 3-slot or 3.5-slot card, front-mounted cooling hardware, or stiff power leads. On paper, a lot of large cards may sneak under that line. In a finished system, that is where builds start getting dumb.

Motherboard Size Still Matters More Than People Admit

A big GPU problem often starts as a board-planning problem. If you pick the motherboard badly, you can corner yourself into a smaller chassis class and then spend the rest of the build compensating for a decision that should have been solved first. That is why AceGeek’s motherboard form factor guide belongs in this conversation. Case buying begins with platform geometry, not aesthetics.

The Four Mistakes I See Every Week

Three-word truth: buyers guess.

They guess because the industry keeps selling the fantasy that a “max GPU length case” figure is a complete answer, when it is really one line in a larger fit equation that also includes slot thickness, intake path, cable bend behavior, PSU shroud layout, and support hardware geometry.

Why do we keep pretending otherwise?

1. They measure only the card body

A case for 3-slot graphics card has to account for more than the rectangular body. Backplates, shrouds, adapters, and side-panel pressure all matter. I have seen builds where the GPU body fit and the power connector did not. That is not compatibility. That is denial.

2. They forget the anti-sag plan

Heavy cards need support. Period.

AceGeek’s GPU support bracket guide says the quiet part out loud: the right bracket depends on case clearance, airflow lane, and contact point under the card. I agree. A bad bracket can block bottom fans or load the card in the wrong place, which means your “fix” becomes a second mistake.

3. They confuse “fits” with “runs well”

A GPU that sits 2 mm away from a fan frame or glass panel may fit. It may even boot. But under sustained gaming, rendering, or AI inference, that same build can become louder, hotter, and uglier than the buyer expected. I care less about whether the card enters the case than whether the cooler can breathe once it is inside.

4. They buy around photos, not airflow

Tempered glass is fine. Blind faith is not.

If the front or side intake path is decorative first and functional second, I want proof that the fan plan compensates for it. Otherwise, I keep moving.

What I Would Do Before Buying

I would slow down.

I would check the exact GPU model page, confirm length, width, thickness, and connector requirements, then compare that against the case’s published clearance and fan support. After that, I would read the site’s own PC case size and clearance guide, sanity-check any GPU support plan with the anti-sag bracket guide, and only then choose between a compact build and a forgiving one. That is boring advice. It also saves money.

If you want the blunt version, here it is: for modern high-end boards, I would rather buy slightly too much case than exactly enough. Extra clearance is cheap. Rebuilding a bad decision is not.

FAQs

How do I know if a GPU will fit in a case?

A GPU fits in a case only when the chassis provides enough measured room for the graphics card’s full dimensions, slot thickness, front-mounted cooling hardware, power-cable bend, and a usable airflow gap around the cooler, rather than merely matching the card’s advertised length on a spec sheet.

Start with the exact board model, not the GPU family name. An RTX 4090 from one vendor may be much longer or thicker than another. Then compare that model against the case’s published max GPU clearance and reduce your confidence if the system uses front radiators, thick fan stacks, or tight side panels.

What is GPU clearance in a PC case?

GPU clearance in a PC case is the maximum physical length the chassis can accept for a graphics card under a defined configuration, but in the real world it is only a baseline number because fans, radiators, cables, and support brackets can reduce the usable space dramatically.

That is why I never stop at the published figure. I treat clearance as the opening bid, then I subtract for the cooling layout and check whether the card still has air around it. If not, I move to a bigger chassis.

What is the best PC case for long graphics cards?

The best PC case for long graphics cards is the one that combines generous GPU clearance, direct intake airflow, workable cable routing, and room for anti-sag support, because length alone does not protect temperatures, connector health, or the mechanical load modern heavy boards put on the PCIe area.

On AceGeek’s current pages, the Photon at 420 mm, Horizon at 410 mm, and Echo at 405 mm look materially safer for oversized triple-fan cards than smaller 340 mm-class options when the buyer wants more margin.

Is a 3-slot graphics card harder to fit than a long GPU?

A 3-slot graphics card is harder to fit than many buyers expect because thickness affects bottom-fan access, side-panel pressure, neighboring slot use, and airflow around the cooler, which means a card can clear the front of the case and still be a poor fit once the rest of the system is assembled.

This is where “case for 3-slot graphics card” matters as a separate buying question, not a side note. Thickness changes the entire interior layout. I have seen thick cards ruin otherwise sensible builds more often than merely long ones.

Do glass-front cases work for large triple-fan GPUs?

Glass-front cases can work for large triple-fan GPUs only when the case still provides enough side, bottom, or alternate intake to feed the graphics card properly, because a visually open chamber is not the same thing as a thermally open chamber once the GPU starts dumping hundreds of watts into it.

That is why I tell readers to treat glass-heavy cases as airflow projects, not easy defaults. If the intake plan is vague, the case is wrong for a big card, no matter how good it looks on a desk.

Your Next Move

Do this tonight.

Pull up your exact GPU model page, write down the card’s length, width, thickness, and power connector needs, then compare those numbers against the case you want, not the case you hope will work. If you are shopping inside AceGeek’s catalog, start with the Photon, Horizon, or Echo for more forgiving headroom, and cross-check your plan with the site’s PC case size guide and GPU support bracket guide. I would rather see you buy one size smarter than spend next weekend rebuilding a bad idea.

A hard-nosed guide to choosing a PC case for large triple-fan GPUs, with real clearance math, airflow warnings, and internal AceGeek product examples that separate workable builds from expensive mistakes.

Acegeek offers high-quality computer cases, cooling solutions, power supplies, and peripherals. Explore our website for top-notch products & accessories.

Blog

Currently Browsing：GPU clearance
